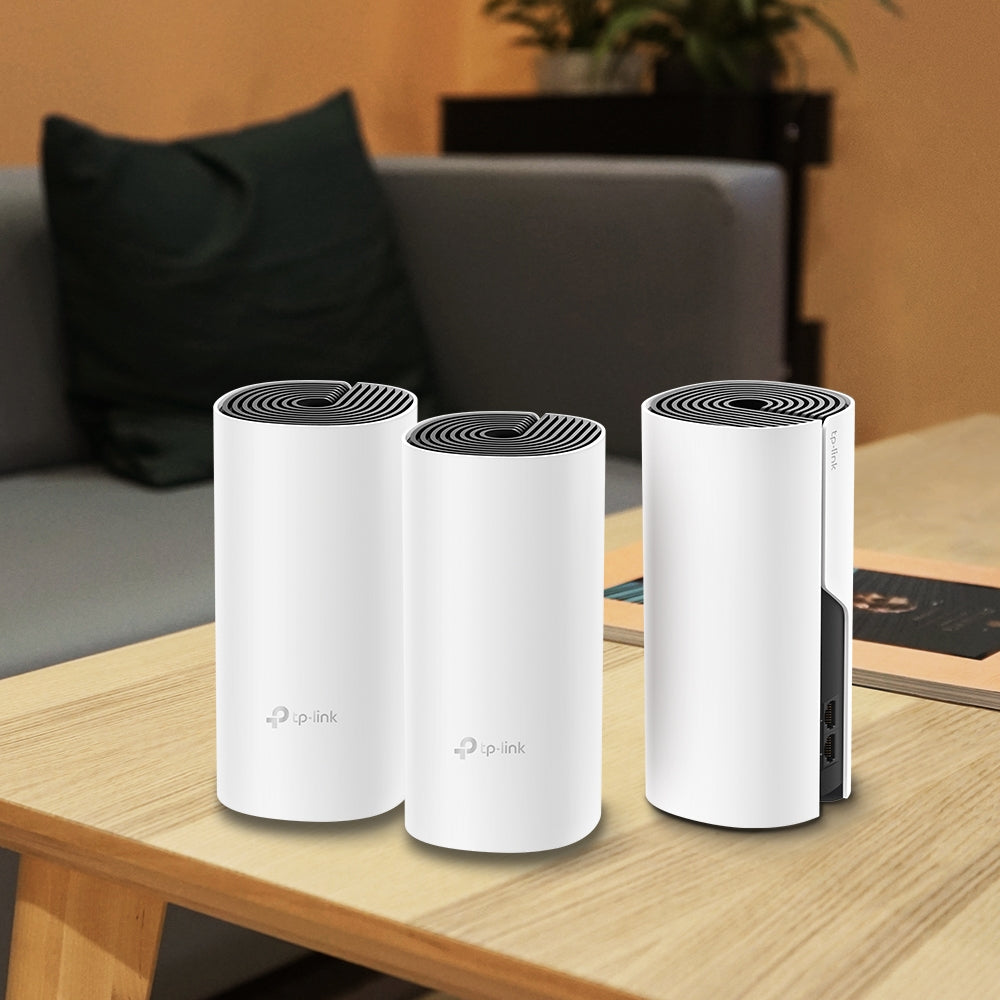

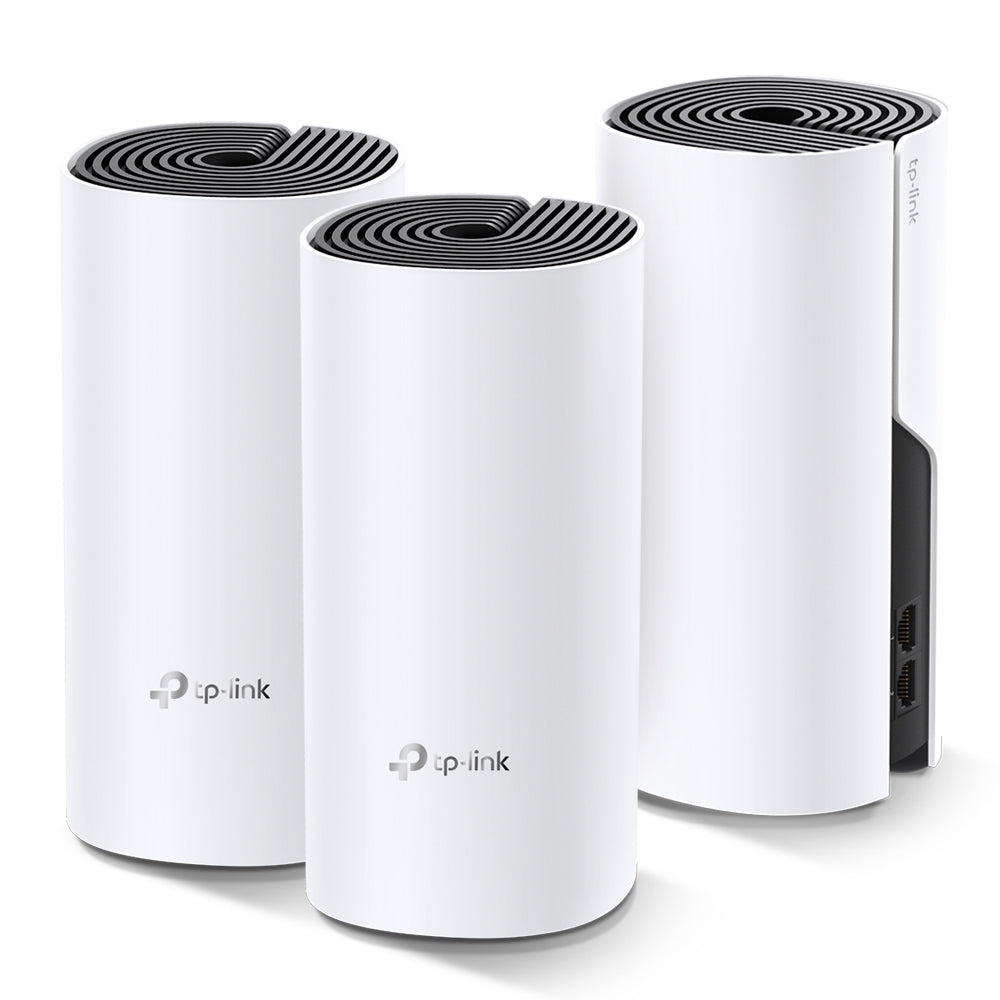

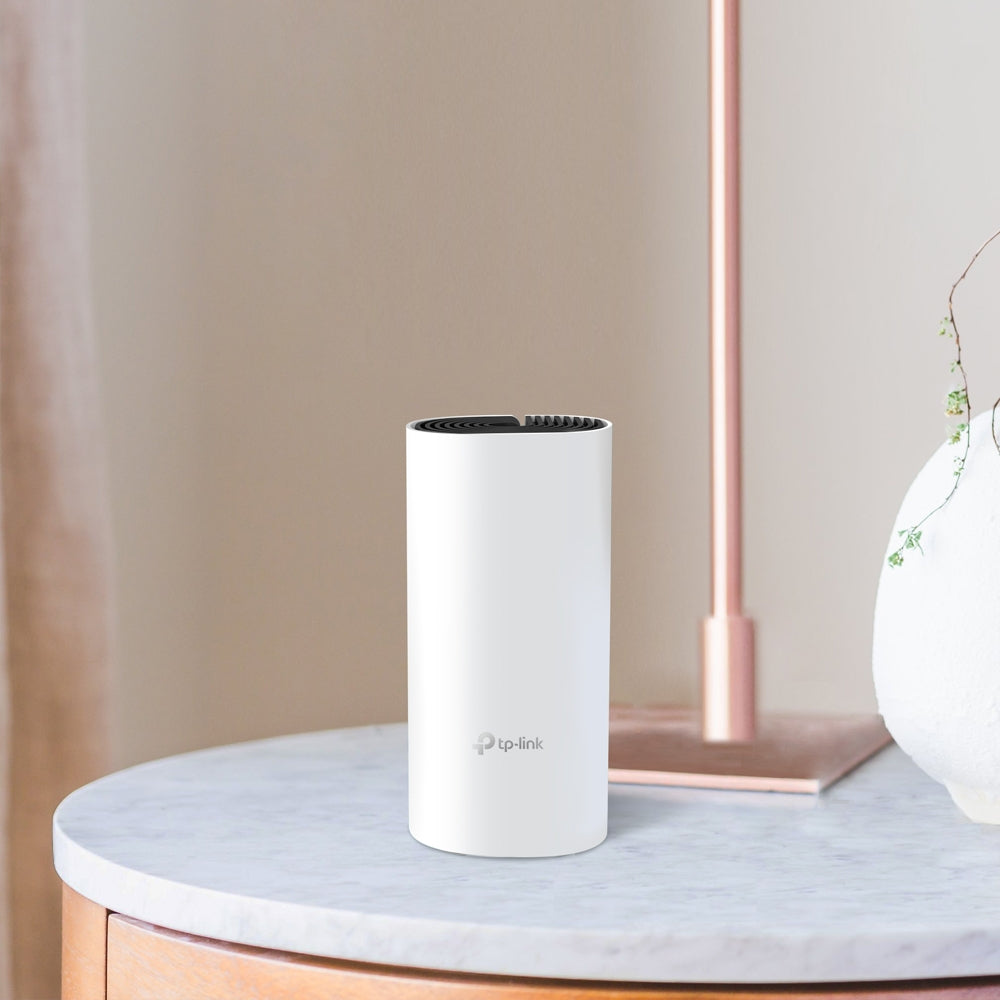

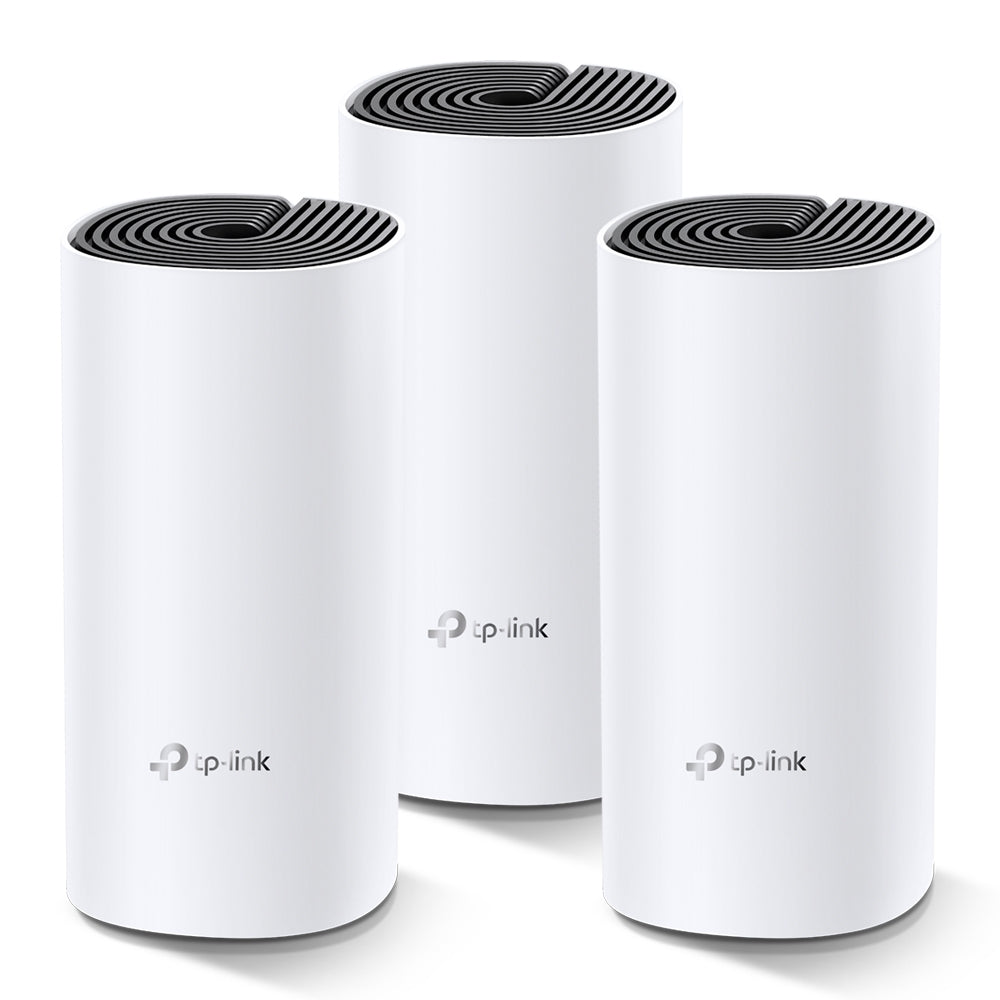

TP-Link Deco M4 AC1200 Whole Home Mesh Wi-Fi System

The TP-Link Deco M4 AC1200 Whole Home Mesh Wi-Fi System uses TP-Link Mesh technology to cover your entire home in powerful Wi-Fi. Multiple units seamlessly work together to create a home network like nothing you’ve ever experienced.

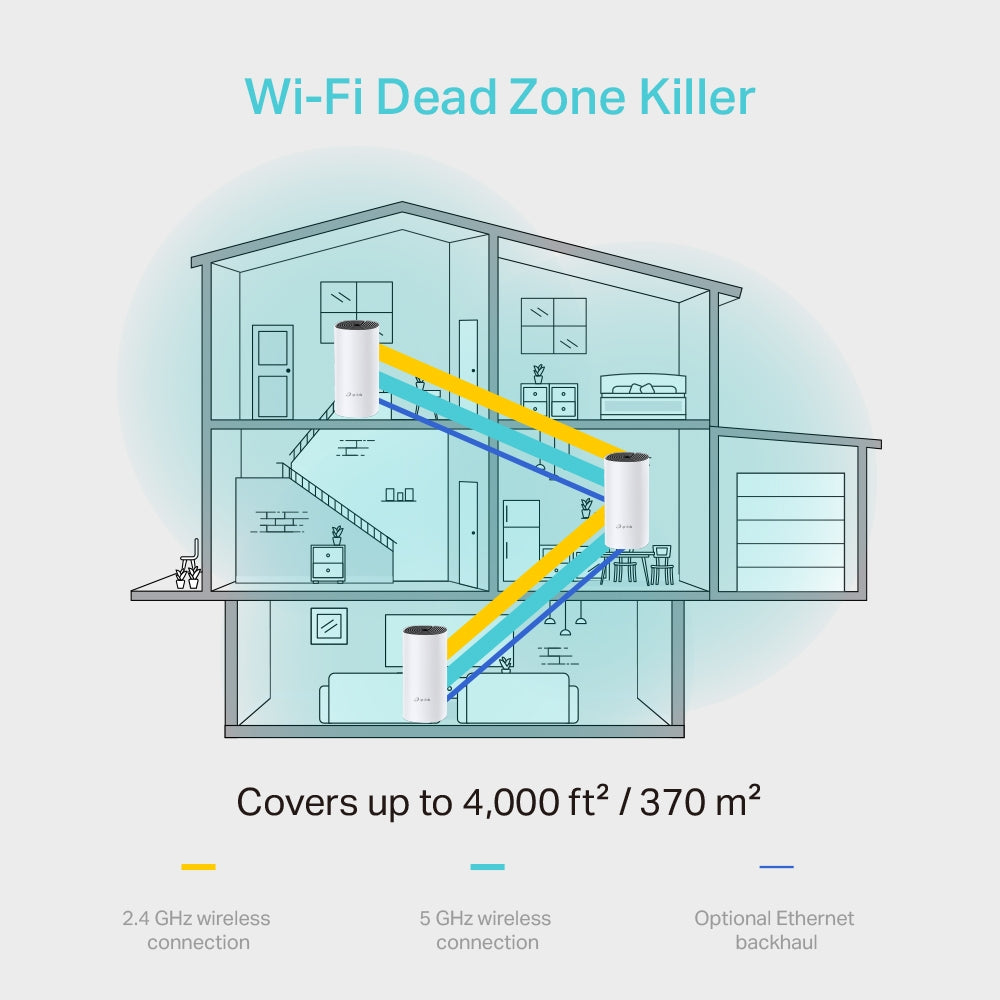

Deco M4 is the simplest way to guarantee a strong Wi-Fi signal in every corner of your home up to 4000 square feet. Wireless connections and optional Ethernet backhaul work together to link Deco units, providing even faster network speeds and truly seamless coverage.

Want more coverage? Simply add another Deco.

TP-Link Mesh means Deco units work together to form one unified network. Your phone or tablet automatically connects to the fastest Deco as you move through your home, creating a truly seamless Wi-Fi experience.

Deco products are aimed to dramatically improve capacity and efficiency in traffic-dense environments. No matter how many screens or devices are on at once, everyone is able to enjoy a more efficient network that loads faster without dragging down performance.

Flexible and multifunctional, the Deco M4 includes a variety of features allowing it to serve as a router or access point. Just choose the mode for your actual network demands and experience the maximum wireless flexibility.

Simple, intuitive parental controls make it easy to keep your children safe while they’re online.

Deco M4 is compatible with every other Deco model to form a Mesh network. Expand Mesh Wi-Fi coverage anytime by simply adding more Decos.

Specifications

WIRELESS

Standards and Protocols:

Wi-Fi 5

IEEE 802.11ac/n/a 5 GHz

IEEE 802.11n/b/g 2.4 GHz

WiFi Speeds:

AC1200

5 GHz: 867 Mbps (802.11ac)

2.4 GHz: 300 Mbps (802.11n)

WiFi Range:

TP-Link Mesh Technology

Optional Ethernet backhaul work together to link Deco units to provide seamless coverage

2× Antennas (Internal)

Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming

Concentrates wireless signal strength towards clients to expand WiFi range

WiFi Capacity:

Dual-Band

Distribute devices to different bands for optimal performance

MU-MIMO

Simultaneously communicates with multiple MU-MIMO clients

Working Modes: Router Mode / Access Point Mode

SECURITY

Network Security:

SPI Firewall

Access Control

Guest Network:

1× 5 GHz Guest Network

1× 2.4 GHz Guest Network

WiFi Encryption:

WPA-Personal

WPA2-Personal

HARDWARE

Ethernet Ports: 2× Gigabit Ports *Per Deco Unit (Supports WAN/LAN auto-sensing)

Buttons: Reset Button

SOFTWARE

Protocols: IPv4 / IPv6

Parental Controls:

URL Filtering

Time Controls

WAN Types:

Dynamic IP

Static IP

PPPoE

PPTP

L2TP

Quality of Service: QoS by Device

Cloud Service:

OTA Firmware Upgrade

TP-Link ID

DDNS

NAT Forwarding:

Port Forwarding

UPnP

IPTV:

IGMP Proxy

IGMP Snooping

Bridge

Tag VLAN

DHCP:

Address Reservation

DHCP Client List

Server

DDNS: TP-Link

Management Features: Deco App

OTHER

Network Services Enabled by Default:

Web Server

Manage and configure device through web (HTTP/HTTPS)

• Port: 80/443   Protocol: TCP

DNS

DNS

• Port: 53   Protocol: TCP & UDP

DHCP Server

IP address assignment (DHCP)

• Port: 67   Protocol: UDP

App management

Manage and configure device through app

• Port: 22   Protocol: TCP

• Port: 20001   Protocol: TCP

• Port: 30001   Protocol: TCP

• Port: 20002   Protocol: UDP

PHYSICAL

Dimensions (W×D×H): 3.6 × 3.6 × 7.5 in (90.7 × 90.7 × 190 mm)

Package Content:

3 Deco M4R Units

1 RJ45 Ethernet Cable

3 Power Adapters

1 Quick Installation Guide

OTHERS

System Requirements:

Android 5.0 or later

iOS 9.0 or later

*Note: The minimum system requirements will be updated alongside updates to the app, subject to official website information.

Certifications: CE, FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC, RoHS

Environment:

Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~70℃ (-40℉ ~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
