Maplin 90W Universal Laptop Charger Power Supply with 12 Interchangeable Tips

Skip to product information
Key Features
 90W N17EE universal laptop power supply  12 interchangeable tips for use with all major brands  Replacement power supply for a laptop / notebook  Auto voltage setting technology  2.7-metre long cable

SKU: 5026686186239
MPN: N17EE

£24.99

£20.83 excl. VAT
B2B
Spend £80 to get 10% off your next order at Maplin or Maplin Pro! See more
Immediate delivery
Get it today
Check your postcode
Delivery Information
Delivery in 2-4 days: £3.49 or 1-3 days: £6.99 Delivery
2-4 days: £3.49 / 1-3 days: £6.99
Order within 22hrs 29mins for dispatch tomorrow
B2B
Shopping for business or education? Apply for a credit account. Shopping for business or education? Apply for a
credit account (subject to approval).
EMAIL ME WHEN AVAILABLE
Payment Options
View full details

Maplin 90W Universal Laptop Charger Power Supply with 12 Interchangeable Tips

£24.99
 per

About this product

This Maplin 90W Universal Laptop Charger Power Supply with 12 Interchangeable Tips is the perfect replacement Power Supply for your Laptop or Notebook.


Twelve interchangeable tips are included for use with Toshiba, Sony, Fujitsu, Samsung, IBM, Lenovo, Acer, Compaq, Dell and HP Laptops and Notebooks. It has Auto Voltage Technology, with output voltages of 15V, 16V and 19V.

What is Auto Voltage Technology?
Auto Voltage Technology automatically sets the output voltage to the appropriate level for your Laptop or Notebook. This works by first selecting the tip suitable for your brand of laptop. The tip is then designed to output the correct voltage automatically. This removes the need to manually select the voltage and any risk of overcharging.

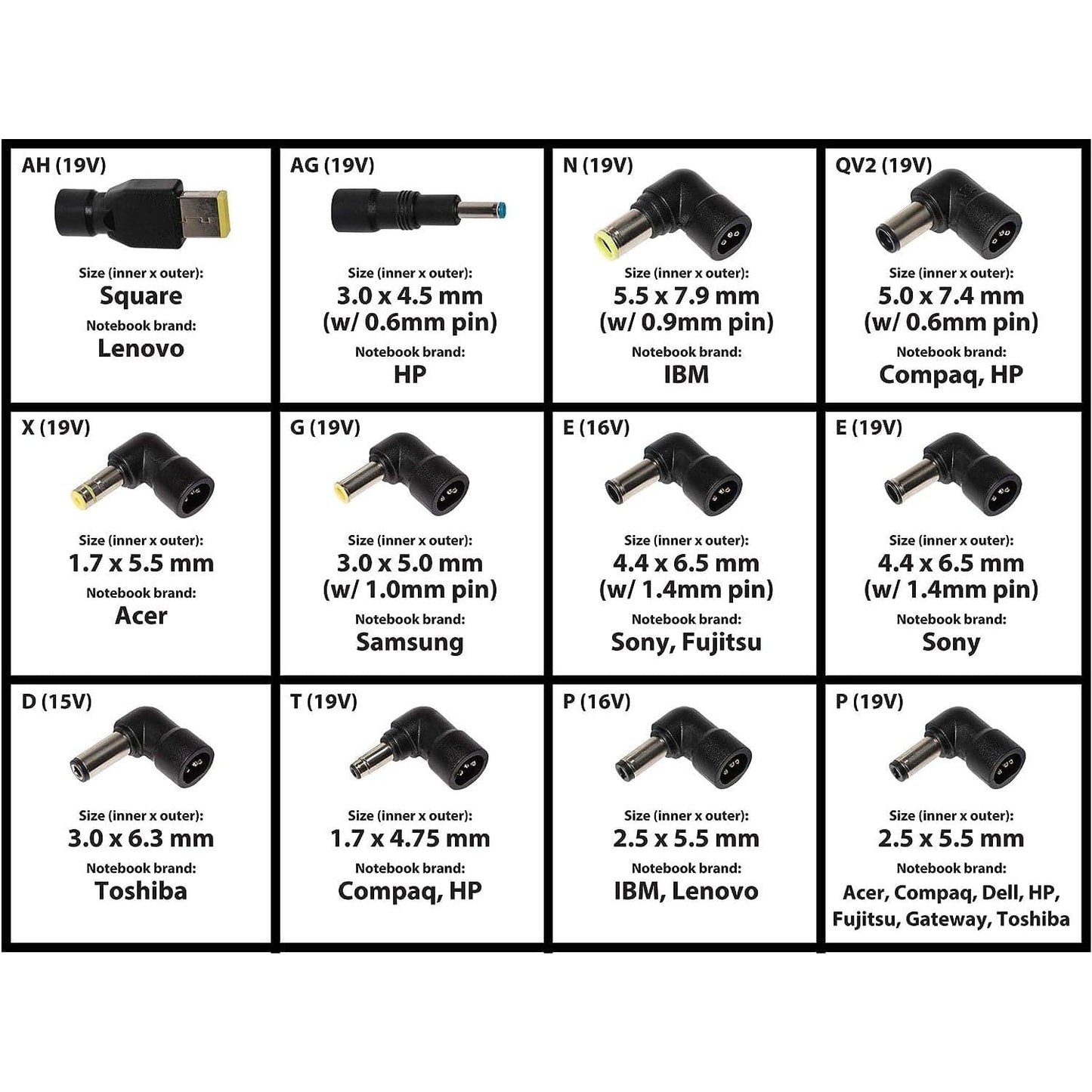

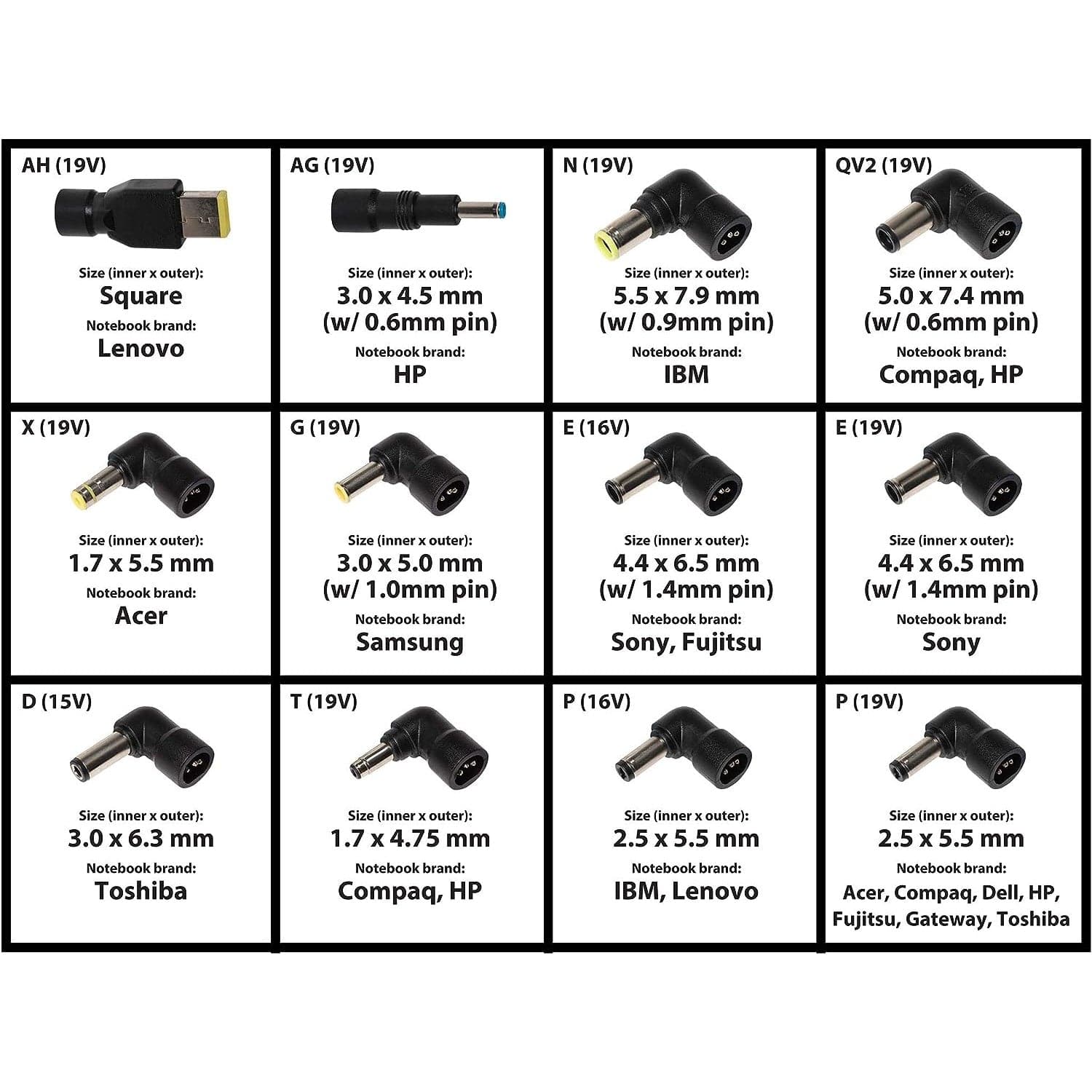

Output Tips/Socket Type:
AH (19V): Square, for Lenovo
AG (19V): 3.0x4.5mm (0.6mm pin), for HP
N (19V): 5.5x7.9mm (0.9mm pin), for IBM
X (19V): 1.7x5.5mm, for Acer
G (19V): 3.0x5.0mm (with 1mm pin), for Samsung
E (16V): 4.4x6.5mm (with 1.4mm pin) for Sony, Fujitsu
E (19V): 4.4x6.5mm (with 1.4mm pin) for Sony
D (15V): 3.0x6.3mm for Toshiba
QV2 (19V): 5.0x7.4 (with 0.6mm pin), for Compaq, HP
T (19V): 1.7x4.75mm, for Compaq, HP
P (16V): 2.5x5.5mm, for IBM, Lenovo
P (19V): 2.5x5.5mm, for Acer, Compaq, Dell, HP, Fujitsu, Gateway, Toshiba

Specifications

Plastic enclosure material: Polycarbonate resin

AC input: 1.2m power cord with 13A rewireable plug (3A fused)

Output cord: 1.5m cable with detachable DC socket plug

Polarity: Positive centre

Connector tip: With 12 auto detachable plugs (Part No. CXET-12C(QV2) )

N(19V), X(19V), G(19V), E(16V), E(19V), D(15V), T(19V), P(16V), P(19V), QV2(19V), AG(19V), AH(19V)

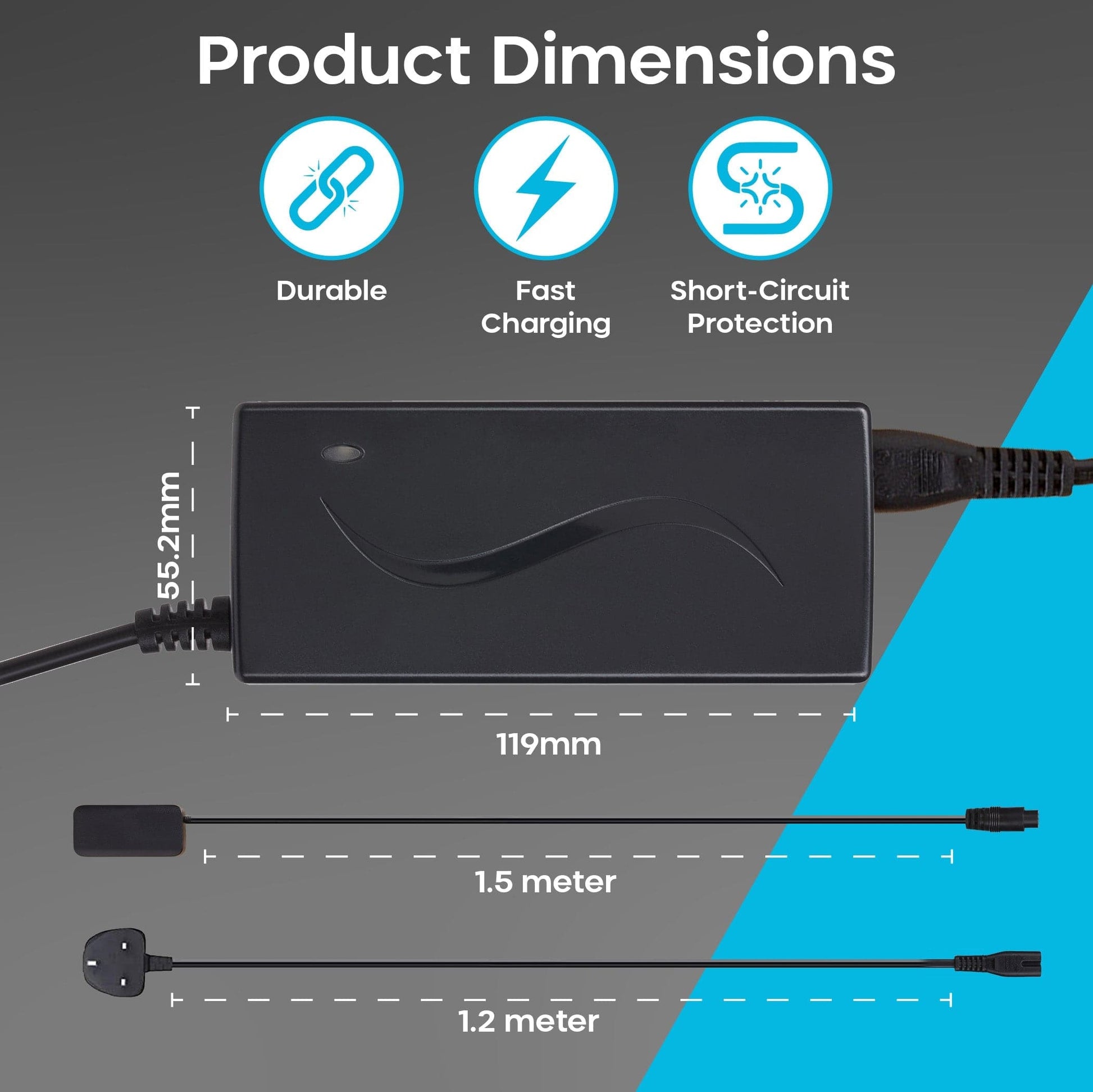

Dimensions: 119 x 55.2 x 31.4mm (L x W x H)

Weight: 311g (not including AC power cord and DC plugs)


Primary voltage and frequency: 100-240V AC 50/60Hz, 1.8A

Output:

15VDC ± 5%  4.73A;

16VDC ± 5%  4.73A;

19VDC ± 5%  4.73A


Protection: Overload protection / Short circuit protection

Ripple: 220mV MAX.

Temperature: -10oC to 55oC (storage temperature) / 0oC to 35oC (working temperature)

Humidity: 5 to 95% (storage humidity) / 10 to 90% (working humidity)
