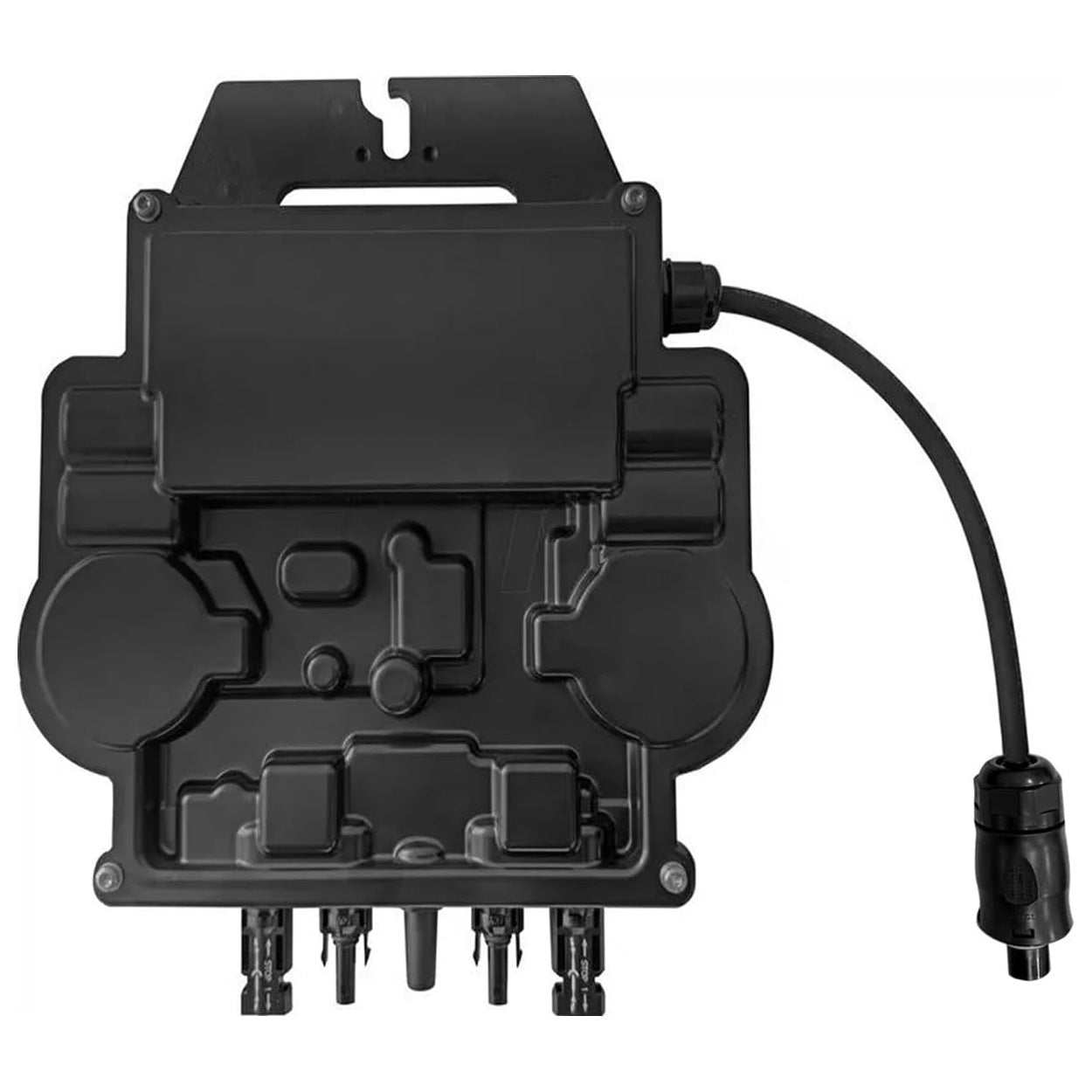

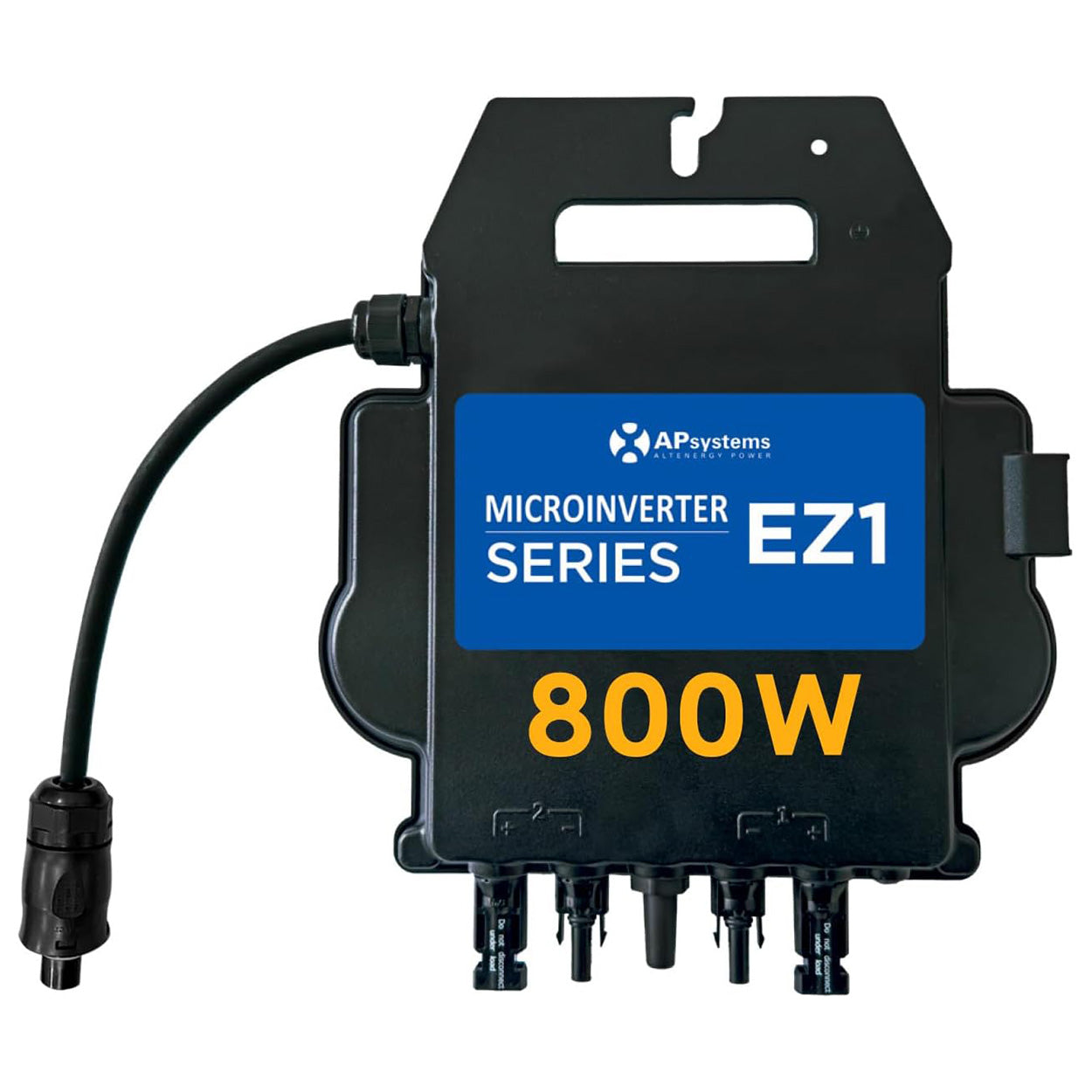

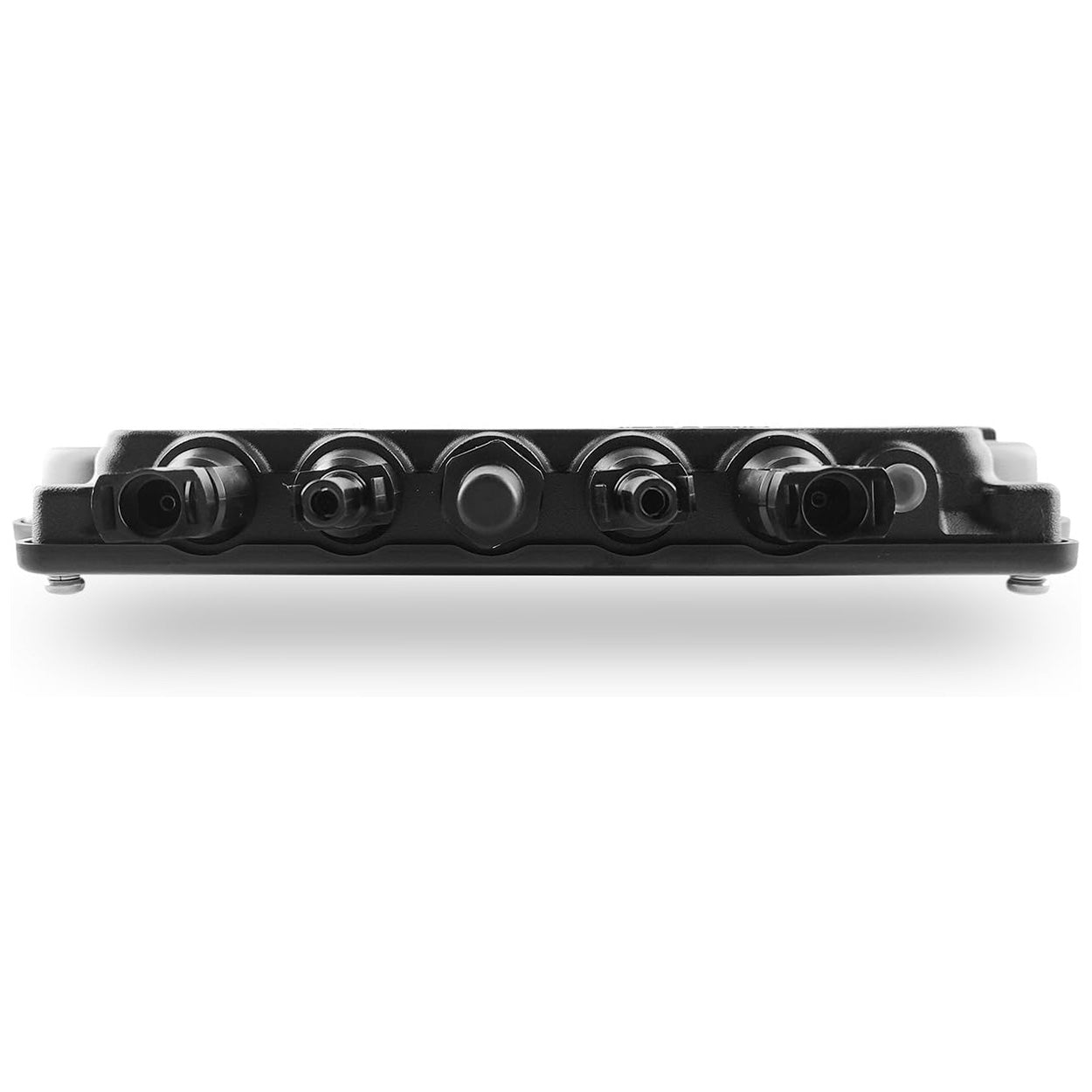

APsystems EZ1-M Microinverter 800VA Single Phase

Please note: This product must be hard wired and fitted by a qualified registered electrician.

The APsystems EZ1-M Microinverter 800VA Single Phase is designed for balcony and DIY systems. It offers a maximum output power of 800 W and can support two photovoltaic modules with an input power between 300 and 730 Wp.

EZ1 series microinverters have 2 input channels with independent MPPT and high input current and output power to adapt to today’s larger power module.

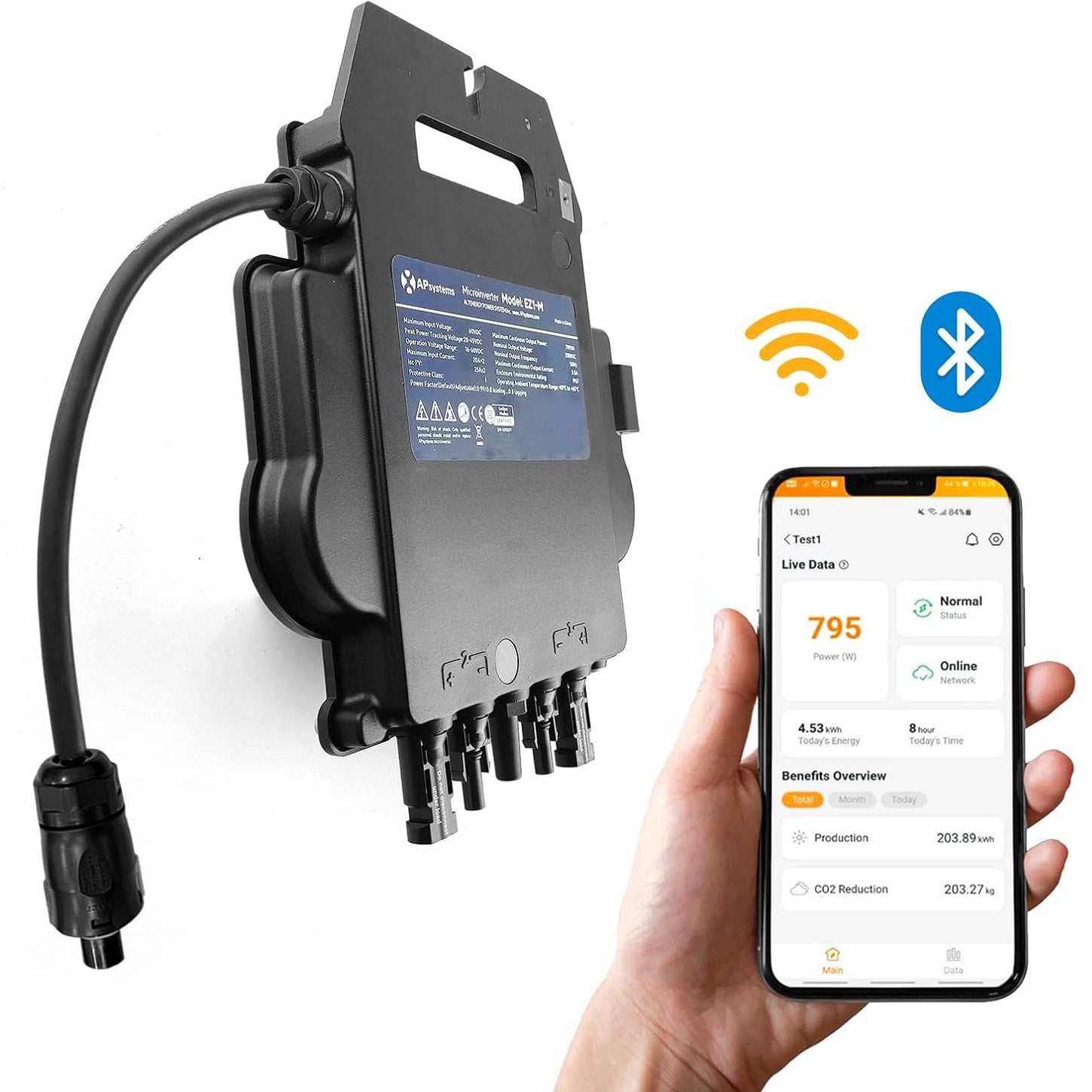

Users could directly connect to the EZ1 series with their smartphones through Bluetooth and get the real-time data of the solar systems. Besides direct connection, EZ1 series could also connect to a router through Wi-Fi and send data to cloud servers for remote monitoring.

AP EasyPower is a smart home energy management tool that provides local and remote management services for EZ1 microinverter devices. EZ1 users have to register their system online via WiFi on the AP EasyPower to be eligible for the product warranty.

Through an AC extension cable provided by APsystems (not included with microinverter), EZ1 series could be plugged into a socket and start output energy, truly easy and convenient grid connection.

Features

• One microinverter connects to two modules
• Two input channels with independent MPPT
• High input current to adapt to large modules
• Maximum reliability, IP67
• Built in Wi-Fi and Bluetooth
• Safety protection relay integrated
• Dedicated for balcony and DIY systems
• Max output power reaching 799VA

WARNING: EZ1 IS NOT SUITABLE FOR ROOFTOP APPLICATIONS DUE TO LIMITED COMMUNICATION CAPABILITY OFFERED VIA WIFI. PRODUCT WARRANTY WILL VOIDED IF THE PRODUCT IS INSTALLED ON A ROOF.

Disclaimer

This product must be installed and connected in accordance with the manufacturer's instructions and current UK electrical regulations (including BS 7671). The AC connection to your home's electricity supply should be carried out by a qualified, registered electrician using a dedicated circuit. Before the system is connected to the grid, you (or your electrician) must notify your Distribution Network Operator (DNO) under the G98 process. Total plug-in/balcony solar generation at any one property must not exceed 800W. Rules on connecting this type of system directly via a standard socket are changing and, at the time of listing, are not yet fully in force — please check the latest government and DNO guidance before installation.

Actual power output will vary depending on sunlight levels, panel positioning, shading, weather conditions and time of year; the 800W rating is a maximum/peak figure, not a guaranteed continuous output.

This is an electrical product. Incorrect installation or use may result in electric shock, fire, or damage to your property's electrical system. Keep out of reach of children. Do not attempt installation if you are unsure of the requirements — consult a qualified electrician.

Product specifications, images and compliance information are provided by the manufacturer and are correct to the best of our knowledge at the time of publication, but may be subject to change. Maplin accepts no liability for loss, damage or injury arising from improper installation, use, or failure to comply with applicable electrical or grid-connection regulations.
