MC4 Connectors and Cables: The Small Plug Making Plug-In Solar Possible

If you've been anywhere near the plug-in solar conversation lately, you'll have heard the buzz: from 27 August 2026, plug-in solar panels become legal to use in Great Britain for the first time, under new rules (SI 2026 No. 848) that build on the BS 7671 Amendment 4 changes brought in earlier this year. Suddenly, a technology that's been quietly powering solar farms and rooftop arrays for two decades is about to land on balconies, sheds and patios across the country.

Behind almost every one of those solar panels — whether it's a 400W ground-mount array or a compact balcony kit — sits the same unassuming component: the MC4 connector. It's not glamorous, but it's arguably one of the most important pieces of hardware in the entire solar industry. Here's what it is, where it came from, and why it matters so much for the plug-in solar boom heading our way.

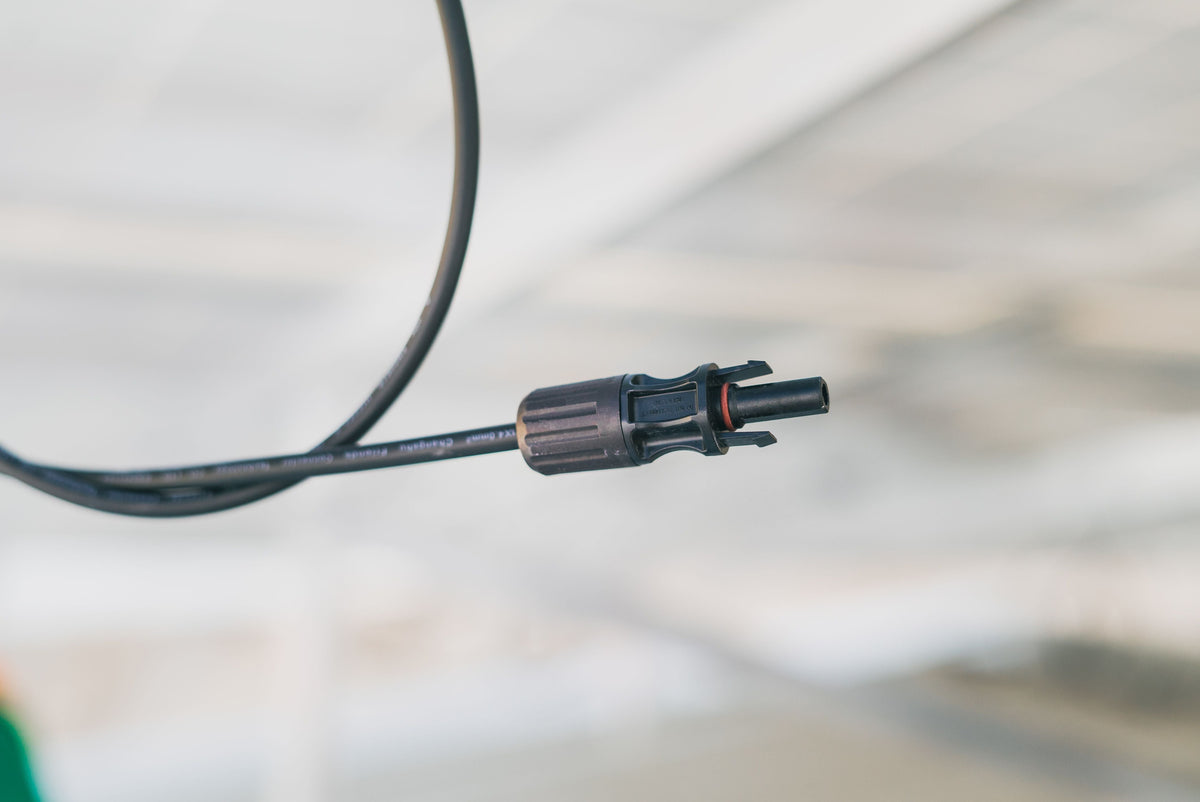

MC4 stands for "Multi-Contact, 4mm" — a reference to the 4mm² contact pin at its core. It's a weatherproof, locking electrical connector used to join solar panels to each other and to the rest of a solar power system, such as an inverter or charge controller.

Every MC4 connector comes as a mating pair: a male connector with a pin, and a female connector with a socket. Push them together and you'll hear (and feel) a distinct click as a spring-loaded latch locks them in place. That locking action is deliberate — MC4 connectors are built to resist being pulled apart by hand or by vibration, wind, and weather, but to release cleanly with a small flathead tool when a connection genuinely needs to be undone.

Because almost every solar panel manufacturer now fits MC4 connectors as standard on their output leads, they've become the de facto plug-and-play standard of the solar world — the "USB of solar panels," if you like.

The connector's story starts with a Swiss company called Multi-Contact, a specialist in electrical connector technology. In 1996, the company introduced the MC3 connector for early photovoltaic installations — a 3mm² pin connector that worked well enough but had no dedicated locking mechanism, leaving it vulnerable to accidental disconnection.

In 2004, Multi-Contact refined the design into the MC4, increasing the contact size to 4mm² and, crucially, adding the snap-in locking mechanism that defines the connector today. That single addition — a proper mechanical lock — turned a functional connector into the safety-conscious standard the solar industry needed as installations scaled up from experimental rooftops to full commercial arrays.

MC4 quickly became the connector of choice across the industry, to the point that "MC4" is now used almost generically, much like "hoover" for vacuum cleaners. That's despite the fact that MC4 remains a protected trademark: in 2017, Multi-Contact rebranded as Stäubli Electrical Connectors following its earlier acquisition by the Stäubli Group, and Stäubli still manufactures what it calls the "Original MC4." Most connectors sold under the MC4 name today, however, are compatible third-party clones — which, as we'll get to, is both the standard's greatest strength and one of its few genuine weak points.

MC4 connectors punch above their size. Depending on the exact model and cable gauge, genuine MC4-rated connectors typically handle up to around 30A of current and up to 1,000–1,500V DC, comfortably covering the vast majority of residential and commercial solar setups. They're rated IP67 (and some variants IP68), meaning they're fully protected against dust and can withstand temporary submersion — essential for hardware that lives outdoors in British weather for 25+ years. Internally, the contacts use tin-plated copper and, in Stäubli's own connectors, a technology called MULTILAM to maintain a low-resistance connection and keep moisture from creeping in, minimising energy loss at the joint.

Genuinely universal. Because nearly every panel, inverter, and cable manufacturer builds to the MC4 standard, components from different brands almost always fit together — a rarity in electronics.

Weatherproof by design. The IP67/IP68 rating means MC4 joints are built to survive rain, condensation, and temperature swings without degrading.

Secure but serviceable. The locking mechanism prevents accidental disconnection from wind or vibration, while still allowing a deliberate, tool-assisted release when needed.

Low energy loss. Good-quality contacts and low resistance mean well-made MC4 joints waste very little power compared with looser or less specialised connectors.

Simple, tool-free assembly for end users. For pre-terminated cables — which is what most plug-in solar kits ship with — connecting an MC4 pair is as easy as pushing two plugs together until they click.

Not designed for frequent plugging and unplugging. MC4 connectors are built for semi-permanent connections. They're not rated for the kind of daily plug-in/unplug cycling you'd give a kettle, and repeated disconnection under load can accelerate wear.

Crimping is unforgiving. If you're terminating your own MC4 leads (rather than buying pre-made ones), a poor crimp is one of the most common causes of overheating, voltage drop, and — in rare but serious cases — DC arc faults, which carry more energy per amp than an equivalent AC fault. This is exactly why most guidance, including from UK balcony solar installers, recommends buying factory-terminated cables rather than crimping your own unless you're properly trained and equipped.

Counterfeits and cross-brand mixing. Because "MC4" isn't a strictly policed name, quality varies a lot between manufacturers, and mixing a cheap clone with a genuine Stäubli connector can produce a poor mechanical and electrical fit. Sticking to one connector family per string is the safer bet.

Live when lit. Any MC4 connector attached to a panel carries live DC voltage the moment that panel sees daylight — even overcast daylight. Never connect or disconnect a loaded MC4 joint; isolate the DC side first, and ideally work with the panel shaded or covered.

This is where MC4 connectors go from "solar industry standard" to genuinely relevant for anyone eyeing up a plug-in solar kit ahead of the UK's 27 August 2026 change. In a typical plug-in solar setup, the panel's MC4 output leads connect directly into a small microinverter, which converts the panel's DC output into AC. From there, the kit uses a standard UK 13A plug — fitted by the manufacturer, with partially insulated pins and a built-in fuse, per the new Interim Product Specification — to feed power straight into a normal wall socket, capped at 800W.

The MC4 half of that chain is almost always the bit you won't need to think about: kits typically arrive with 1–2 metre pre-terminated MC4 leads already fitted between panel and microinverter, so there's no crimping involved for most buyers. Where MC4 does still matter to you directly is if you want to extend a run, add a second panel, or replace a damaged lead — in which case, buying a proper pre-made MC4 extension cable in the correct gauge (rather than DIY crimping) keeps things both simple and safe. A quick "click test" — pushing the connector home until you hear and feel it lock — is the easiest way to confirm a joint is properly seated before switching anything on.

MC4 connectors are a rare case of a genuinely unglamorous piece of hardware being quietly essential. Two decades after Multi-Contact (now Stäubli) added a locking latch to a simple 4mm pin connector, that same design is what will let ordinary households plug a solar panel into a wall socket this month and trust that the connection behind the scenes is weatherproof, secure, and standardised. As you're putting together a plug-in solar setup, the connectors themselves rarely need fussing over — but it's worth knowing what they are, buying genuine pre-terminated leads where possible, and treating any exposed MC4 joint with the respect due to a live DC connection.
