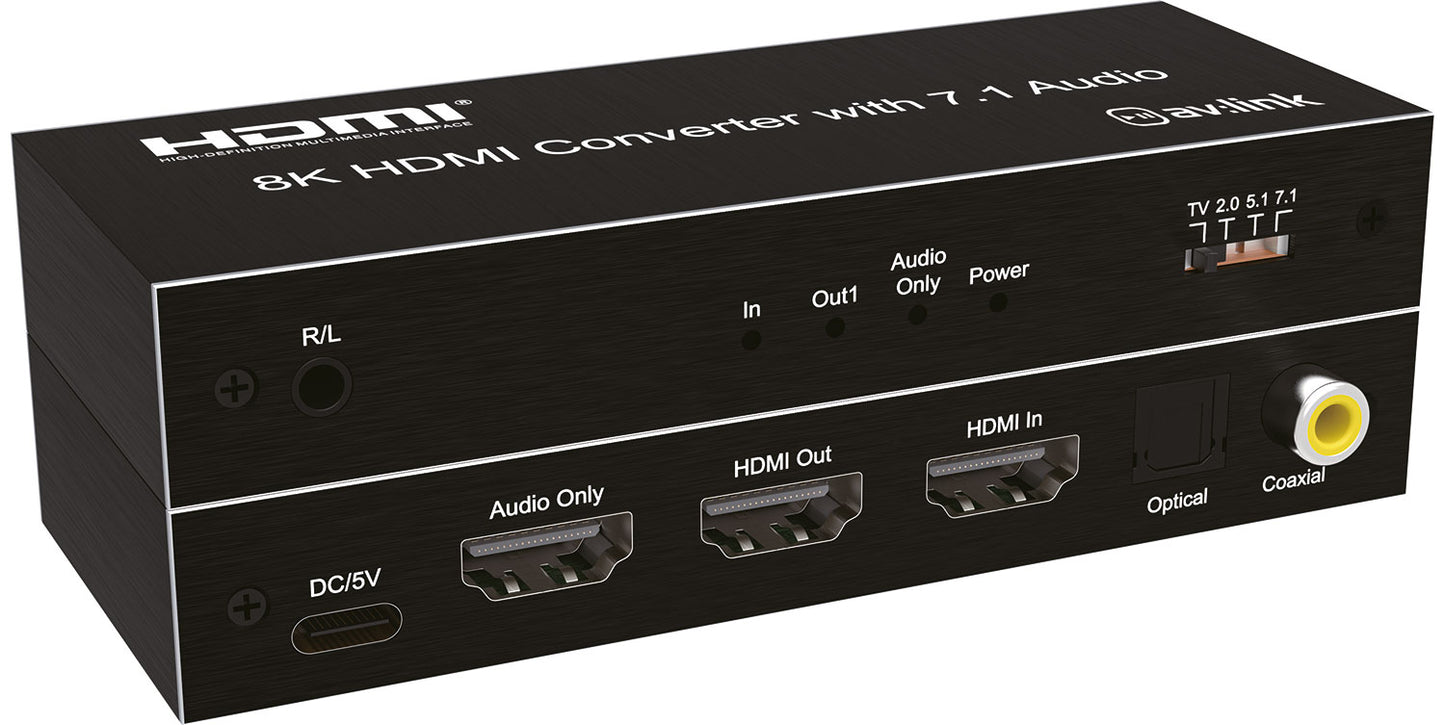

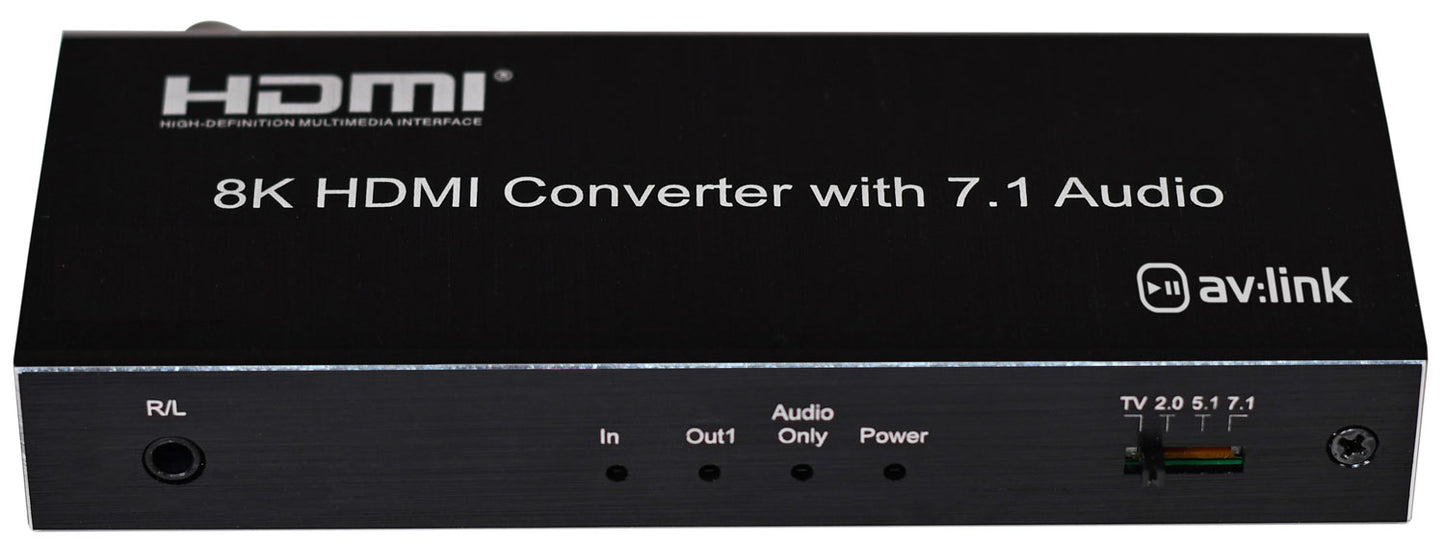

AV Link 8K HDMI Audio Extractor

About this product

The AV Link 8K HDMI Audio Extractor is a state of the art audio converter that extracts digital (HDMI, Toslink and Coaxial) and/or Analogue (3.5mm stereo) audio signals from a single 8K HDMI source device. With support for newer technologies including VRR, LPCM5.1/7.1 and Dolby Atmos this unit is ideal for audio separation from the latest PC's and games consoles.

Extracts digital (HDMI, Toslink and Coaxial) and/or Analogue (3.5mm stereo) audio signals from a single HDMI source device

Supports HDMI input/output resolutions up to 7680×4320 @ 60Hz

Supports Variable Refresh Rate (VRR) and HDR10

Simple plug and play installation and instant synchronisation without delay

Attractive brushed metal finish

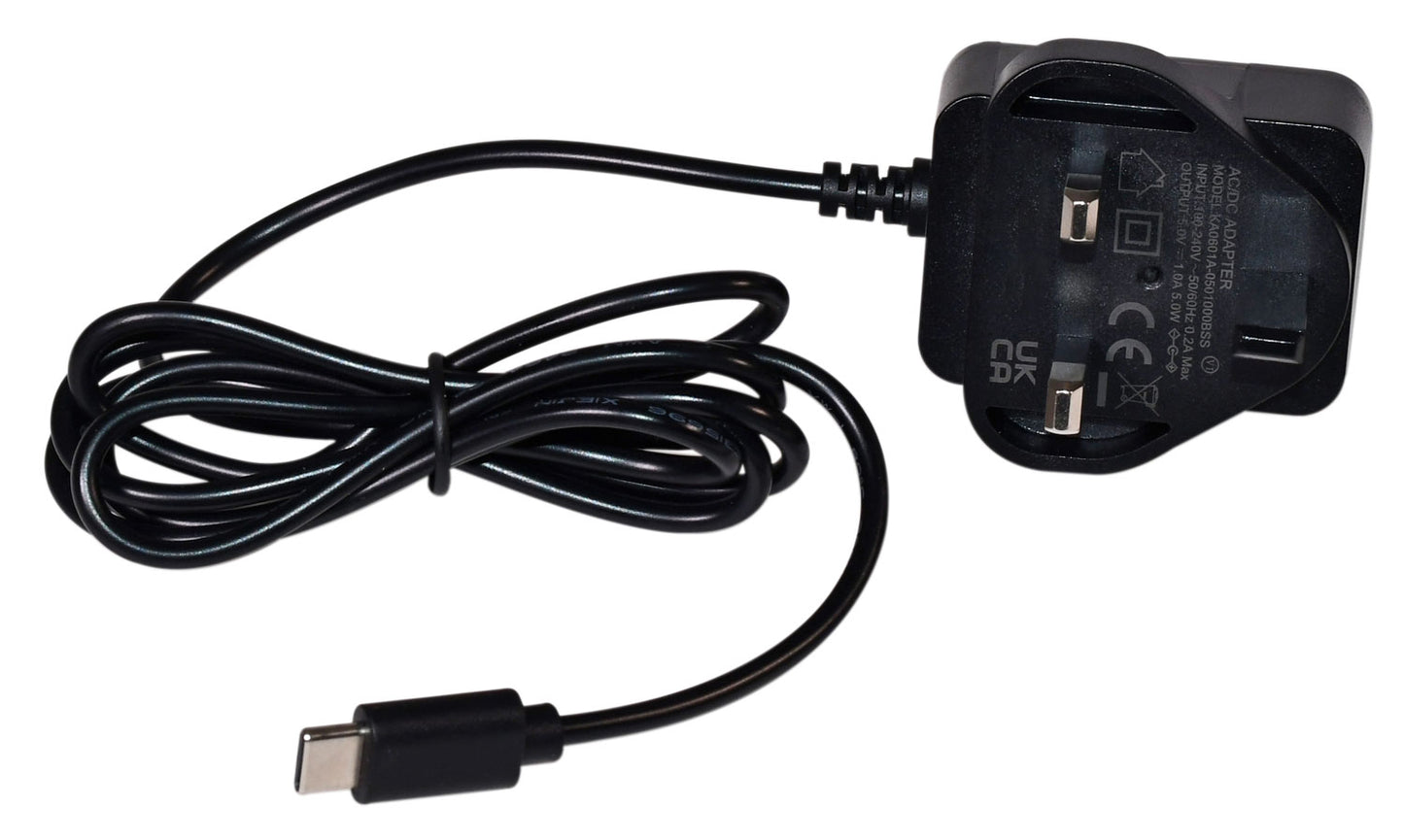

UK mains adaptor supplied (DC5V/1A)

Specifications

Input connections: HDMI (8K), USB-C (DC/5V power input)

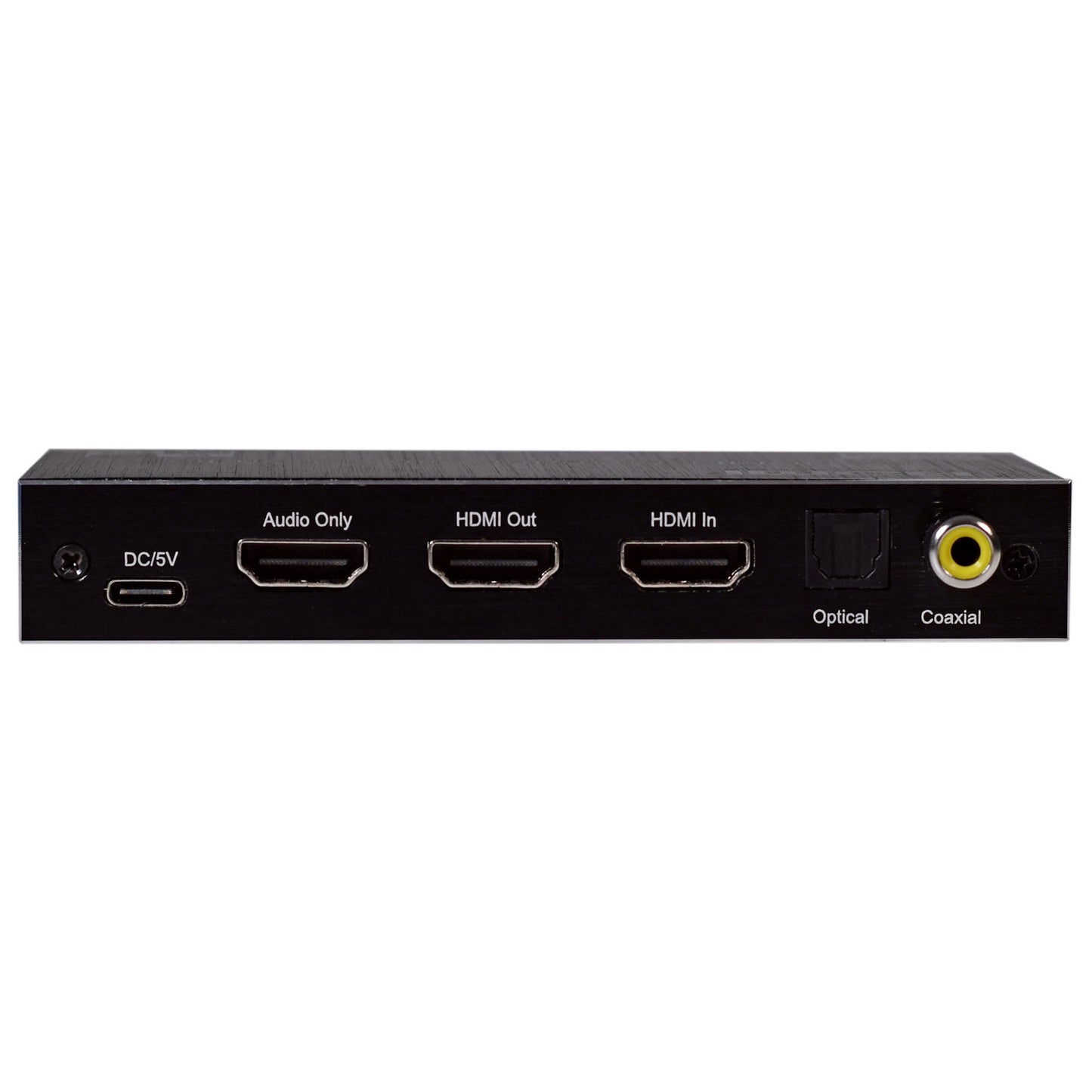

Output connections: HDMI (8K), HDMI (audio only), Optical (Toslink), Coaxial, 3.5mm (Stereo)

Video resolution: Up to 7680 × 4320 @ 60Hz

Video format: 8/10/12 bit deep colour

Max. baud rate: 40Gbps

Audio output: HDMI: PCM2.0, LPCM5.1/7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X

Audio output: SPDIF/COAX: LPCM2.0/5.1, Dolby Digital 2.0/5.1, DTS2.0/5.1

Audio output: 3.5mm Jack: Analogue stereo 2.0ch

Max. cable length: Input: 8K/60Hz≤3m, Output: 8K/60Hz≤5m

Power supply: Input AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Dimensions:121 x 57 x 19mm

Weight: 118g
