Chord XU Series UHF Microphone System

About this product

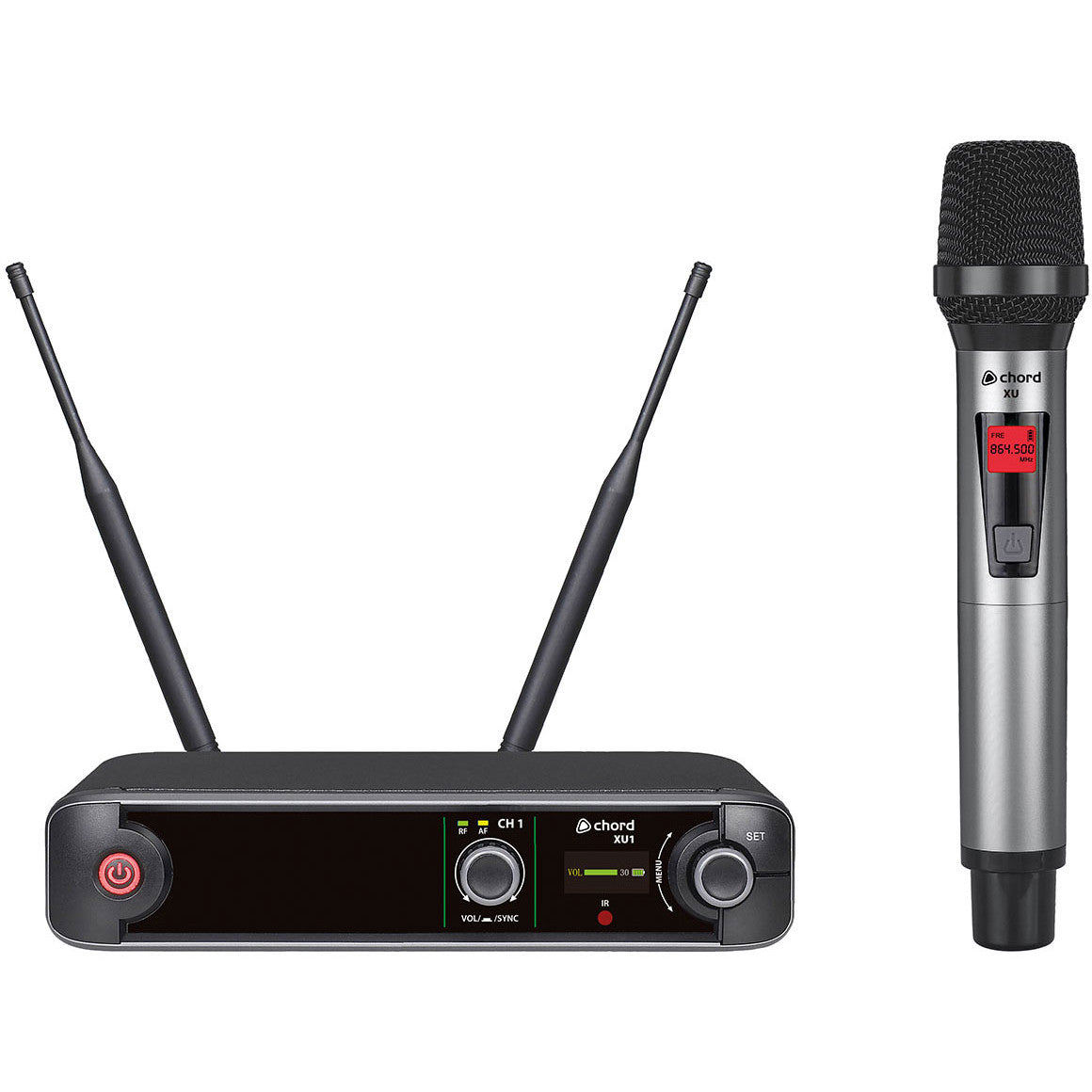

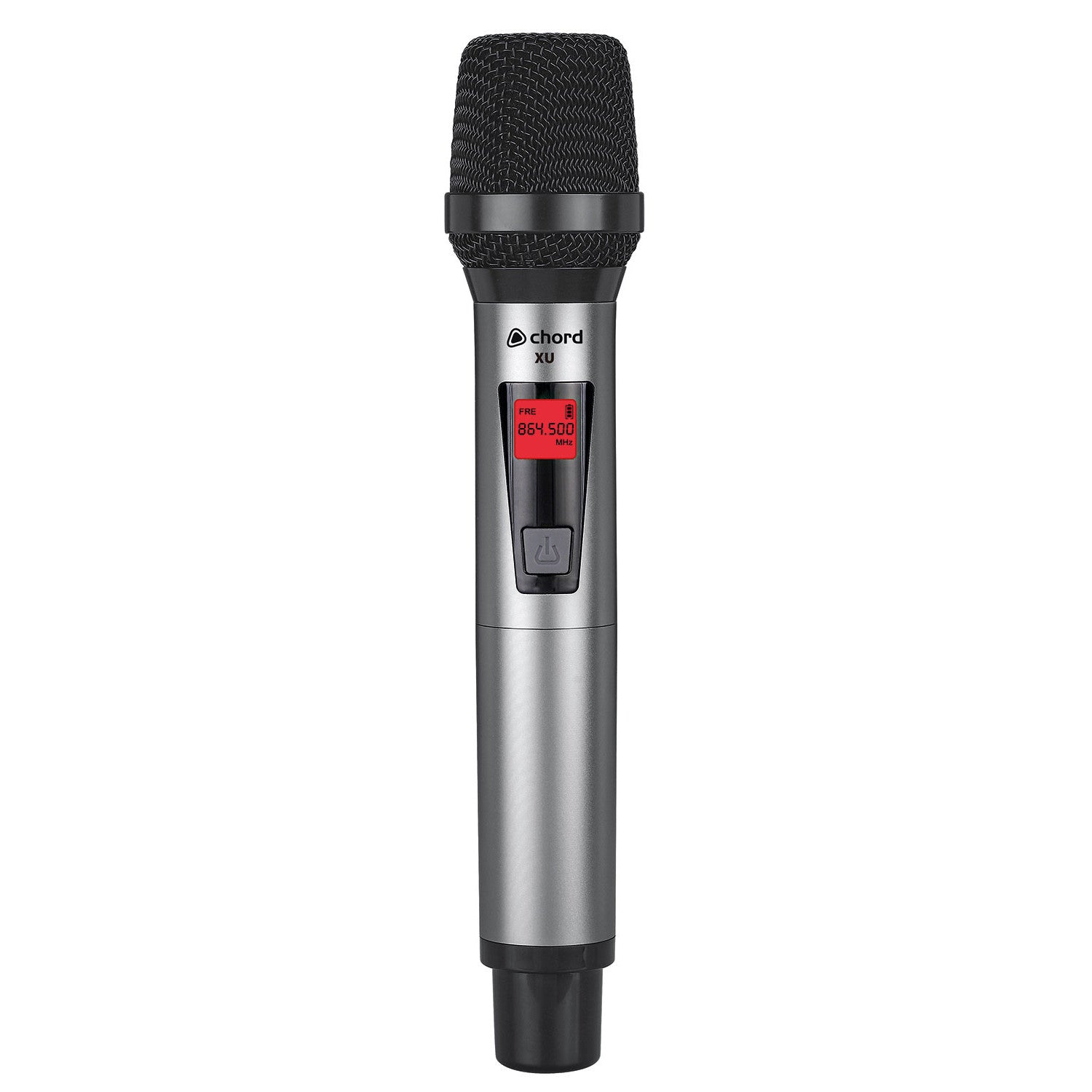

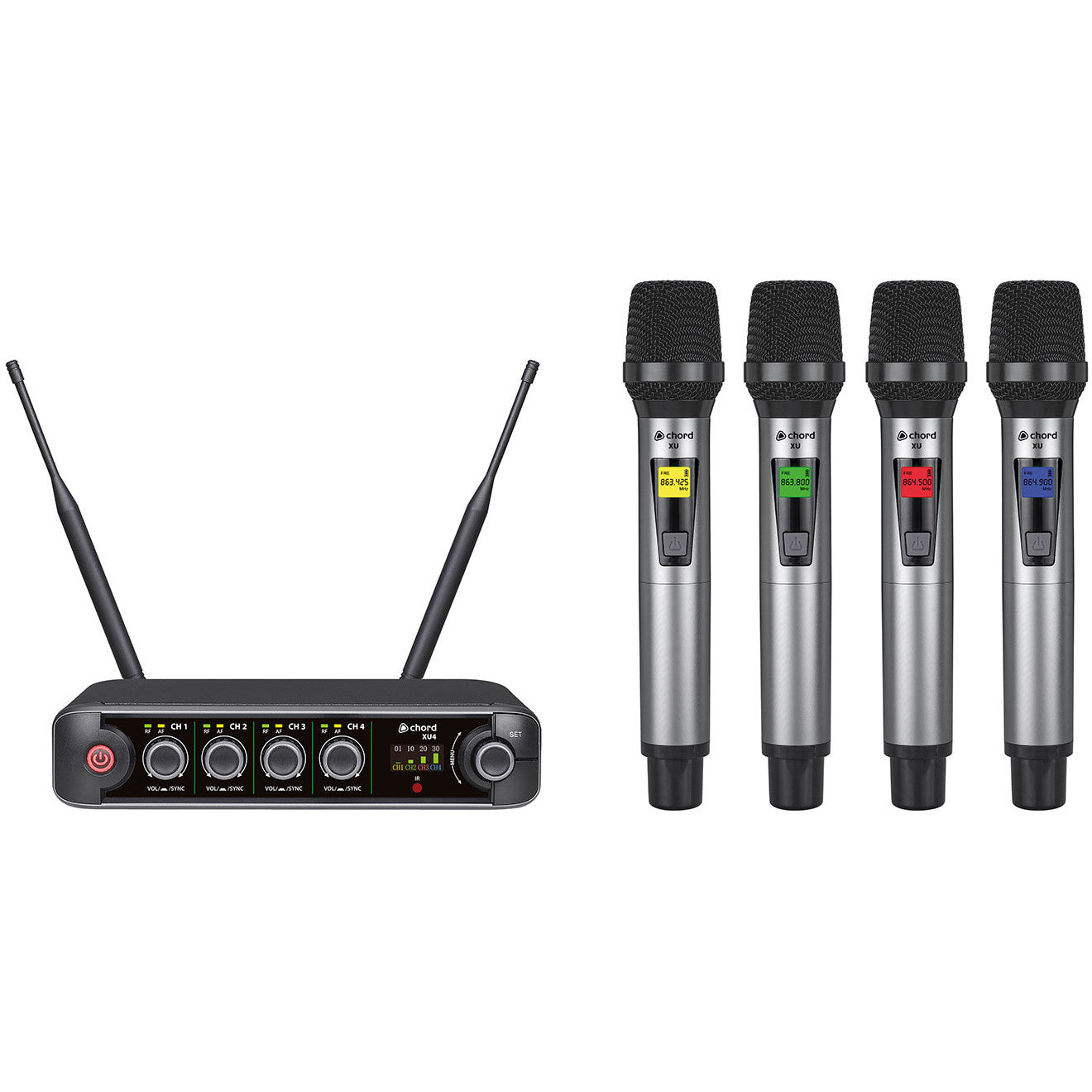

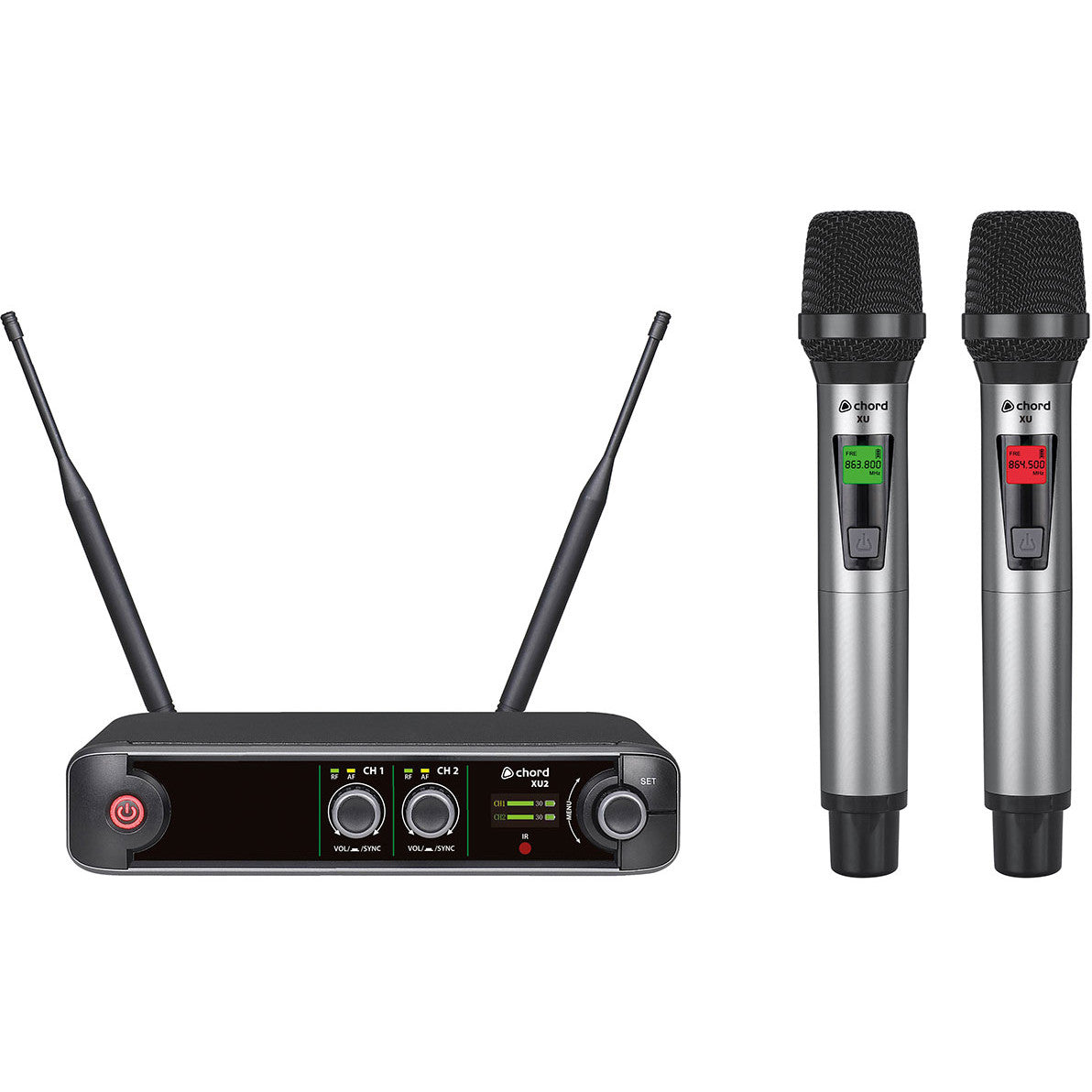

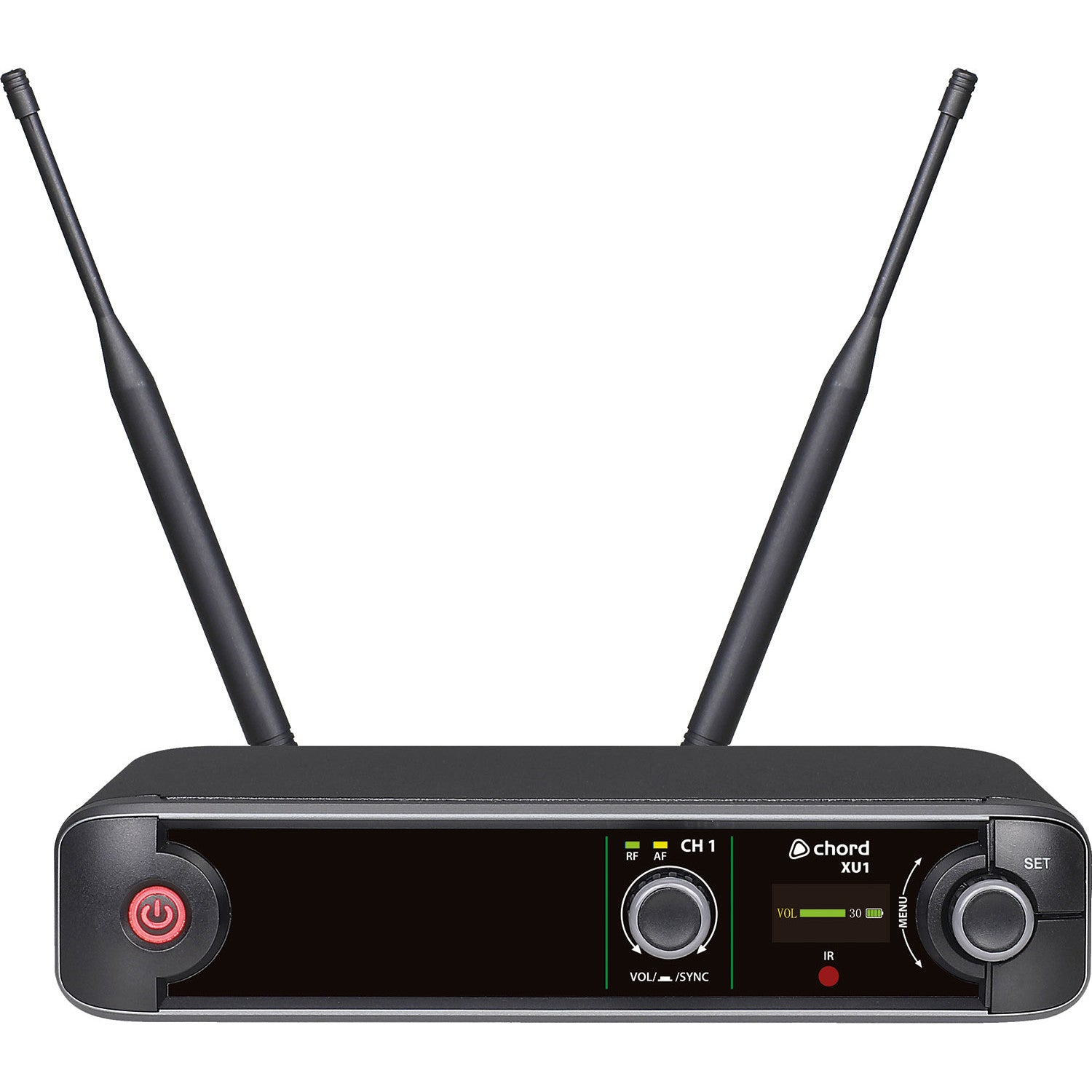

The Chord XU Series UHF Microphone System offer pro-level features in a compact receiver with premium microphone transmitters. Supplied as a half-width 1U rack receiver with 1, 2 or 4 channels of either handheld microphones or bodypack transmitters with a neckband and lavalier mic option. The receiver is a true diversity type with dual antennas and internal distribution for minimizing dropouts. The front panel has a volume control and indicator LEDs per channel alongside a colour TFT display with level indications for each channel and settings for channel frequencies and colours. Each transmitter also has its own LCD display for frequency and battery status, with a backlight that can be set to one of 6 colours for identification. Carrier frequencies are arranged in 10 groups with carriers in both the UK/EU license-free UHF and PMSE licensed duplex gap UHF bands. Each set is supplied with hardware for mounting into a 1U rack space with extension cables to enable front mounting of the antennas. For a wireless microphone system with straightforward operation and intuitive features, the XU series delivers freedom and reliable operation to vocalists, presenters and instructors in a compact and convenient package.

Features

Compact half-width rack receiver

True diversity antennas with internal distro for reliable reception

10 groups of 9 selectable UHF carrier frequencies

Selectable backlight colours for each channel

1, 2 or 4 x XLR outputs + 1 x 6.3mm mix output

Settings sync I.R. from receiver to transmitters

Colour TFT display for settings menu

Specifications

Weight (handheld transmitter): 246g (no battery)

Dimensions (handheld transmitter): 258 x 47mmØ

Power supply: 12-18Vdc, 500mA/1000mA (mains adaptor supplied)

Batteries: 2 x AA per transmitter

Carrier frequencies: 823-832 / 863-865MHz

Wireless range: Up to 60m

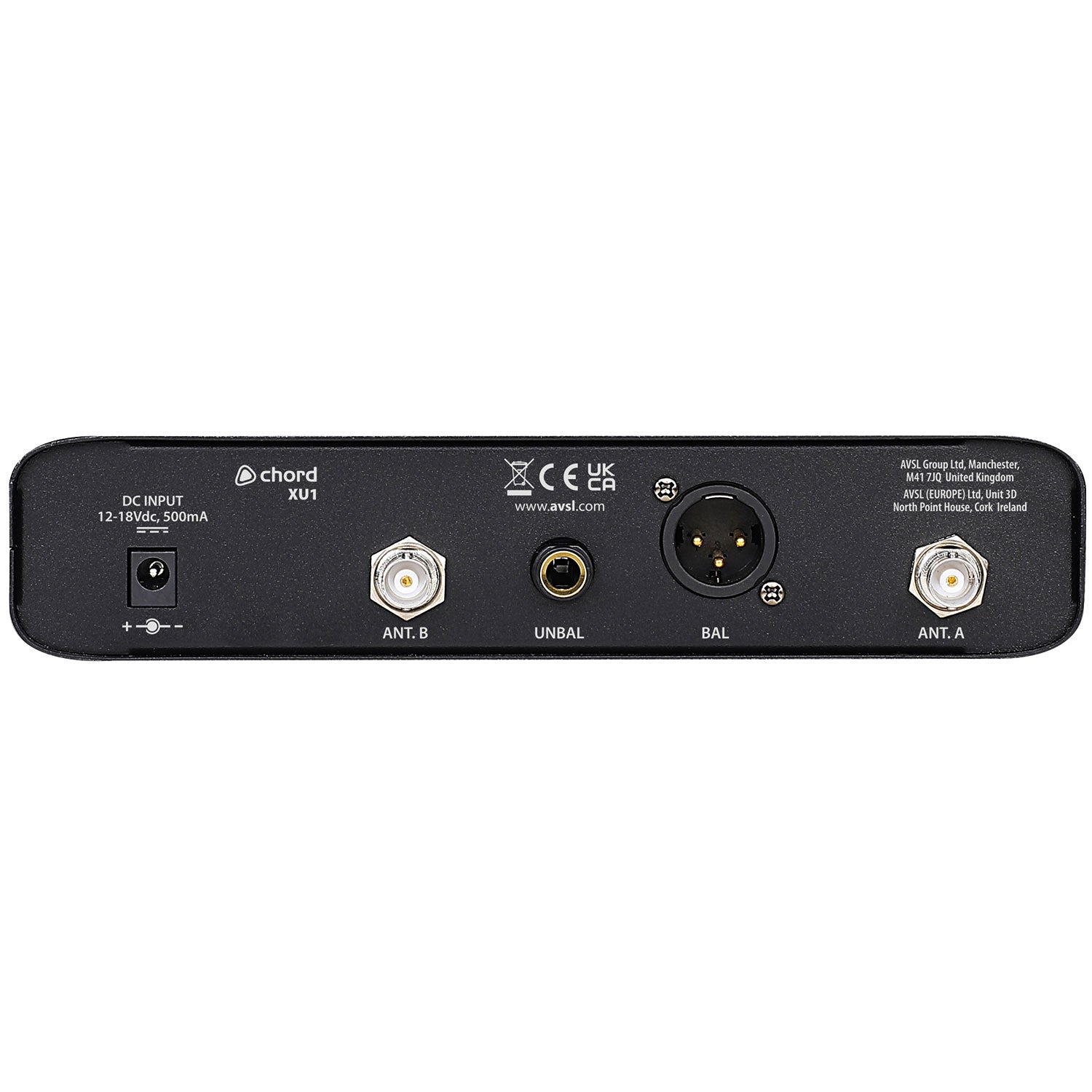

Antenna connection: 2 x BNC

Dimensions (receiver): 205 x 205 x 44mm

Weight (receiver): 755g
