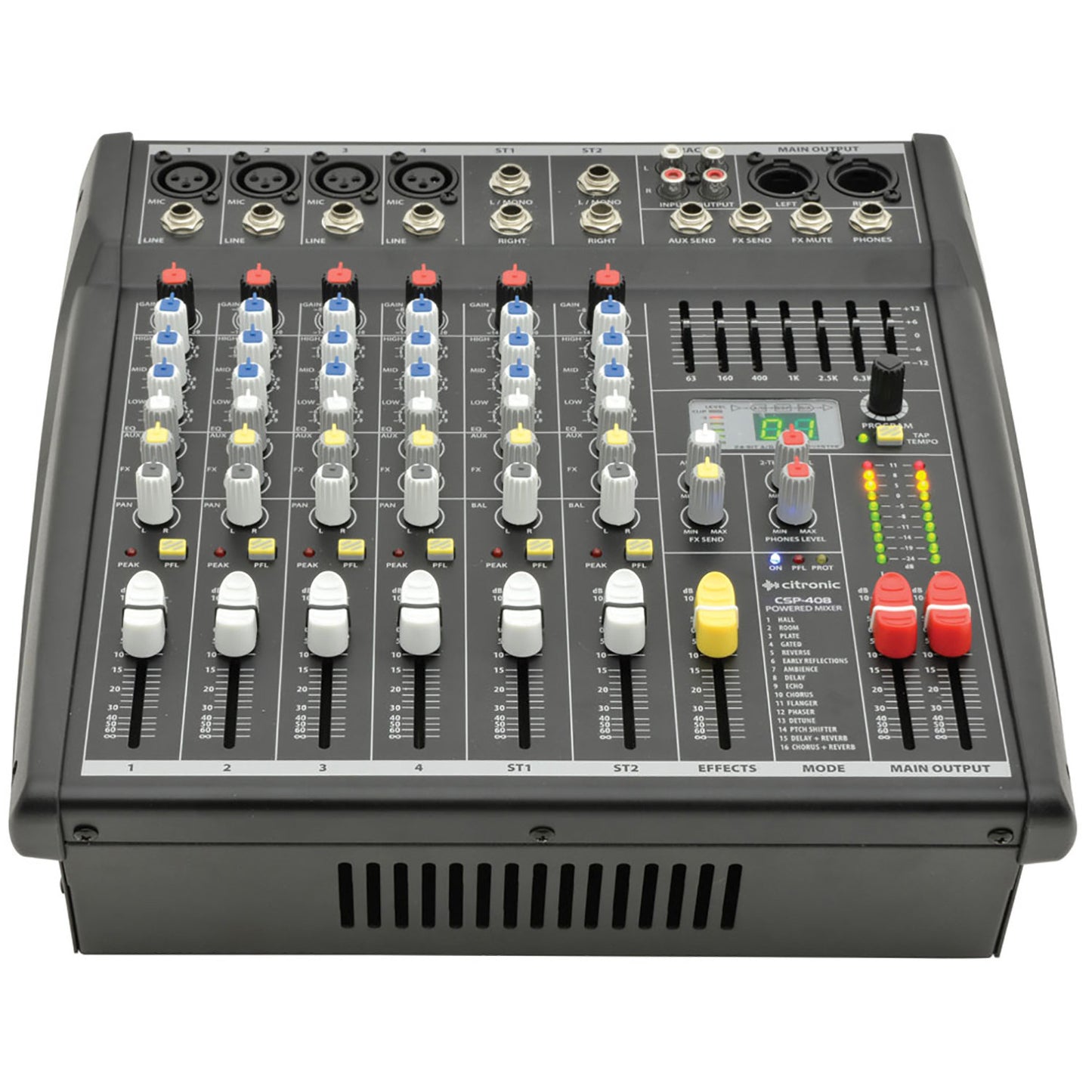

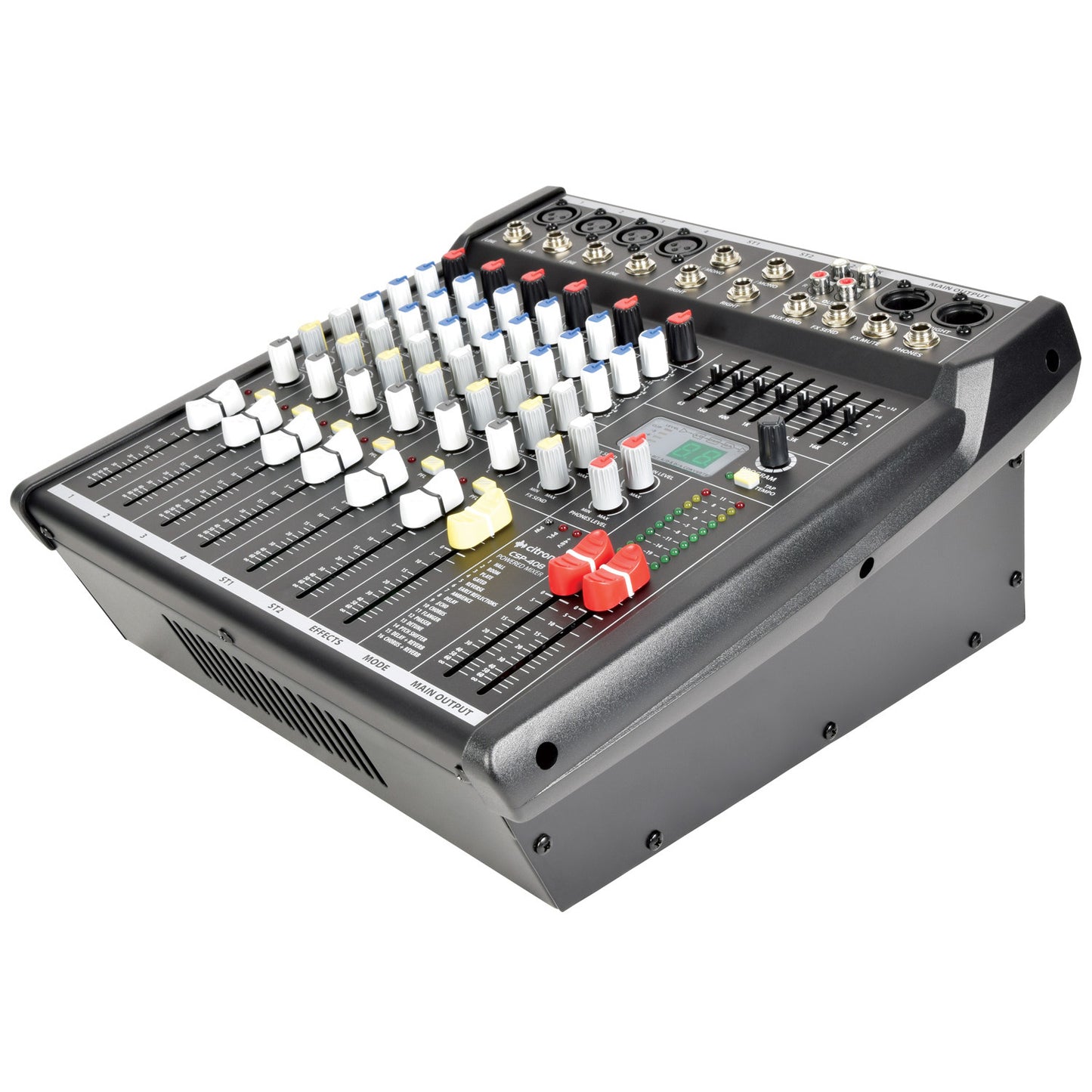

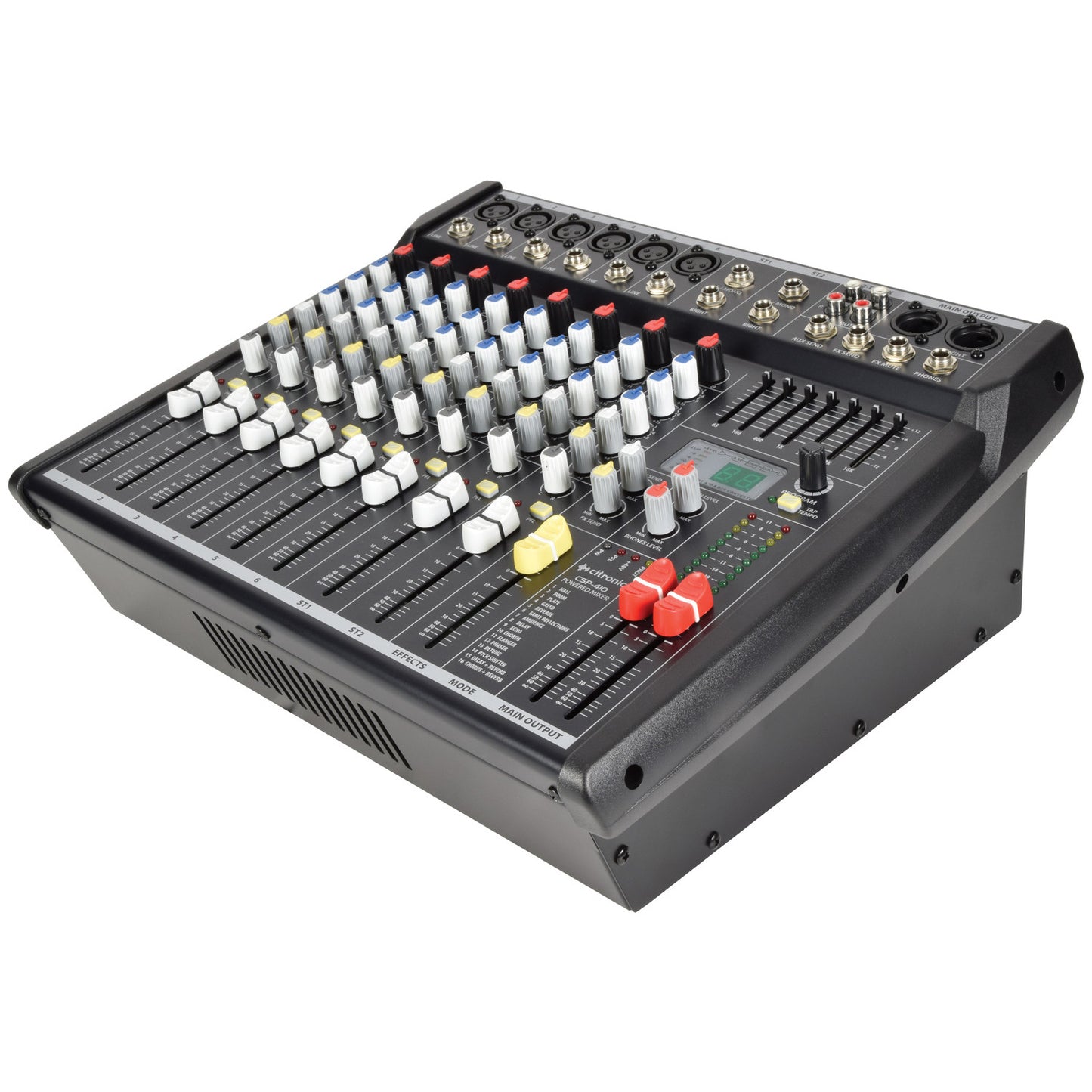

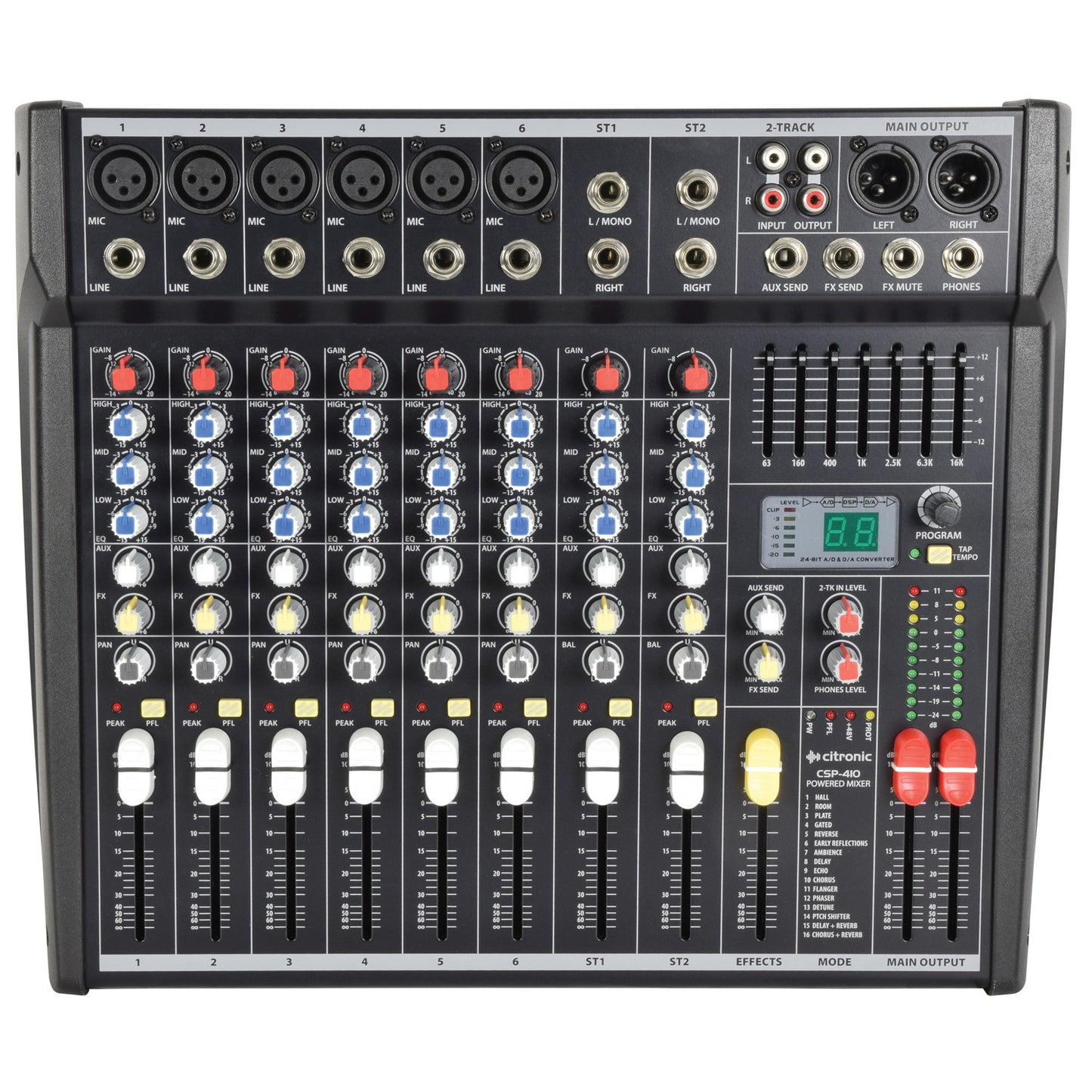

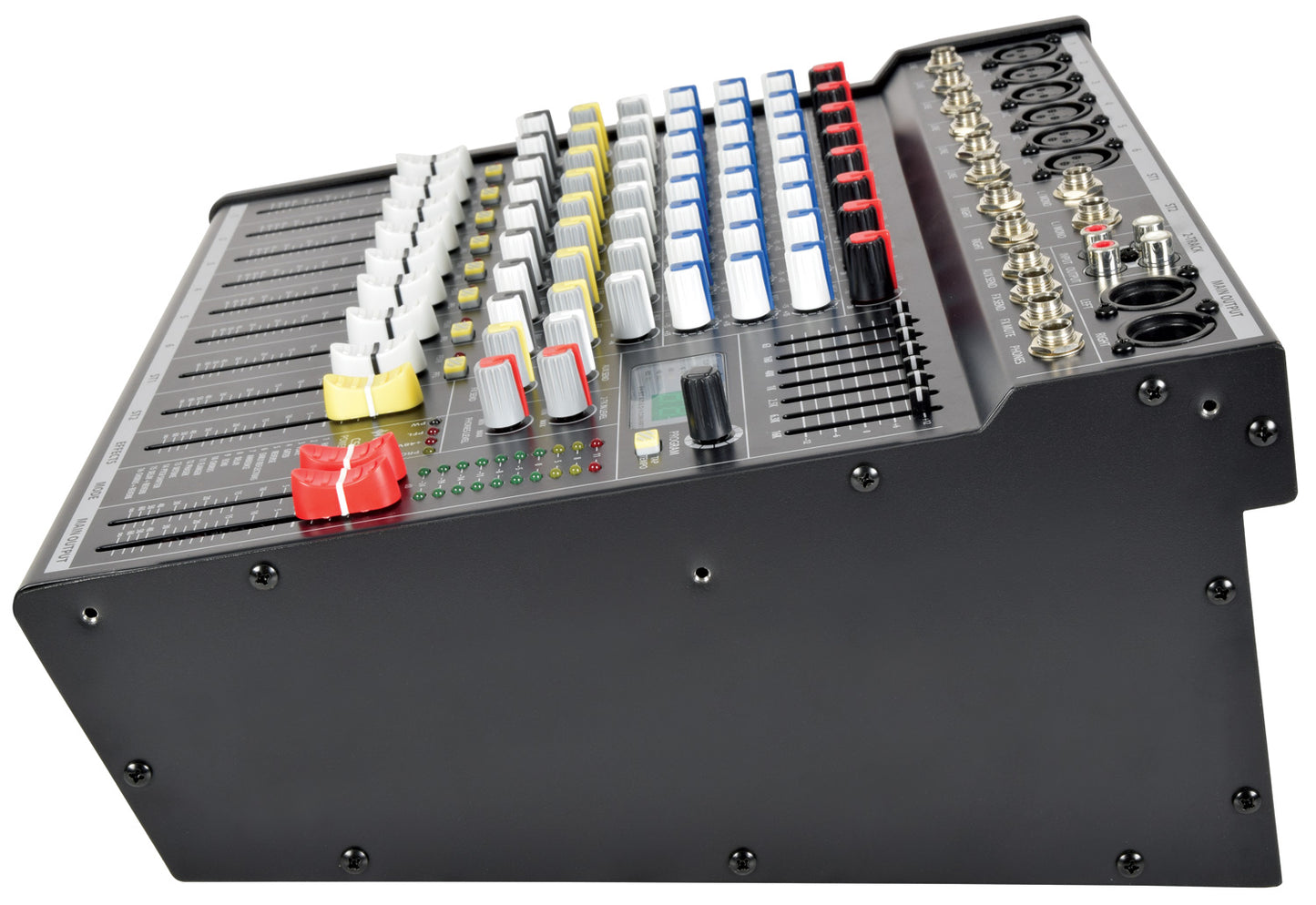

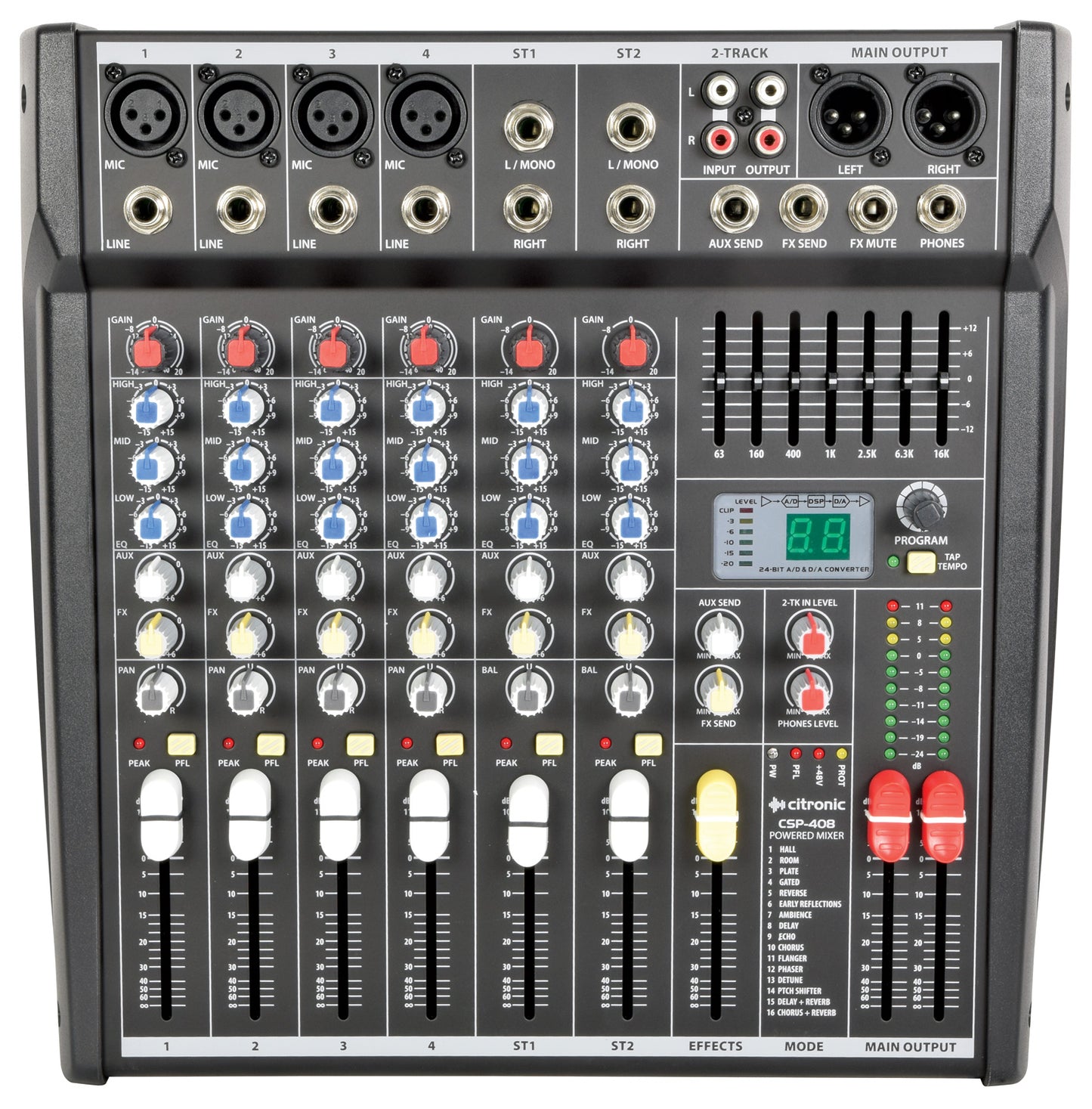

Citronic CSP Series Compact Powered Mixer with DSP

About this product

The Citronic CSP Series Compact Powered Mixer with DSP is a powered mixer with balanced mic/line inputs and 2 stereo inputs, each with 3-band EQ and aux send. A 16 program DSP section with tap tempo can provide vocal effects and a 7-band graphic EQ facilitates global tone control. The built-in stereo amplifier delivers ample power to drive 2 or 4 speakers for coverage in medium sized venues, offering a compact and comprehensive solution for mobile PA, bars and special events.

24-bit 16 program DSP effects

48V phantom power for XLR inputs

3-band EQ per channel

7-band global graphic EQ

Internal stereo power amplifier

Balanced main outputs

Specifications

Output power @ 8 Ohms: 2 x 130Wrms

Output power @ 4 Ohms: 2 x 200Wrms

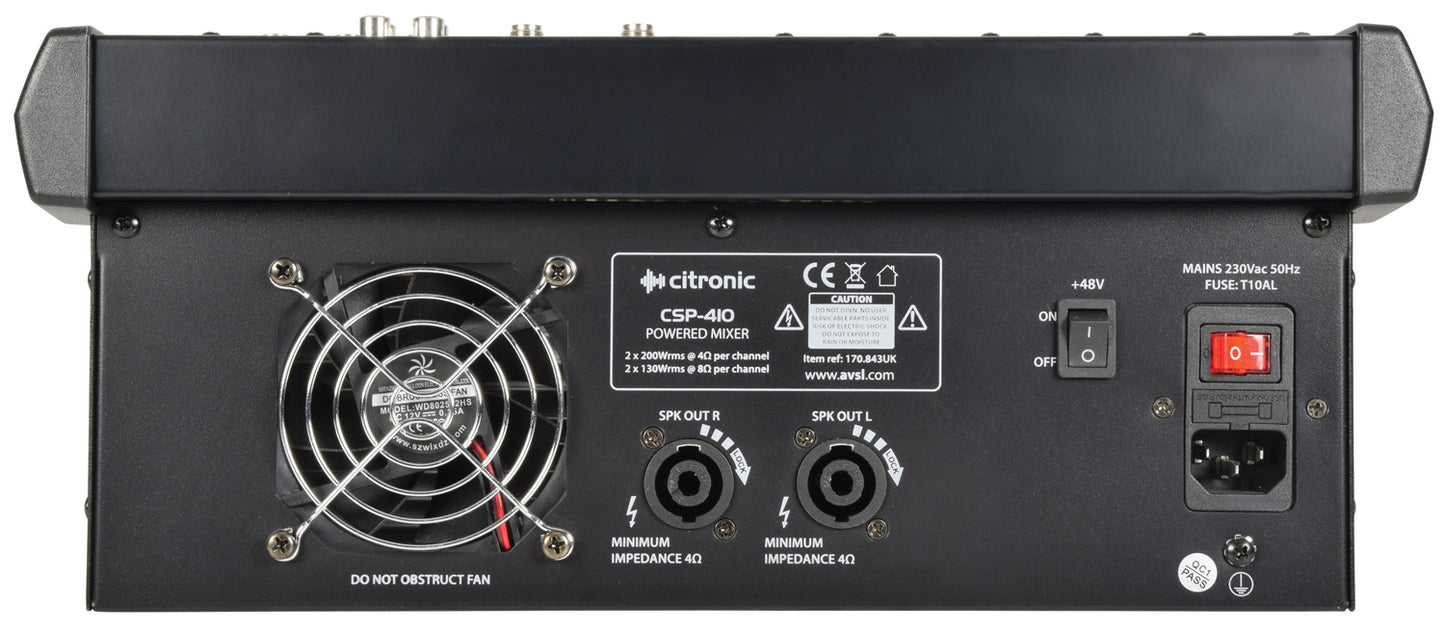

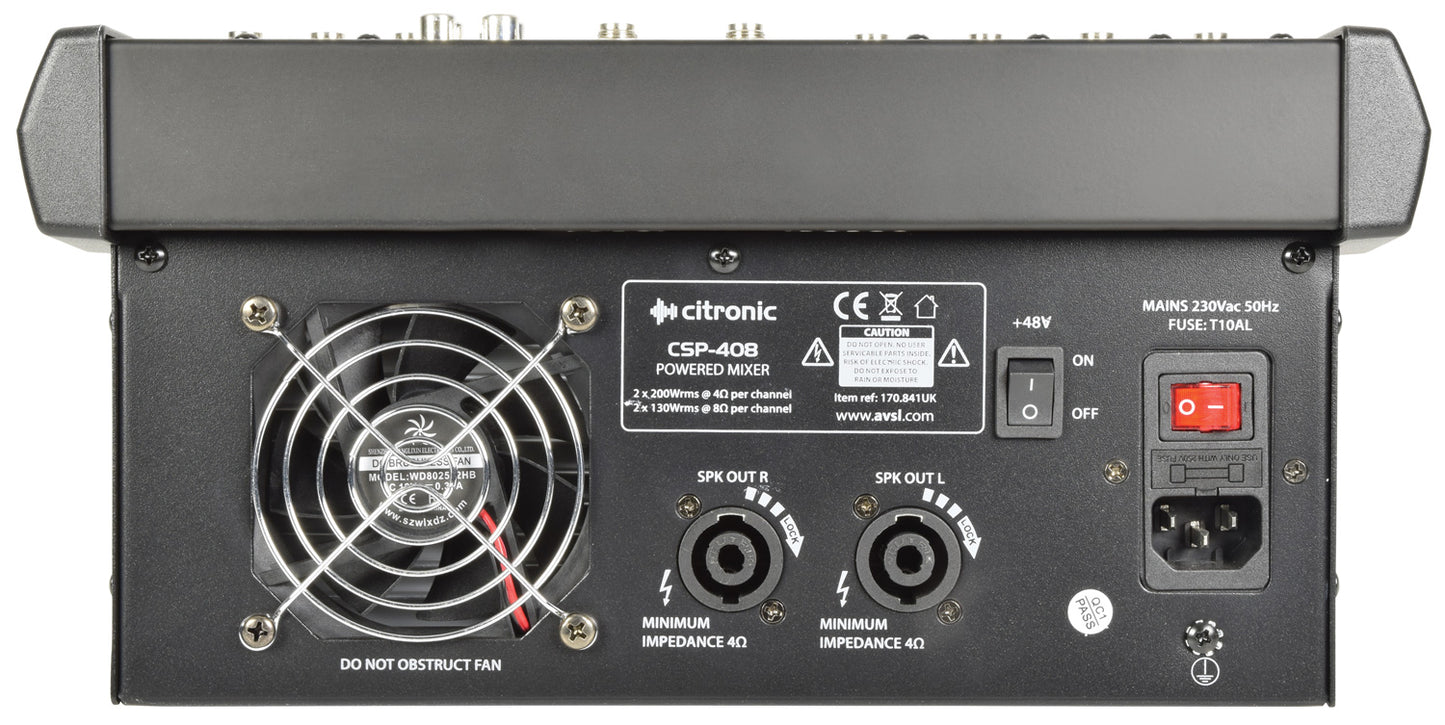

Fuse: T10A (5 x 20mm, 250V)

Power consumption: 600W

Power supply: 230Vac 50Hz (IEC)

Speaker (outputs): L+R SPK connectors

Effects: 16 program DSP (24-bit sigma-delta, 40khz)

Phantom power: +48V (XLR inputs)

Frequency response: 20Hz-30kHz (0.5dB)

Input level: +24dBu

Output level (line): +26dBu

CMRR: >74dB (mic 1kHz)

THD +N: <0.01% (channel to main out)

Crosstalk: >85dB (fader mute), >82dB (channel)

Noise RMS (22Hz-22kHz): -122dBu (EIN), -82dBu (mix)

EQ (high): 12kHz ±15dB shelving

EQ (mid): 2.5kHz ±15dB band pass

EQ (low): 80Hz ±15dB shelving

Input impedance mic (balanced): 2k Ohms

Input impedance line (balanced): 10k Ohms

Sensitivity (mic): -60 to +14dBu

Sensitivity (line): -40 to +14dBu

2-track: 2 x RCA in & out (-2dBu)

Output impedance: <75 Ohms

Headphone output: 6.3mm jack, 30-600 Ohms
