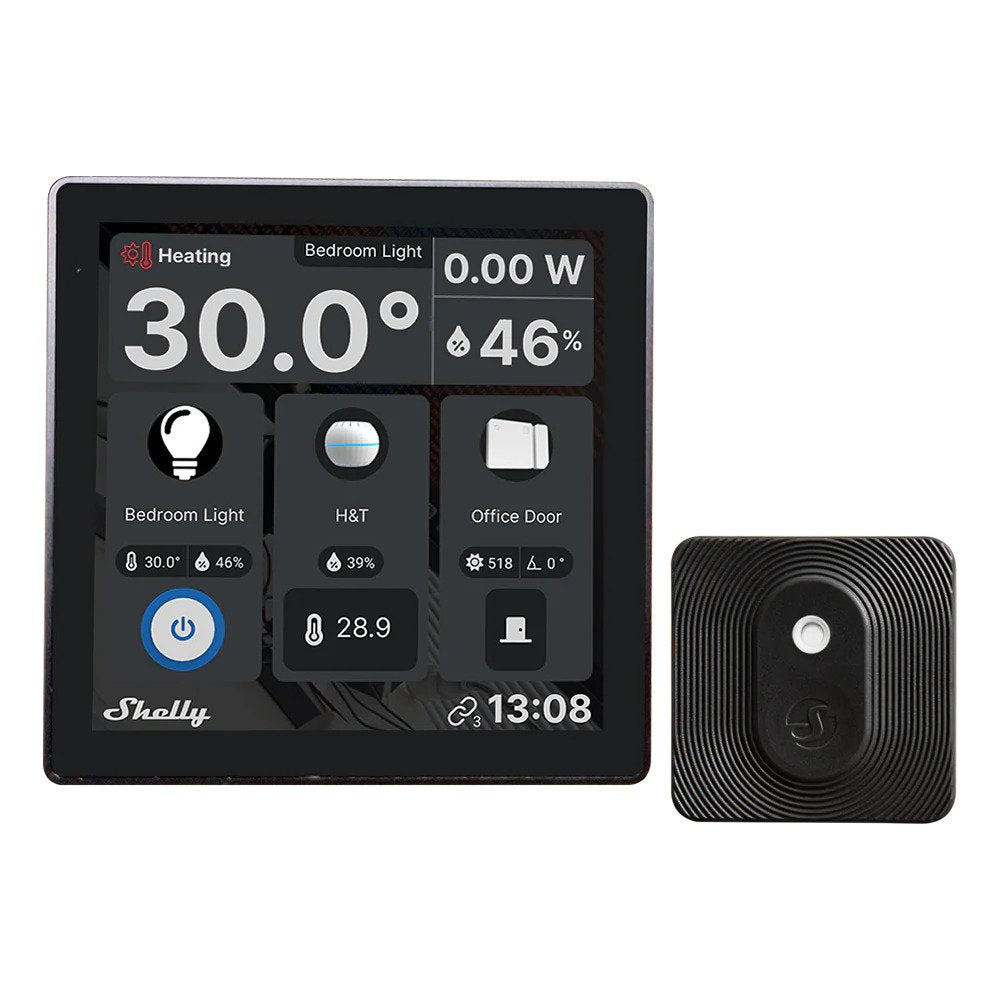

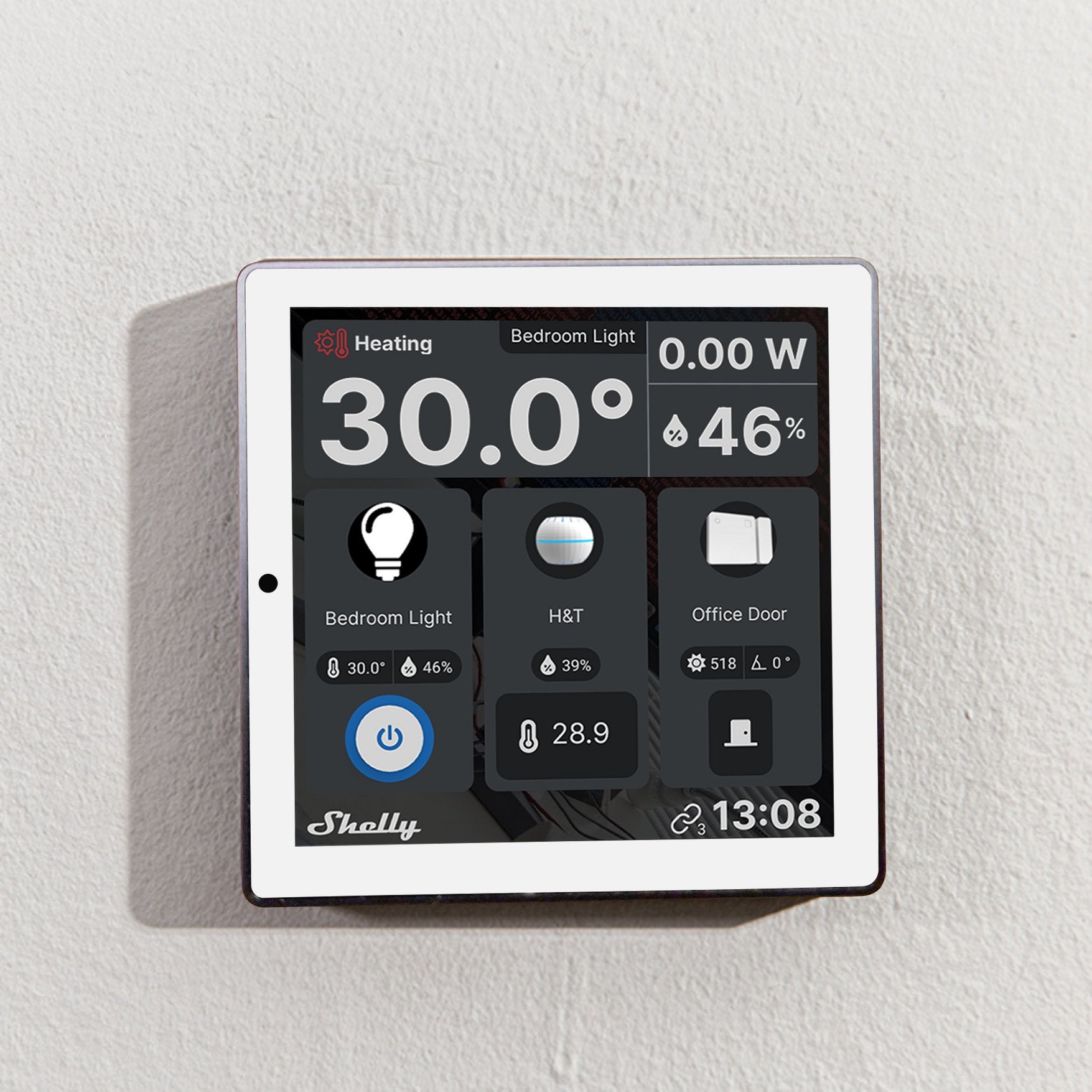

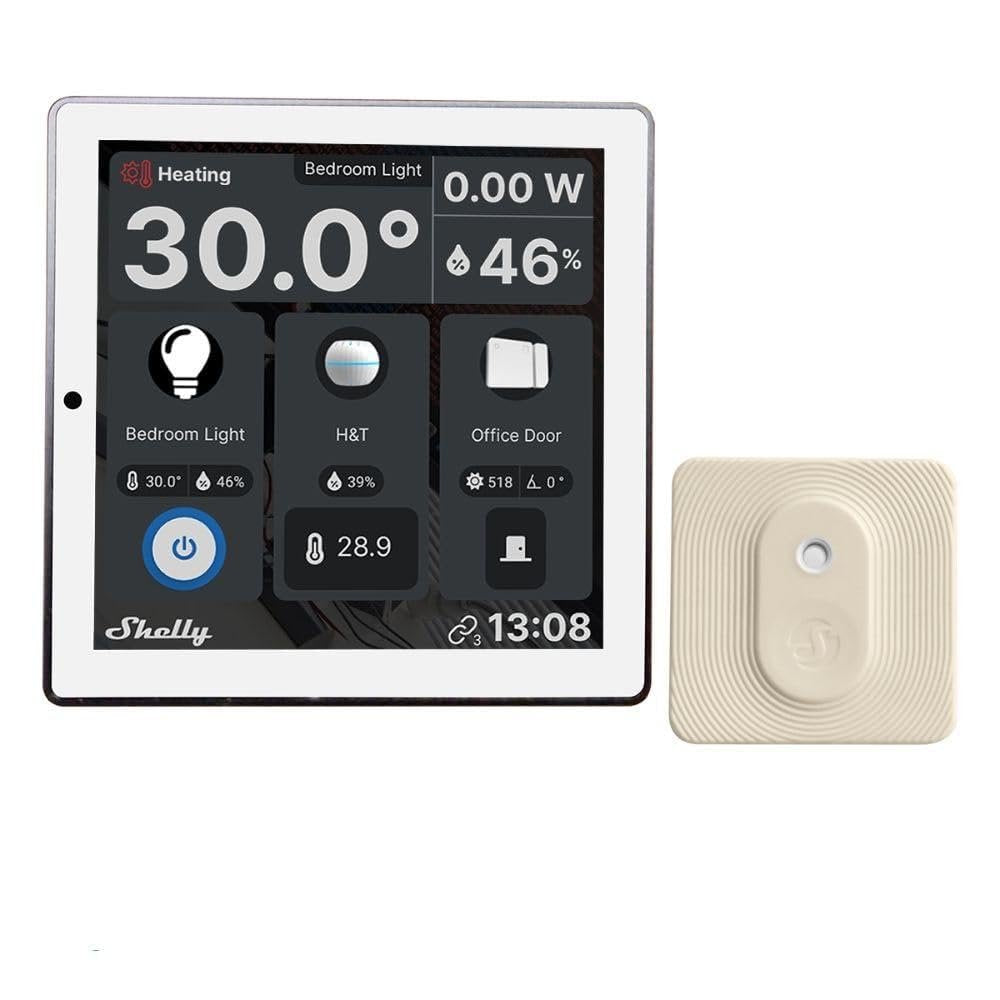

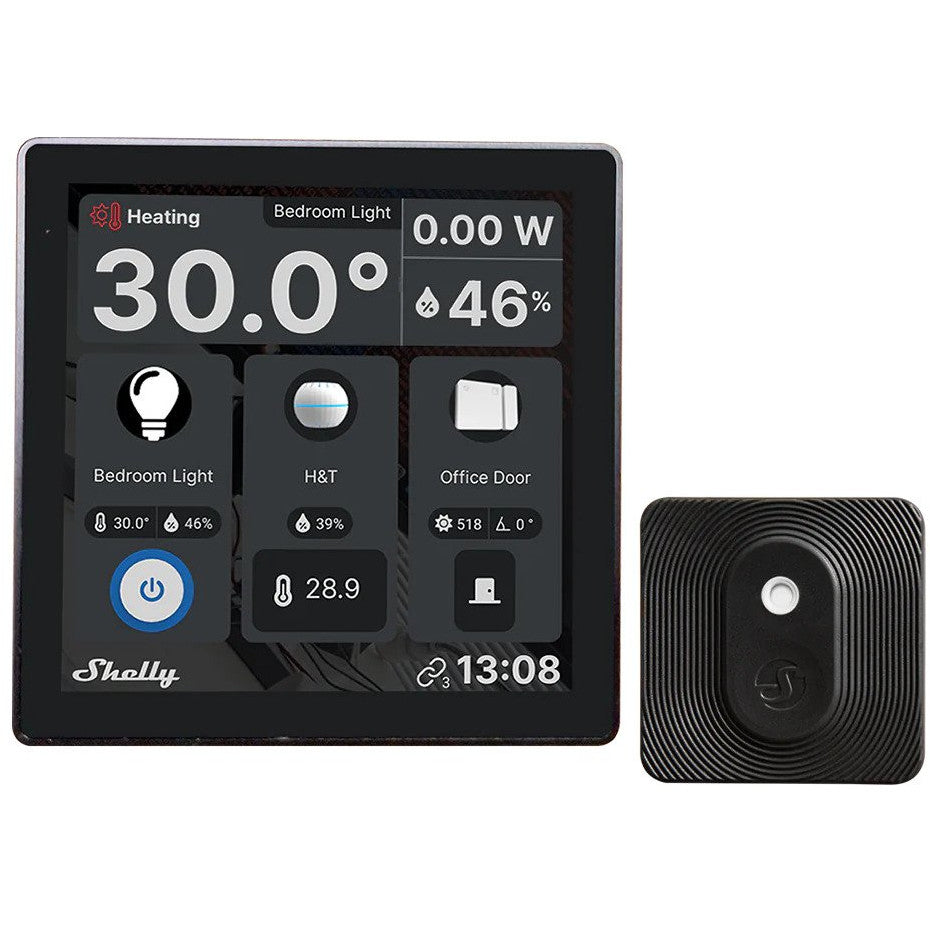

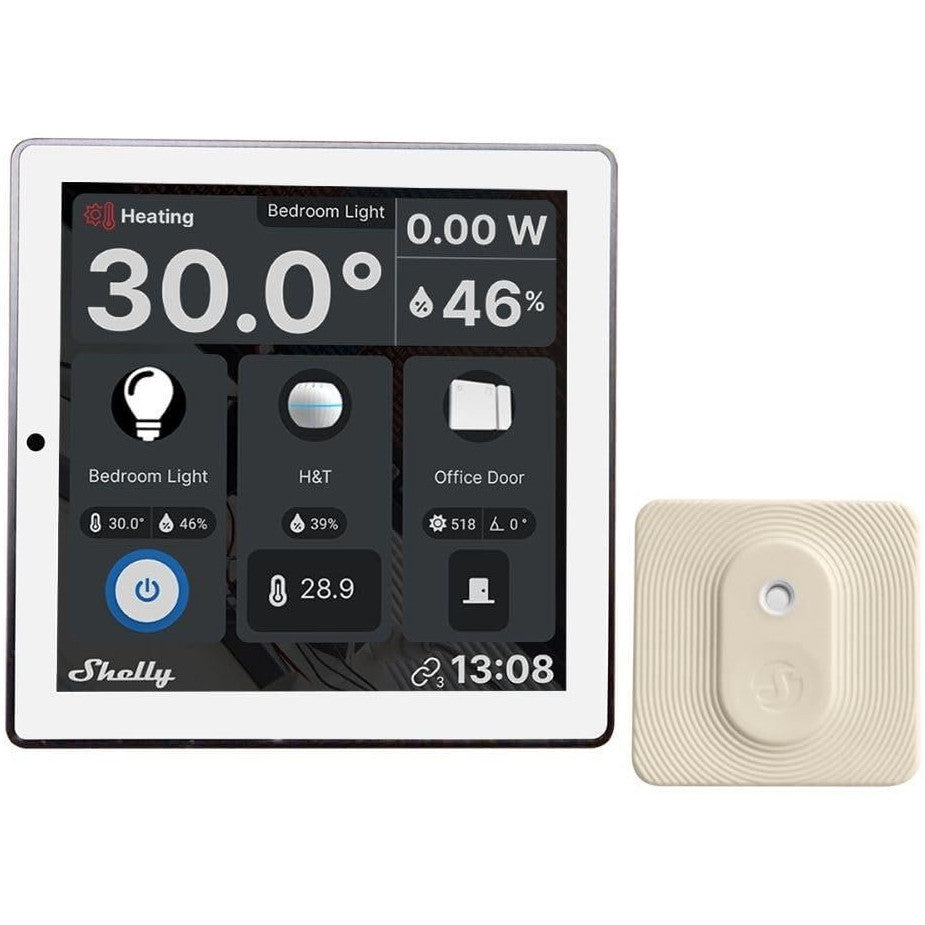

Shelly Wall Display with BLU H&T Temperature & Humidity Sensor

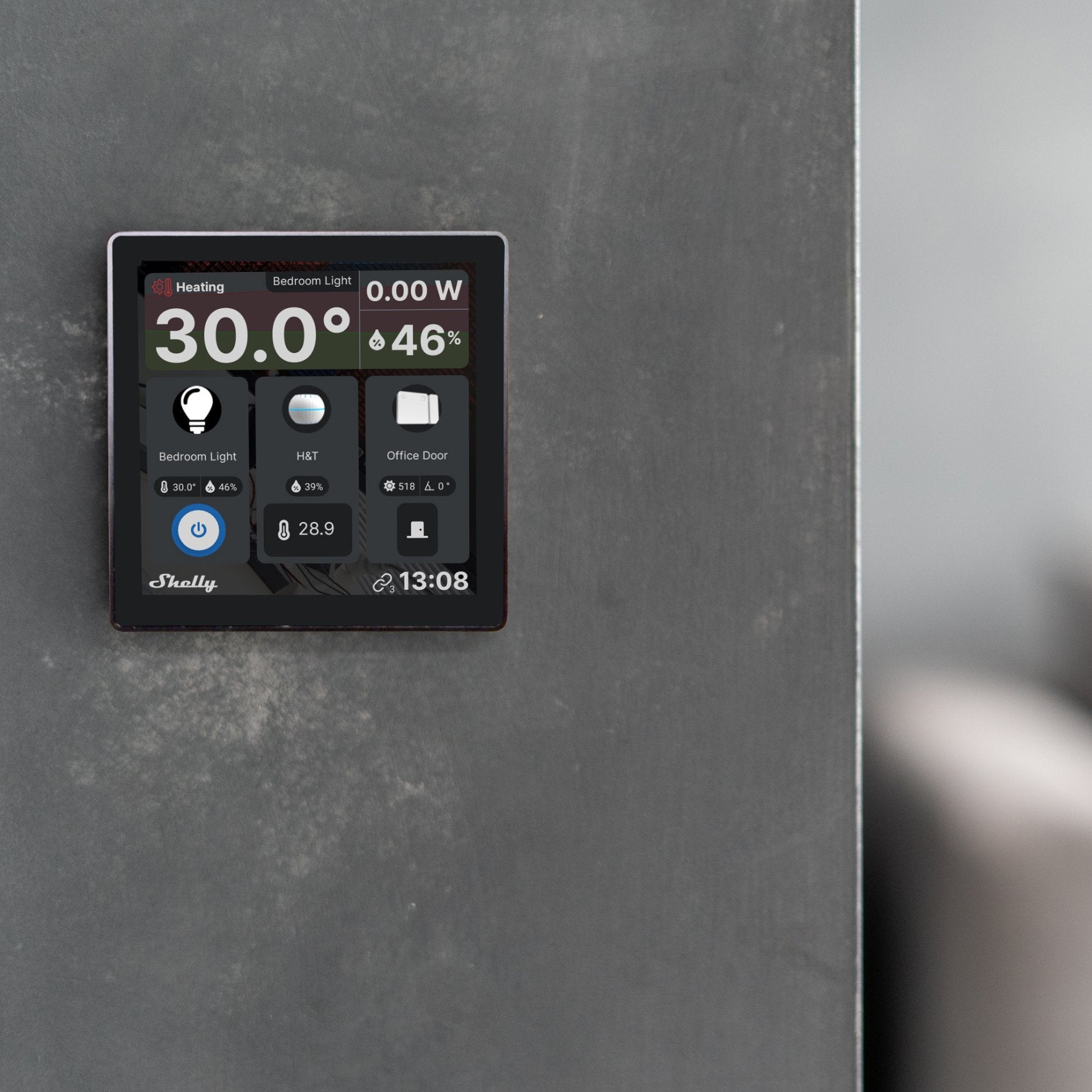

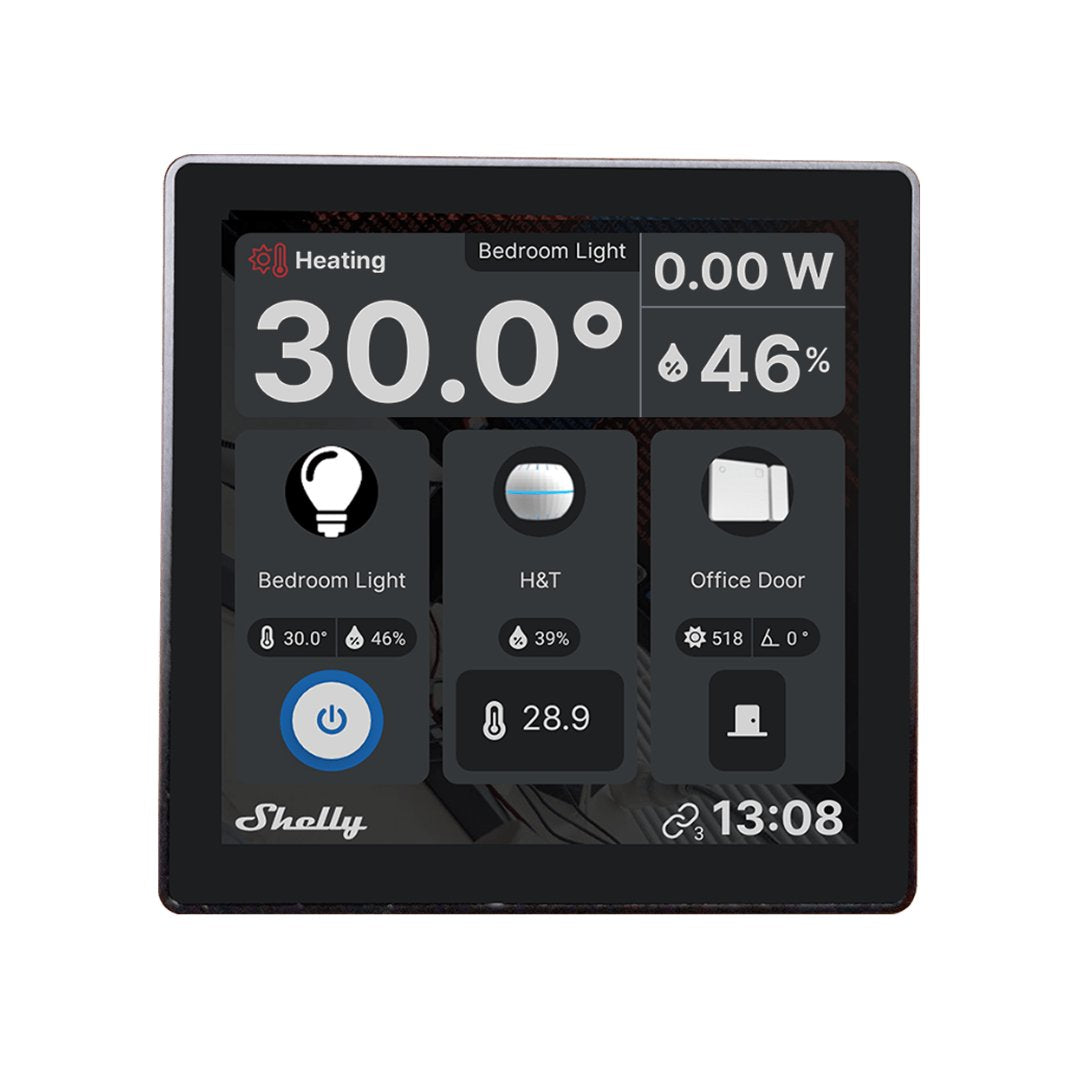

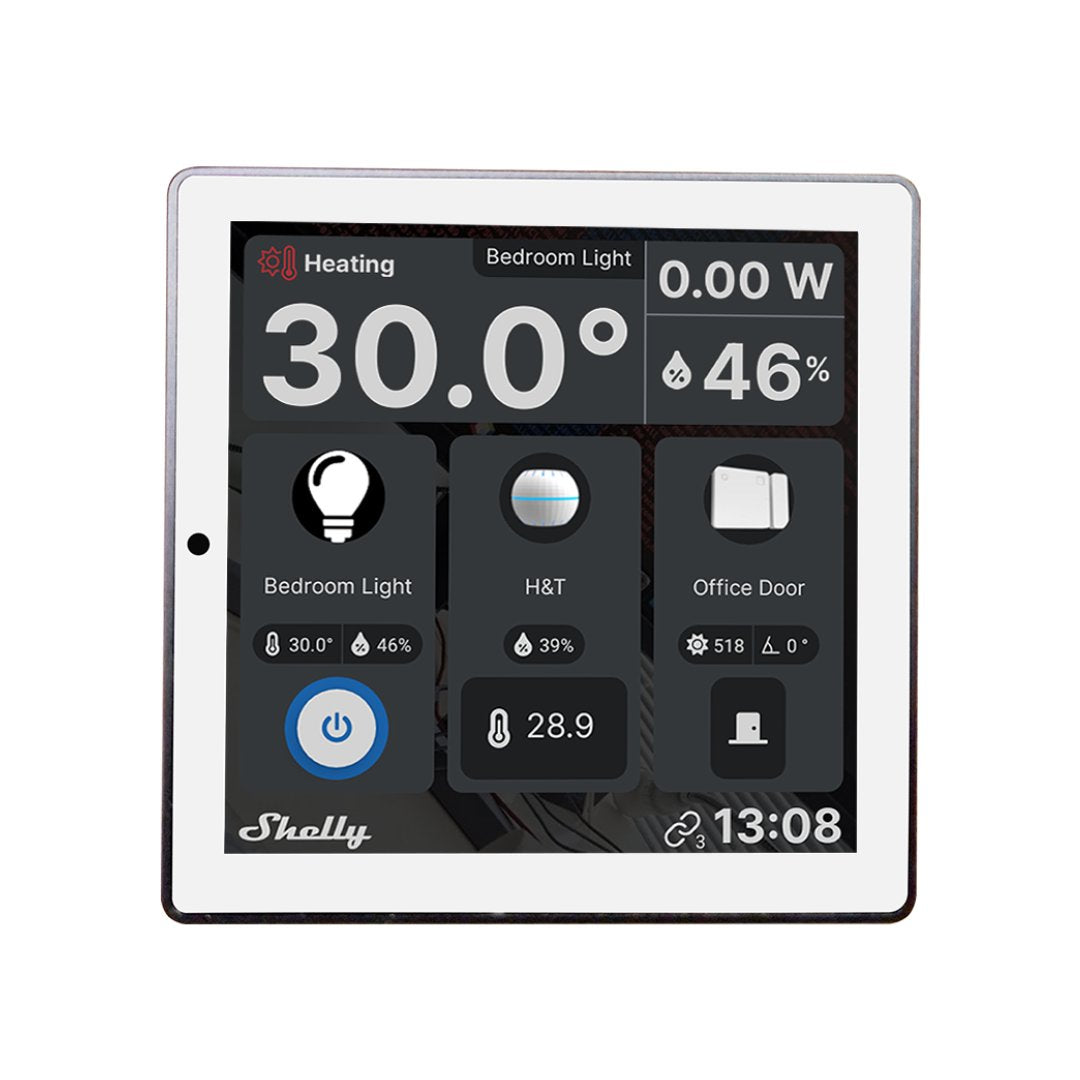

The Shelly Wall Display is a sophisticated 4-inch display that brings intuitive control and seamless monitoring to every corner of your smart home. Say goodbye to your ordinary switches - now, you can effortlessly turn your devices on/off with a simple touch. Whether it's dimming the lights, adjusting the room's ambiance, or ensuring optimal energy efficiency, this smart control panel makes home management simple. The highly customizable home screen becomes a reflection of your preferences, offering a quick glimpse of essential smart home details like temperature, humidity, and power consumption of the room. It also features a built-in 5 A switch, which is a breeze to operate; a quick tap with two fingers lets you switch it on or off without the need to look.

Features

Integrated 5 A relay for appliance control; neutral required

Power consumption monitoring of all devices in your chosen room

Can function as a room thermostat together with Shelly BLU H&T- a Bluetooth temperature & humidity sensor for instant environmental data

Colour display

Easy navigation and customizable homescreen and brightness

Create scenes and schedules

Main interface is now updated with added Media Player

Sonos integration

Screensaver mode

Specifications

Physical

Size (HxWxD): 85x85x30 mm / 3.35x3.35x1.18 inch

Weight: 180 g / 6.35 oz

Screw terminals max torque: 0.4 Nm / 4.43 lbin

Conductor cross section: 0.5 to 2.5 mm² / 20 to 14 AWG (solid, stranded, and bootlace ferrules)

Conductor stripped length: 6 to 7 mm / 0.24 to 0.28 in

Mounting: Wall box

Shell material: Plastic, aluminium, glass

Environmental

Ambient working temperature: -20 °C to 40 °C / -5 °F to 105 °F

Humidity: 30 % to 70 % RH

Max. altitude: 2000 m / 6562 ft

Electrical

Power supply: 230 VAC, 50/60Hz

Power consumption: < 1 W

Output circuits ratings

Max. switching voltage: 230 VAC

Max. switching current: 5 A

Sensors, meters

Internal-temperature sensor: No

Ambient temperature sensor Yes

Humidity sensor: Yes

Light sensor: Yes

Wi-Fi

Protocol: 802.11 b/g/n

RF band: 2401 - 2495 МHz

Max. RF power: < 20 dBm

Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)

Bluetooth

Protocol: 4.2

RF band: 2400 - 2483.5 MHz

Max. RF power: < 4 dBm

Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)

Microcontroller unit

CPU: MTK6580

RAM: 1 GB

Flash: 8 GB

Firmware capabilities

Schedules :20

Webhooks (URL actions): 20 with 2 URLs per hook…

Scripting: No

MQTT: Yes
