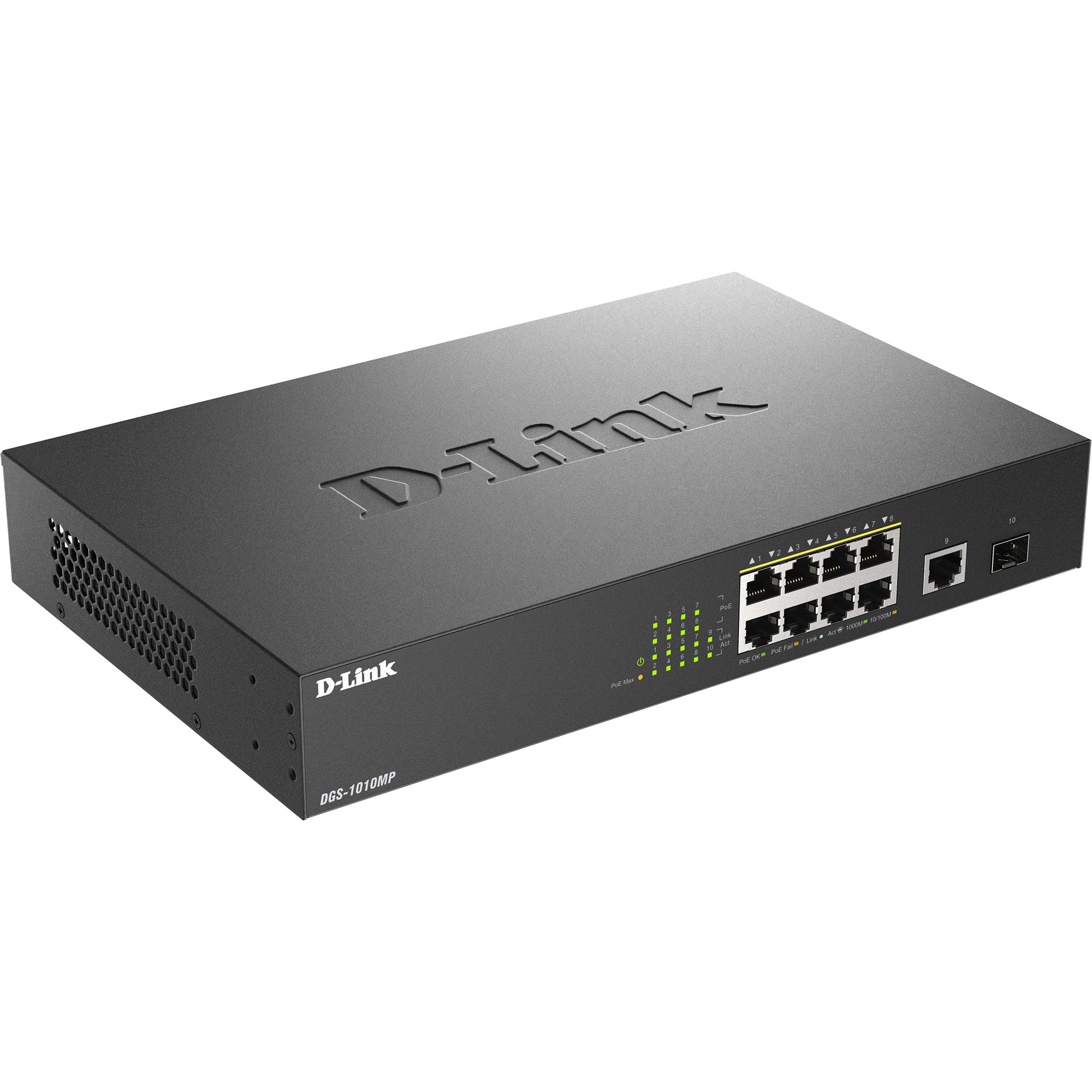

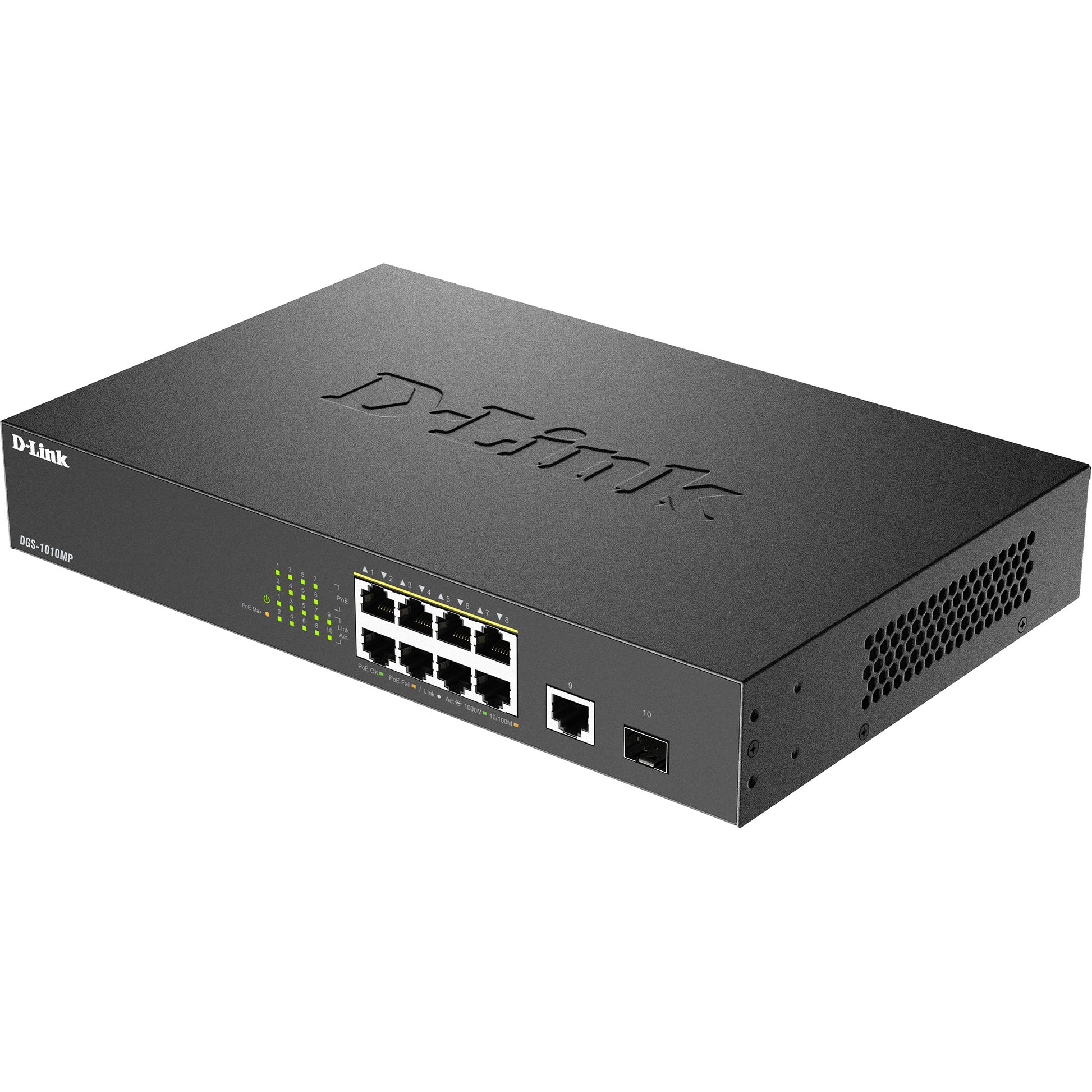

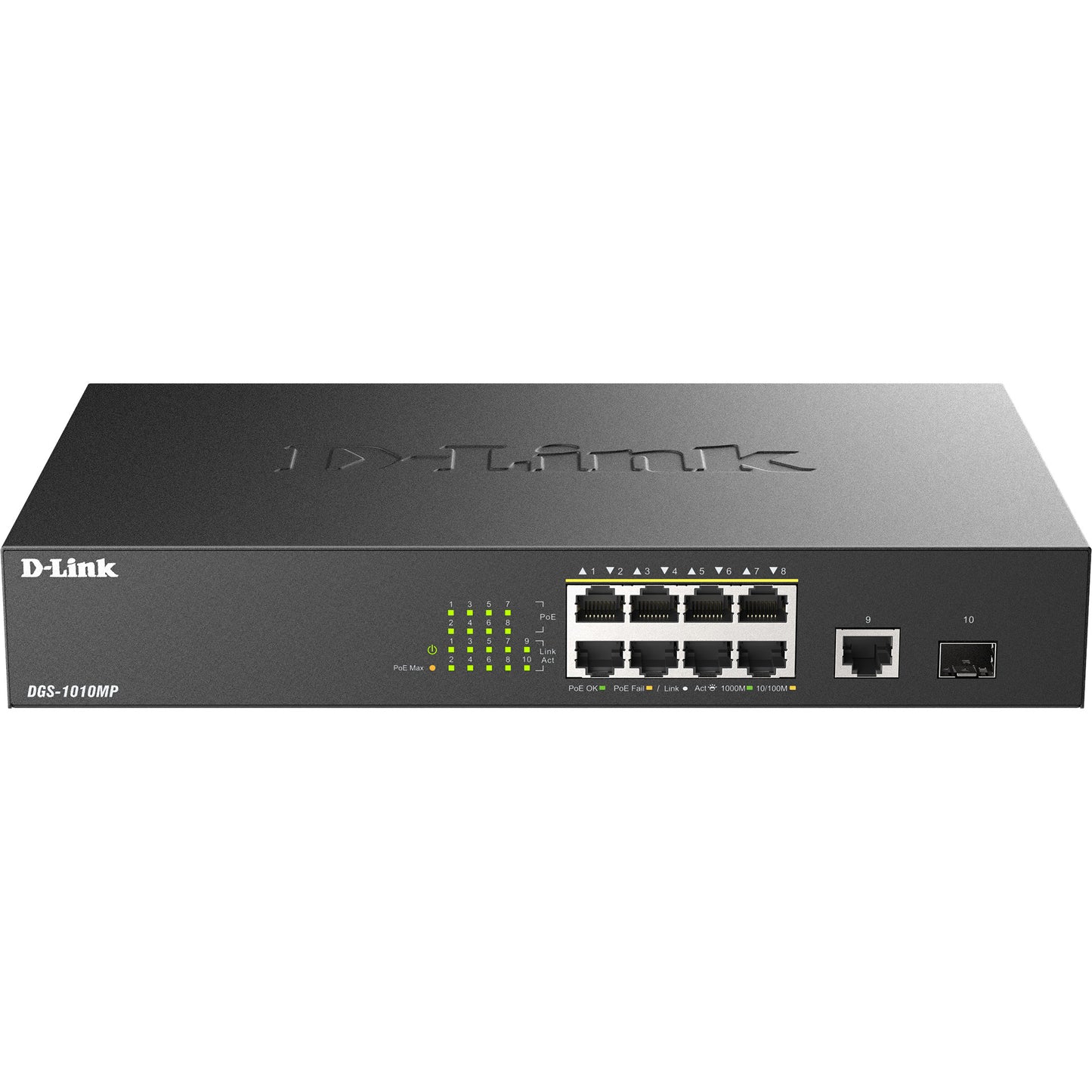

D-Link 10-Port Desktop Gigabit PoE+ Switch

About this product

Effortless Gigabit Network Expansion

The D-Link 10-Port Desktop Gigabit PoE+ Switch is an ideal solution for small offices and enterprise environments looking to expand the network with Gigabit connectivity. With eight Power over Ethernet (PoE) ports, you can power more PoE-capable cameras, access points, and VoIP phones using standard Ethernet cabling. And its one Gigabit Ethernet and one SFP uplink port allow for additional connections to storage or an uplink network.

PoE

The DGS-1010MP features eight 10/100/1000BASE-T ports that support the IEEE 802.3at Power over Ethernet (PoE) standard. This allows devices to be installed in locations without any power outlets, saving on installation costs and reducing the time it takes to install new devices.

Superior Performance

The switch features one Gigabit Ethernet and one SFP uplink port for high-speed connections to remote storage or for long distance fiber connections to an uplink network. It also incorporates store-and-forward switching to maximize network performance while minimizing packet loss during data transmission.

Compact & Silent Design

The DGS-1010MP has a compact 11” design, so that it can be deployed in any easily accessible location on the work floor, allowing you to power a set of PoE-powered devices while avoiding excessive cable clutter. The switch also has a fanless design, guaranteeing a quiet working environment.

Green Technology

The DGS-1010MP supports IEEE 802.3az Energy-Efficient Ethernet (EEE), reducing power consumption of the switch when network utilization is low and minimizing operating costs during periods of inactivity. By using EEE-compliant devices with the DGS-1010MP, organizations can noticeably reduce power consumption by having the switch automatically put ports into sleep mode when they are not being used.

Specifications

Weight: 1.84 kgs

Fanless

Dimensions: 280 x 180 x 44 mm(11.02 x 7.08 x 1.73 in)

Max Power Consumption: PoE on: 133.8W

Power Input: 100 to 240 V AC

Packet Buffer Size: 1.5Mbits

Switching Capacity: 20 Gbps

Interfaces:

1 x 1000Base-T

8 x 1000Base-T PoE

1 x 1000M SFP

Auto MDI/MDIX

Maximum Forwarding Rate: 14.88 Mpps

Temperature (Operating): 0 ~ 40 °C

Temperature (Storage): -10 - 70 ˚C

Humidity (Operating): 0% - 95% RH

Humidity (Storage): 0% - 95% RH

Operating Altitude: 2000 m

PoE Power Budget: 125 W
