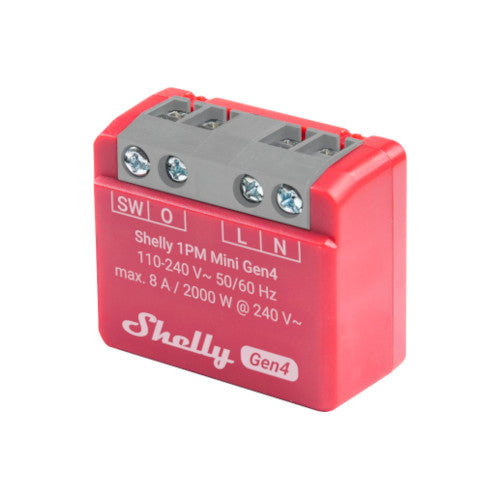

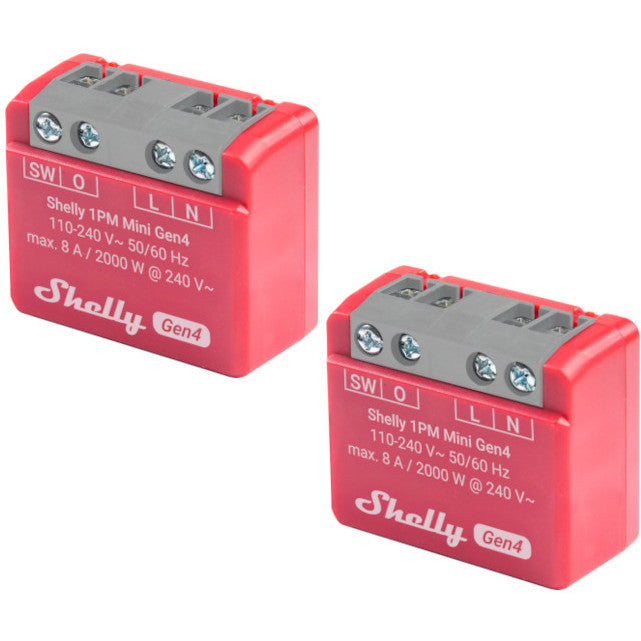

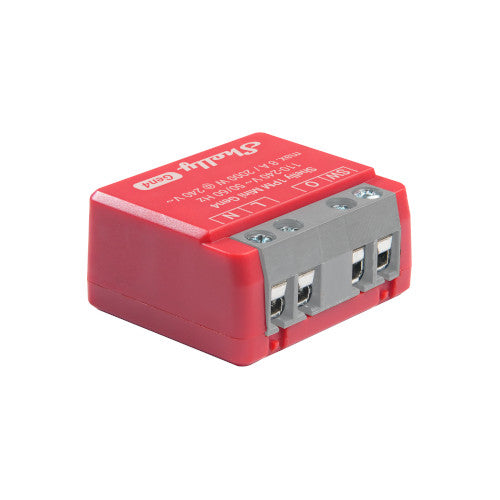

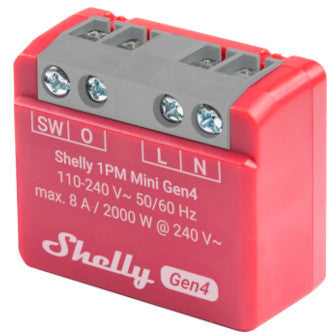

Shelly 1PM Mini Gen4 WiFi/Zigbee-Operated 8A Relay Switch with Power Monitoring

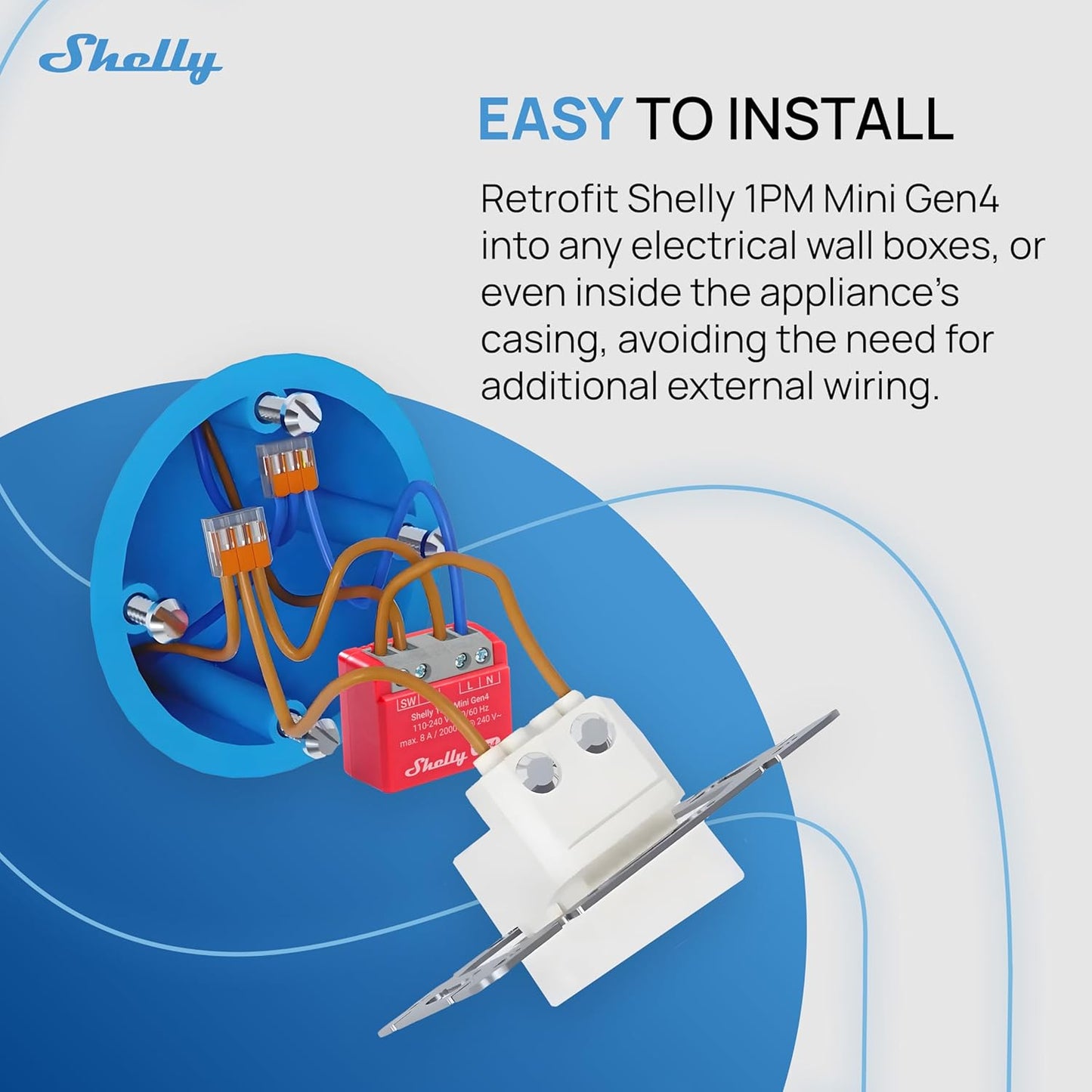

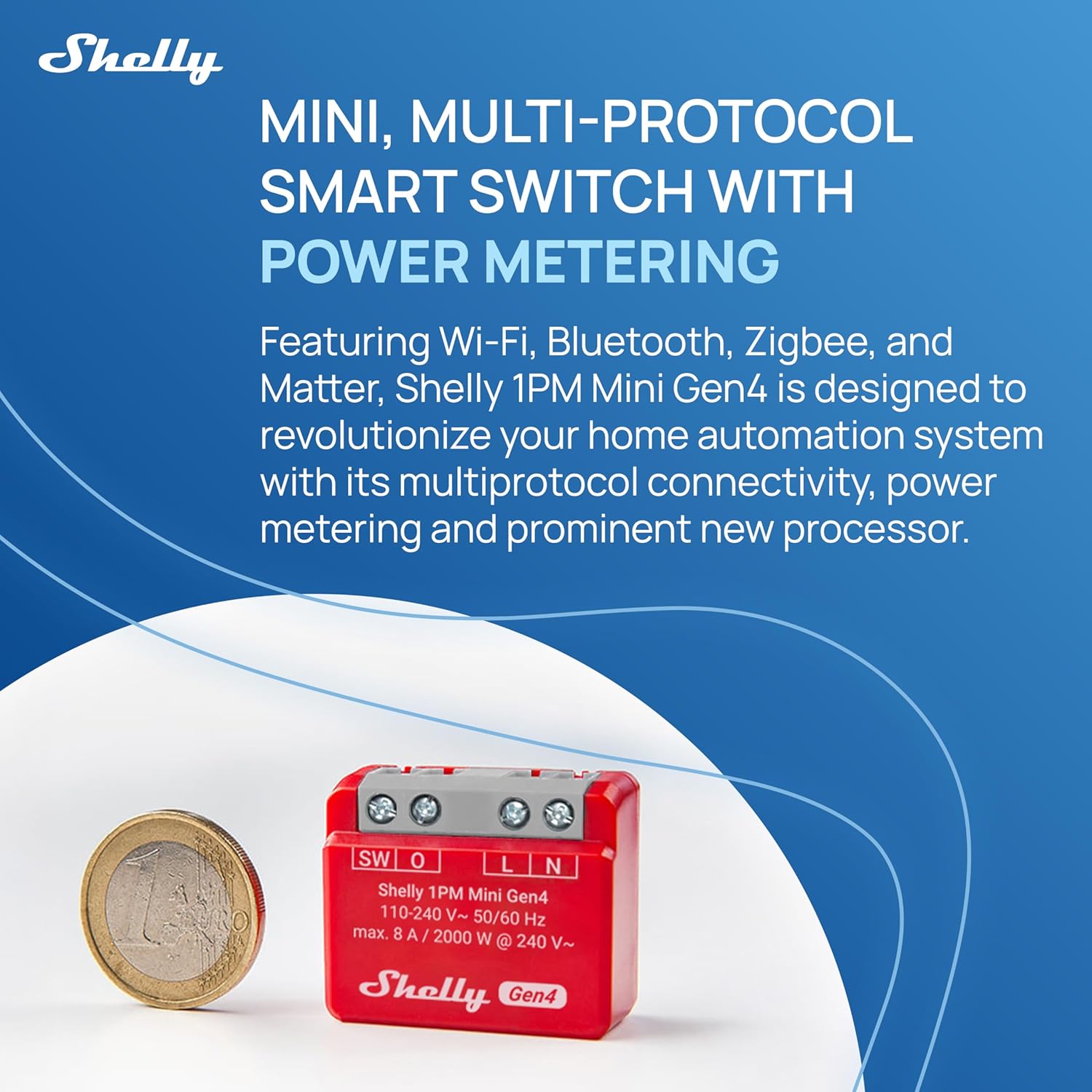

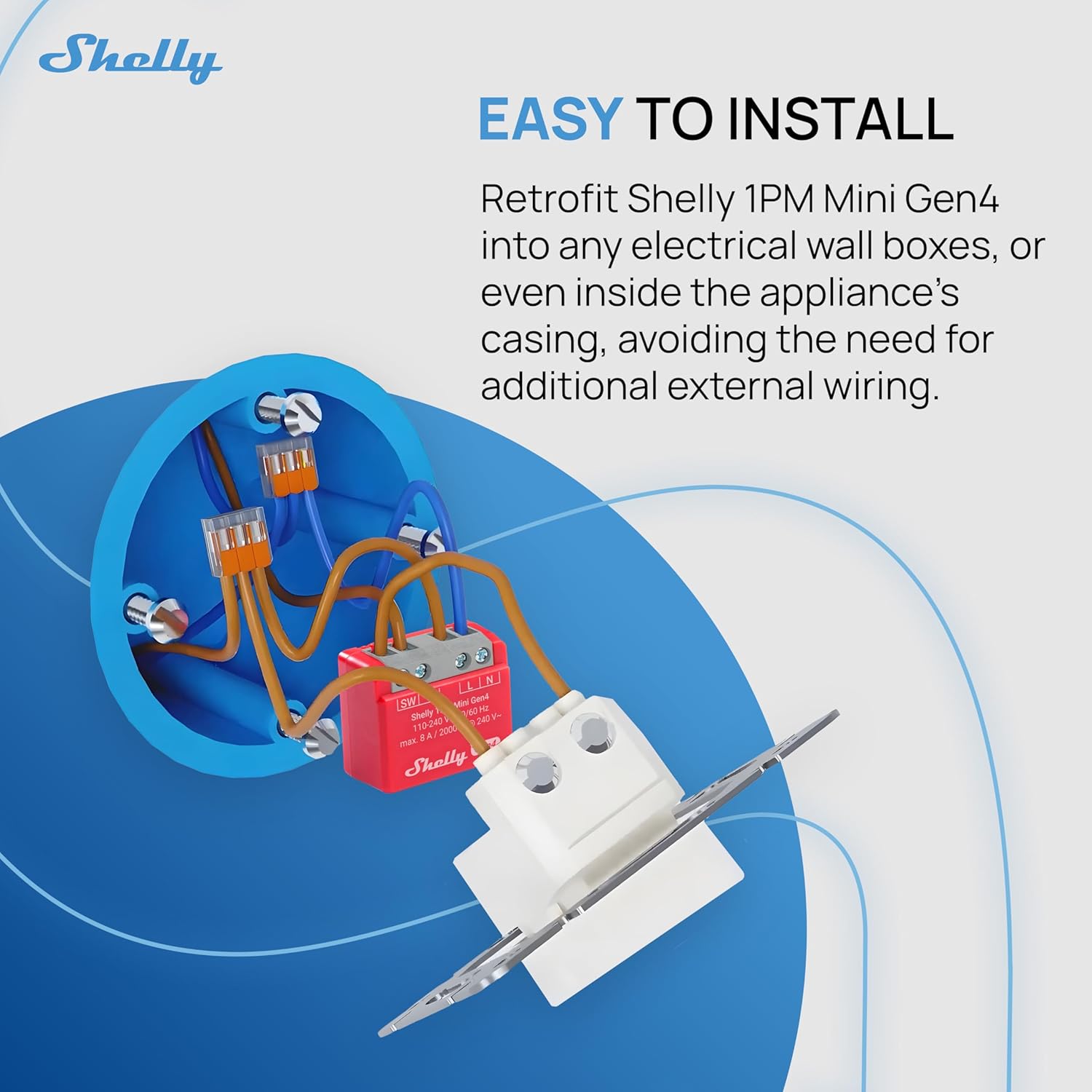

The smallest relay switch in the world for smart control and precise power monitoring. Automate your lights or small electrical appliances in less than 10 minutes and control and monitor them from anywhere. Small enough to fit behind any wall switch or socket, the Shelly 1PM Mini Gen4 can be retrofitted and is highly compatible with your existing smart ecosystem.​

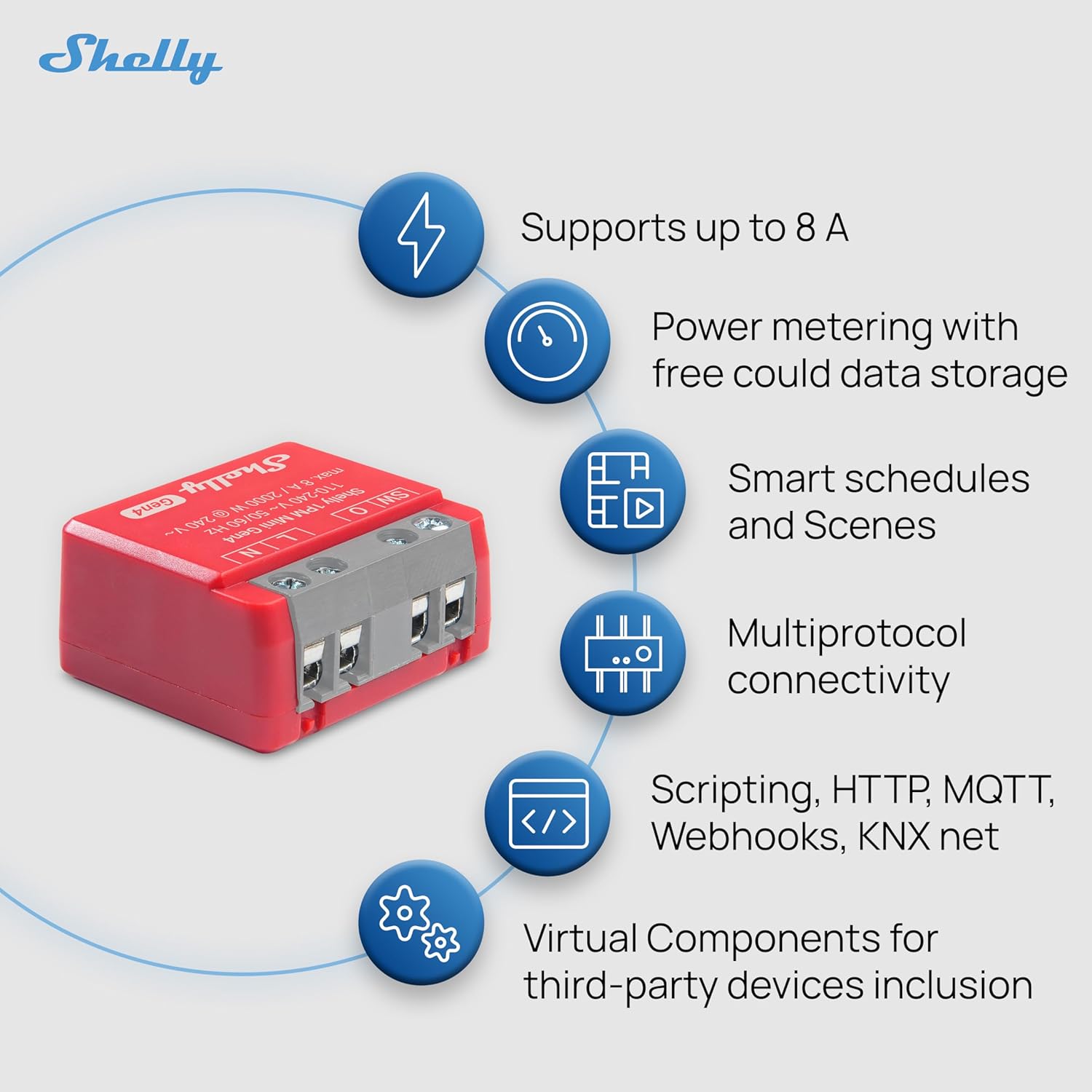

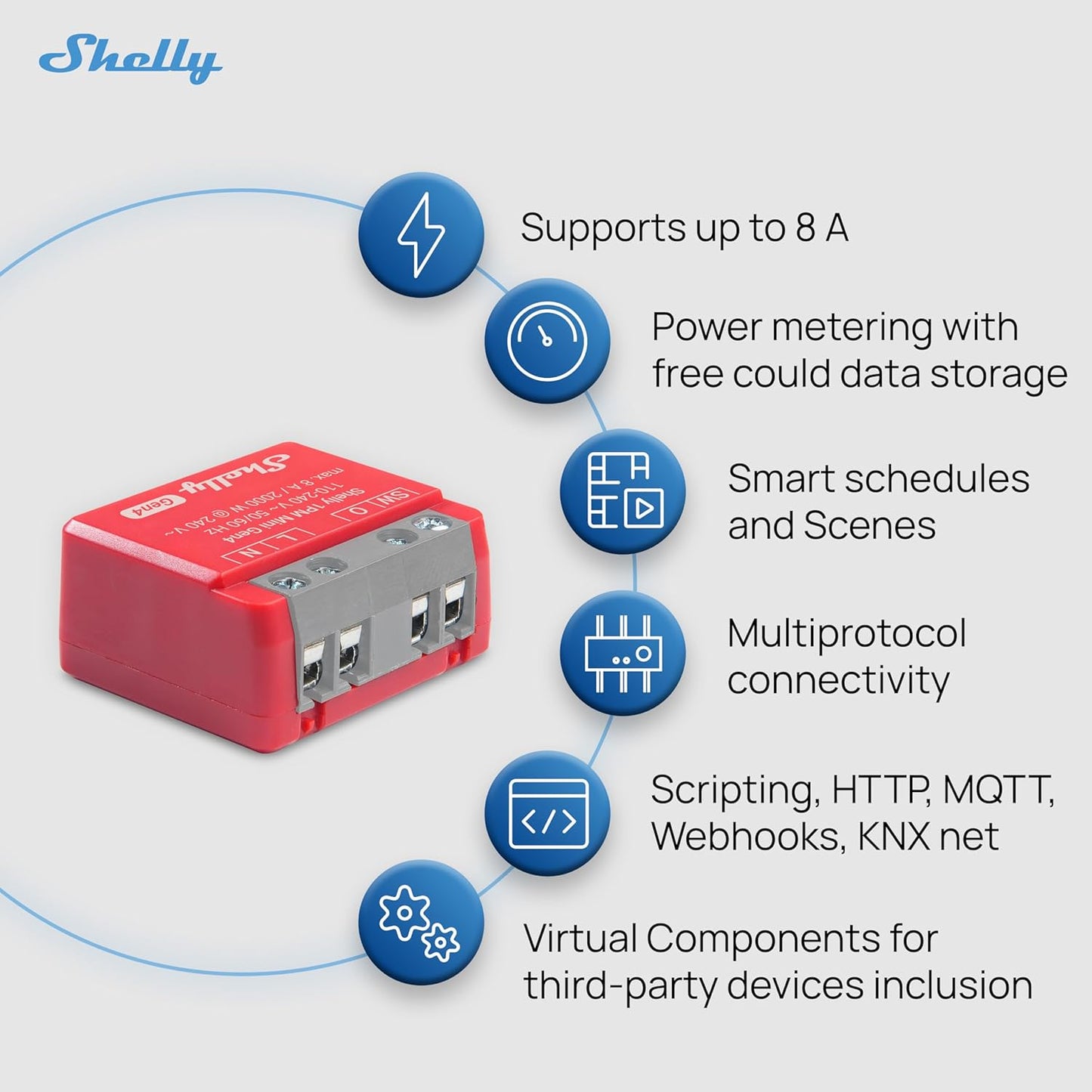

Shelly 1PM Mini Gen4 brings powerful upgrades to the popular Shelly 1PM Mini device. With new multiprotocol connectivity, you can choose the protocol that best suits your home network - Zigbee, Matter, WiFi, or Bluetooth. An improved processor ensures faster responses and smoother performance of your automations. Shelly 1PM Mini Gen4 continues to be the perfect retrofit solution for your lights and appliances, now with enhanced compatibility and speed, all in its usual compact and easy-to-install design.

Experience next-level smart home automation with Shelly Gen4 devices. Gen4 devices offer multi-protocol connectivity, featuring WiFi, Bluetooth, Zigbee, and Matter. Choose your connection and set up your Shelly device to work with your preferred smart home network.

Precise and real-time power metering with free cloud data storage for analysis and energy usage optimization.​

New processor - ESP-Shelly-C68F chip with an increased memory of 8MB

New - Multiprotocol connectivity: Choose from Bluetooth, WiFi or Zigbee

New - Matter certified.

New - Works with Apple Homekit: Control connected devices using the Apple Home app or Siri through Matter

Improved durability of terminals

Supports up to 8A at 240V AC​

WiFi/Zigbee extender & Bluetooth gateway

No hub required! Easy control through the Shelly Smart Control app, most platforms and protocols, as well as voice assistants. Use it with Alexa, Home Assistant or your preferred automation system

Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates

Specifications

Power

Power supply: 110-240V ±10% 50/60Hz AC

Max switching voltage AC: 240V

Max switching voltage DC: N/A

Max switching current AC: 8A

Max switching current DC: N/A

Max switching power AC: 2000W

Max switching power DC: N/A

Power consumption: < 1.2W

External protection:

10A, tripping characteristic B or C

6kA interrupting rating

Energy limiting class 3

Features

Clean contact relay: No

Power measurement: Yes

Voltage protection / Cutoff: Yes

Current protection / Cutoff: Yes

Max power protection / Cutoff: Yes

Internal-temperature sensor: Yes

Ambient temperature: -20°C to 40°C / -5°F to 105°F

Humidity: 30% to 70% RH

Schedules: 20

Webhooks (URL actions): 20 with 5 URLs per hook

MQTT: Yes

UDP: Yes

Scripting: Yes

Connectivity

Wireless/WiFi Protocol: 802.11 b/g/n/ax (2.4 GHz)

Frequency: 2402-2480 MHz

Wi-Fi Range (depending on local construction):

Up to 50m/160ft outdoors

Up to 30m/100ft indoors

Zigbee Protocol: 802.15.4

Zigbee Repeater: Yes

Zigbee RF Bands: 2400-2483.5 MHz

Zigbee Range (depending on local construction):

Up to 300m outdoors

Up to 100m indoors

Bluetooth Protocol: 4.2

Bluetooth Range (depending on local construction):

Up to 30m/100ft outdoors

Up to 10m/33ft indoors

Dimensions

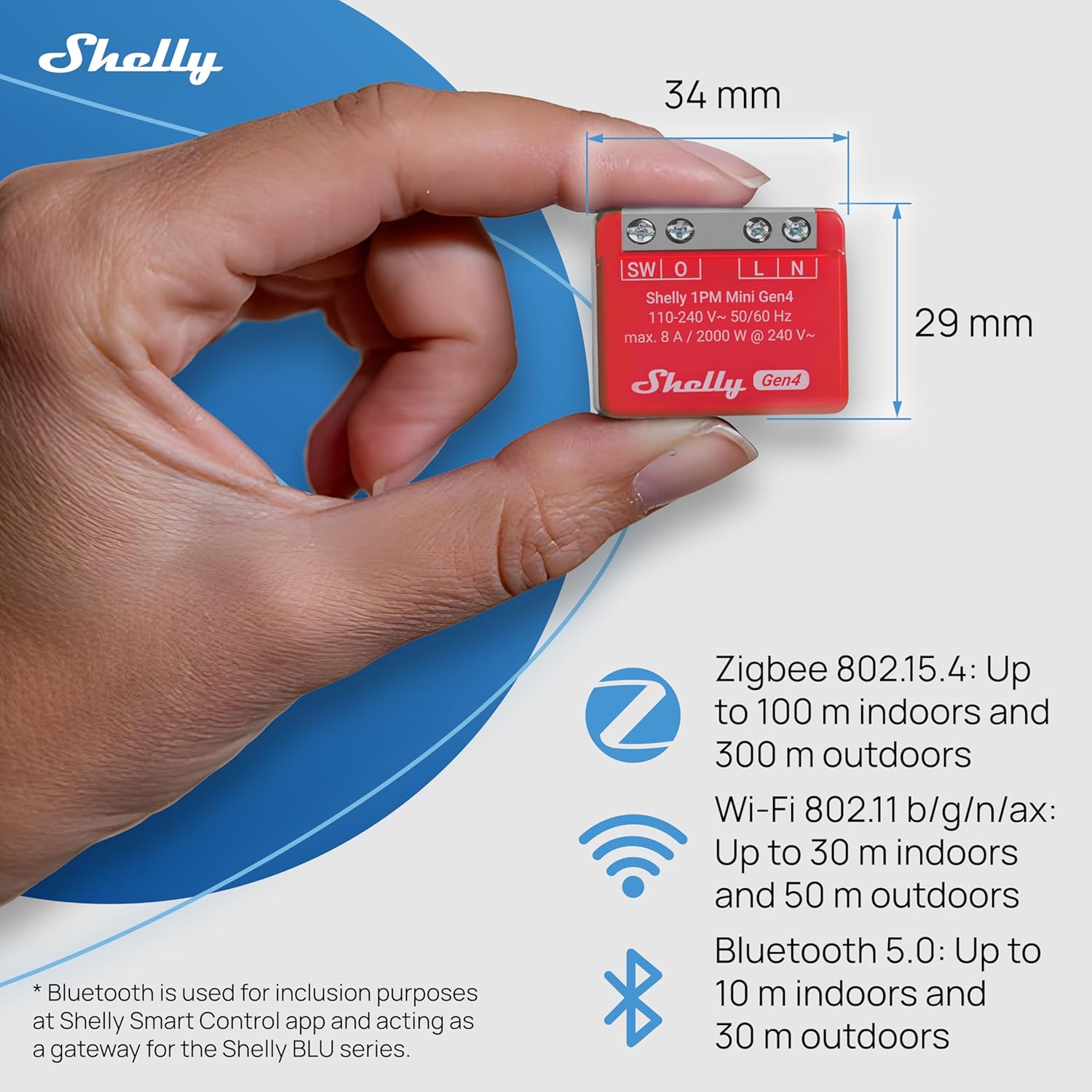

(H x W x L): 29 x 35 x 16 ±0.5 mm / 1.11 x 1.35 x 0.63 ±0.02 in
