Shelly BLU Gateway Bluetooth to Wi-Fi USB-A Dongle

The Shelly BLU Gateway Bluetooth to Wi-Fi USB-A Dongle is a dongle which works as a bridge between your Shelly BLU devices and the wider Shelly ecosystem. It receives Bluetooth signals and sends them to the cloud or locally to another non-Bluetooth device. Now, all your Shelly devices – not just Plus and Pro – can seamlessly interact with your BLU devices.

USB Type-A plug

Scripting for local control

Supports MQTT, WebSocket or any other compatible home automation system, e.g. Home Assistant

Wi-Fi range extender

Can scan the Bluetooth network and find all other Bluetooth devices; can trigger actions on third-party devices using scripting

Specifications

Power

Power supply: 5V DC (from USB Type-A port)

Power consumption: < 1W

Features

Scripting: Yes

MQTT: Yes

Ambient temperature: -20°C to +40°C / -5°F to +105°F

Humidity: 30% to 70% RH

Connectivity

Wi-Fi Protocol: 802.11 b/g/n

Wi-Fi Radio frequency: 2400 - 2483.5 MHz

Wi-Fi Radio signal power: 1mW

WiFi range (depending on local construction):

• up to 50m outdoors

• up to 30m indoors

Bluetooth protocol: 4.2

Bluetooth range (depending on local construction):

• up to 30m outdoors

• up to 10m indoors

Dimensions

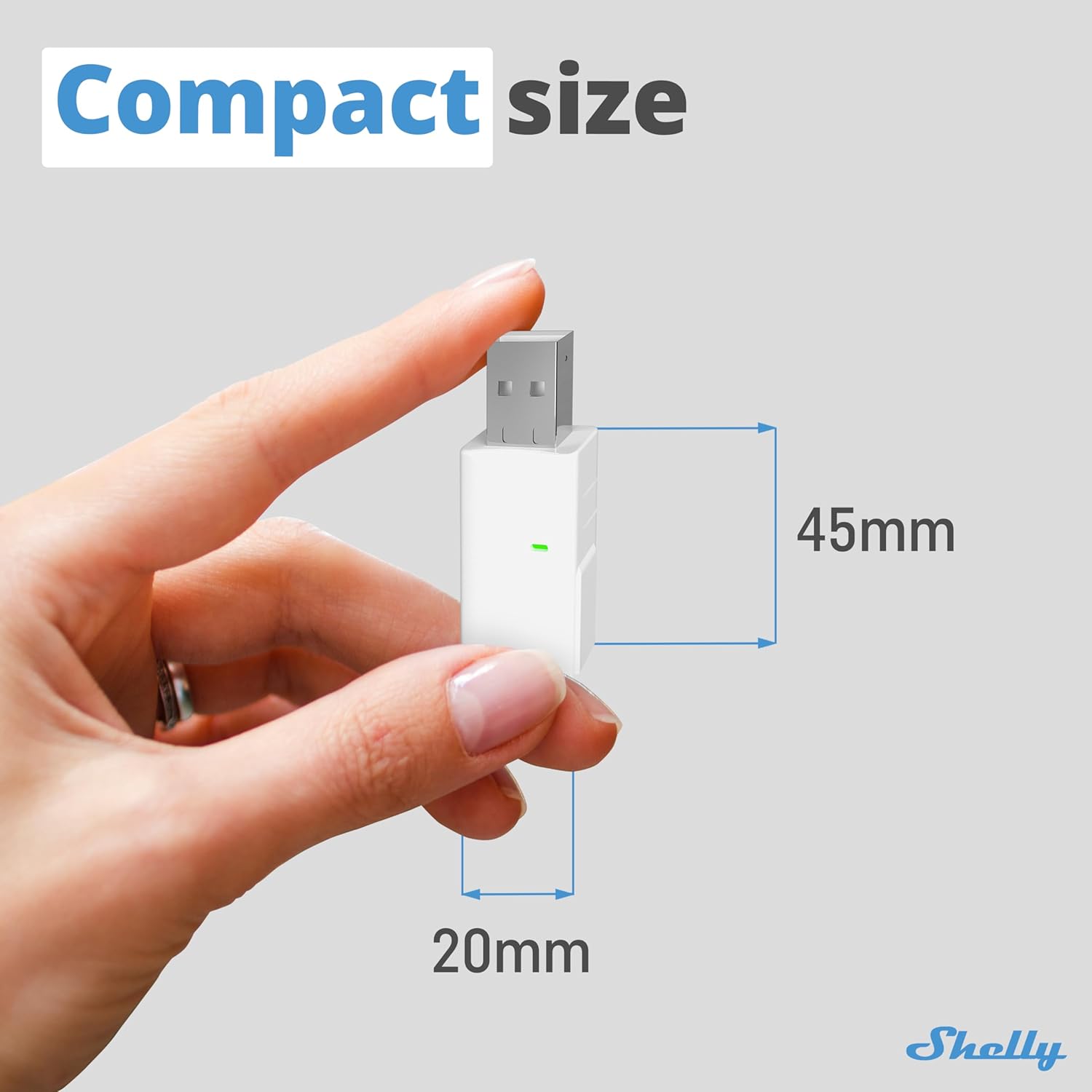

(H x W x L): 45 x 20 x 8 mm / 1.77 x 0.79 x 0.21 in
