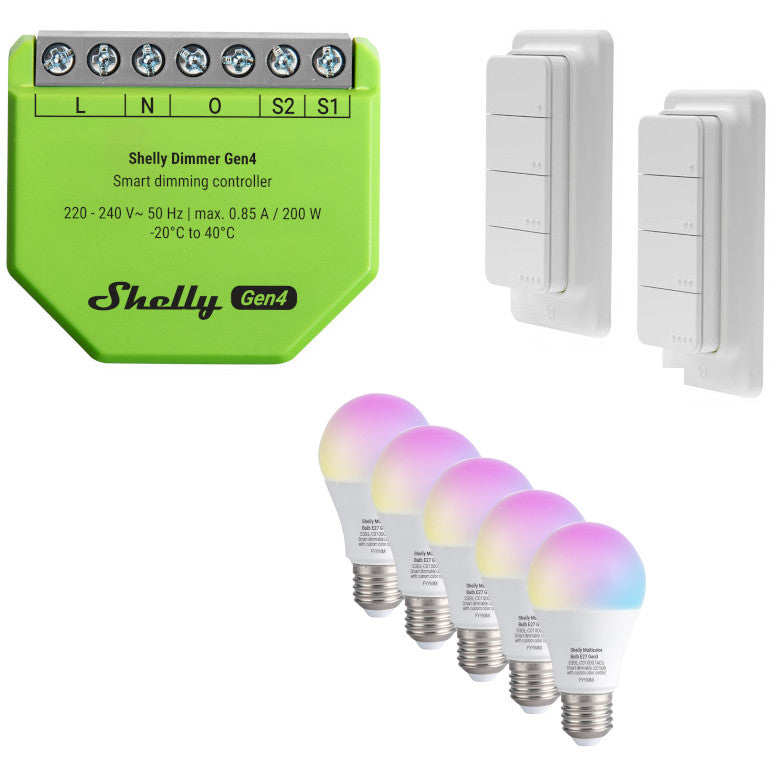

Shelly Smart Dimming Lighting Bundle

Take control of your smart lighting with the Shelly Smart Dimming Lighting Bundle. Use Shelly's handy guide to help you get everything in place.

Dimmer

The Shelly Dimmer Gen4 is a powerful, compact smart dimming controller designed to bring full lighting control into any space, without the need to rewire your home. Whether you have a neutral wire or not, it installs neatly behind your existing switches, instantly transforming traditional lighting into a fully automated, smart system. With support for WiFi, Bluetooth, Zigbee, and Matter, it integrates effortlessly into virtually any smart home setup, giving you complete flexibility now and in the future.

Engineered for precision, the Shelly Dimmer Gen4 allows you to fine-tune every aspect of your lighting. Adjust brightness levels, set custom fade rates, and control transition times to create exactly the atmosphere you want, whether it’s a soft evening glow or full brightness for productivity. It supports a wide range of dimmable lighting types, from LEDs to halogen, and even offers automatic calibration to ensure smooth, flicker-free dimming across the entire range. With built-in protections, scripting capabilities, and detailed scheduling options, it’s as suitable for advanced automation setups as it is for simple everyday use.

• Multiprotocol connectivity: WiFi, Bluetooth, Zigbee, and Matter

• Works with or without a neutral wire (bypass required under 20 W)

• Precise dimming control with adjustable fade rate and transition time

• Compatible with dimmable LEDs, halogen, and incandescent

• Compact design for easy retrofit behind existing switches

• Supports smart schedules, scenes, scripting, and local automations

• Works with Home Assistant, Alexa, Google Home, Apple HomeKit, and more

From upgrading existing lighting without changing your setup, to creating dynamic schedules that follow your daily routine or the natural daylight cycle, the Shelly Dimmer Gen4 adapts effortlessly to your needs. Whether in a home, office, or hospitality setting, it delivers smooth, intelligent lighting control that enhances comfort, efficiency, and ambience, all from a device you’ll never even see.

*Constant-voltage dimmable drivers are not supported.

Specifications

Power

Power Supply: 220-240V~ 50Hz

Power consumption: < 1.5W

Works without neutral: Yes

Min. load without neutral and without a Bypass: 20W

Dimming type: Trailing edge

Max. output power: 200W

External protection:

16A, tripping characteristic B or C

6kA interrupting rating

Energy limiting class 3

Features

Ambient working temperature: -20°C to 40°C / -5°F to 105°F

Humidity: 30% to 70% RH

Voltmeter range: 180V - 240V AC

Voltmeter accuracy: ±5% (when used with neutral)

Ammeter range: 0A - 3A

Ammeter accuracy: ±5% (when used with neutral)

Supported load types:

Dimmable LED lamps: up to 150W

Incandescent bulbs: up to 200W

Halogen lamps: up to 200W

Iron-core transformer with low-voltage incandescent lamps: up to 200VA

Dimmable constant-current electronic transformers: up to 200W

Connectivity

WiFi protocol: 802.11 b/g/n/ax (2.4 GHz)

WiFi RF band: 2401 - 2483 МHz

WiFi max. RF power: < 20dBm

WiFi Range (depending on local construction):

Up to 50m/160ft outdoors

Up to 30m/100ft indoors

Bluetooth protocol: 5.0

Bluetooth RF band: 2400 - 2483.5 MHz

Bluetooth max. RF power: < 4dBm

Bluetooth Range (depending on local construction):

Up to 30m/100ft outdoors

Up to 10m/33ft indoors

Zigbee Protocol: 802.15.4

Zigbee Repeater: Yes

Zigbee RF bands: 2400 to 2483.5 MHz

Zigbee Range (depending on local construction):

Up to 300m outdoors

Up to 100m indoors

Dimensions

(H x W x L): 38x42.5x16.5 mm / 1.50x1.67x0.65 inch

Remote Control

The Shelly BLU RC Button 4 ZB is a compact, wire-free smart remote that gives you powerful control over your home from anywhere. With four physical buttons and support for Zigbee and Bluetooth, it lets you manage lights, blinds, garage doors, appliances, and full automation scenes with effortless simplicity. Thanks to multi-click support, each button can trigger single, double, triple, or long-press actions, unlocking up to 16 customisable commands from one small device.

Designed for flexibility, the Shelly BLU RC Button 4 ZB can be carried in your pocket or mounted exactly where you need it. Built-in magnets, a magnetic holder, and a 3M adhesive patch allow you to place it on metal surfaces, walls, or next to existing switches with no wiring required. Its ultra-low power consumption delivers up to two years of battery life, while strong encryption ensures secure, reliable operation. LED indicators provide clear visual feedback for pairing and button presses, making everyday use intuitive and reassuring.

• Four programmable buttons with up to 16 click combinations

• Dual-protocol connectivity: Bluetooth and Zigbee

• Wire-free installation with magnets, holder, and 3M patch included

• Up to 2 years of battery life

• Beacon mode for presence-based automations

• High-level encryption for secure control

• Works out of the box with Home Assistant and BTHome-compatible systems

Whether you’re opening blinds with a tap, triggering a “Movie Night” scene, or controlling your garage door as you come and go, the Shelly BLU RC Button 4 ZB delivers fast, flexible, and secure control, exactly where and how you want it.

Specifications

Battery

Battery type: 1 x 3V CR2032 battery (included)

Battery life: up to 2 years

Features

Ambient working temperature: -20°C to 40°C / -5°F to 105°F

Humidity: 30% to 70% RH

Connectivity

Bluetooth protocol: 5 (LE)

Bluetooth range:

• up to 30m outdoors

• up to 10m indoors

Encryption: AES (CCM mode)

Zigbee protocol: 802.15.4

Zigbee range:

• up to 30m outdoors

• up to 10m indoors

Dimensions

Button (HxWxD): 65 x 30 x 13 mm / 2.56 x 1.18 x 0.51 in

Magnetic holder (HxWxD): 83 x 44 x 9 mm / 3.27 x 1.73 x 0.35 in

Smart Bulbs

The Shelly Duo E27 Gen3 is a versatile smart lighting solution that brings both vibrant colour and precise white lighting into your home or workspace. Designed to fit any standard E27 socket, it installs as easily as a regular bulb while unlocking full smart control via Wi-Fi and Bluetooth—no hub required. Whether you want to energise a room with vivid colours or create a calm, warm atmosphere, this bulb offers complete flexibility with millions of colours and tuneable white light ranging from 2700K to 6500K.

Built for more than just lighting, the Shelly Duo E27 Gen3 adapts to your lifestyle. Create schedules that follow your daily routine, automate lighting based on sensors, or set advanced scenes using scripting and webhooks. Night Mode ensures soft, comfortable lighting during late hours, while real-time power monitoring helps you keep track of energy usage and optimise efficiency. With built-in WiFi range extension and BLE gateway functionality, it also strengthens your smart home network while seamlessly connecting with other devices.

• Multicolour RGBW lighting, plus tuneable white (2700K–6500K, 8.5W, 800 lm)

• WiFi & Bluetooth connectivity with no hub required

• Built-in WiFi range extender and BLE gateway

• Real-time power consumption monitoring

• Smart schedules, scenes, and advanced scripting support

• Compatible with Home Assistant, Alexa, Google Home, SmartThings, and more

From colourful, dynamic scenes for entertaining, to soft, adaptive lighting that follows the rhythm of your day, the Shelly Duo E27 Gen3 transforms any space with ease. It can welcome you home with the perfect light, adjust automatically throughout the day, and even simulate occupancy while you’re away, delivering comfort, efficiency, and peace of mind in one simple upgrade.

Specifications

Power

Power supply: 220-240 V~ 50/60 Hz

Power Consumption: 8.5W

Idle power consumption:

• <0.5W when only Bluetooth is enabled

• <1W, when Wi-Fi and/or Access Point is enabled

Features

Socket: E27

Dimming: Yes

Colour: RGB

Colour temperature: 2700K - 6500K

Brightness: Up to 800 lumens

Glass/Coating: PC frost cover

Protection Class: IP20

Ambient temperature: -25ºC to +40ºC

Lifetime: 15,000 hours

Beam angle: 200°

Filament: LED SMT

Power measurement: Yes

Connectivity

WiFi Protocol: 802.11 b/g/n

WiFi RF Band: 2401 - 2483 MHz

WiFi Max. RF power: < 20dBm

WiFi range (depending on local construction):

• up to 50 m outdoors

• up to 30 m indoors

Bluetooth Protocol: 4.2 (BLE)

Bluetooth RF band: 2402 - 2480 MHz

Bluetooth Range (depending on local construction):

• up to 30m outdoors

• up to 10m indoors

Dimensions

(HxW): 60 x 110 mm
