TP-Link Archer MR200 AC750 Wireless Dual Band 4G LTE Router

Take full advantage of your cutting-edge 4G LTE network with the TP-Link Archer MR200 AC750 Wireless Dual Band 4G LTE Router, which allows you to share network with multiple devices so you can enjoy uninterrupted HD movies, rapid file downloads that won't freeze up. It is also fully compatible with FDD-LTE and TDD-LTE, which are supported by most operators around the world.

With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do insert a SIM card and turn on the Archer MR200. Enjoying fast, stable Wi-Fi on a 4G LTE network has never been easier.

The Archer MR200 can easily share a 3G/4G connection with up to 64 wireless devices like tablets, laptops and mobile phones at the same time. It can also provide internet access for desktop computers via the LAN ports.

The Archer MR200 offers unmatched convenience and versatility. The ability to quickly establish powerful wireless networks can be tremendously important. The Archer MR200 is the perfect solution whether you're at home or working in a remote location. Just plug it in to boost on-site productivity and stay connected in a diverse range of environments. From the exhibition centre to the RV, the Archer MR200 has you covered.

Co-work with TP-Link OneMesh products, to provide a more flexible and cost-effective Mesh network with a single Wi-Fi name for seamless whole-home coverage.

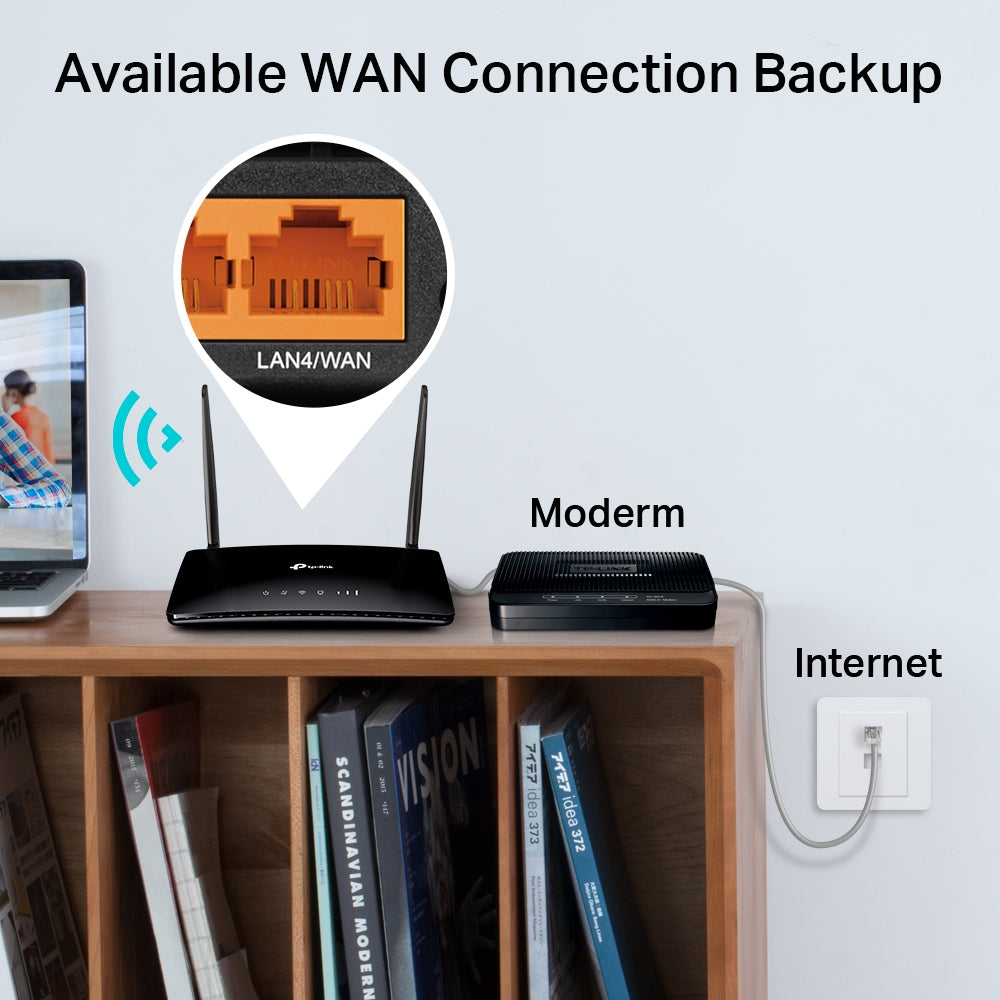

The WAN/LAN port enables Archer MR200 to work as a traditional wireless router which is compatible with cable, fibre, and DSL modems. And when it's set as a wireless router, its 3G/4G connection works as a backup to provide a sustained and reliable internet connection for you.

Set up the Archer MR200 in minutes thanks to its intuitive web interface and the powerful Tether app. Manage network settings, including Parental Controls and Access Control from any Android or iOS device. Control your home network whenever and wherever you are.

Specifications

HARDWARE FEATURES

Interface: 3× 10/100Mbps LAN Ports, 1× 10/100Mbps LAN/WAN Port, 1× Nano SIM Card Slot

Button: WPS/RESET Button, Wi-Fi ON/OFF Button

External Power Supply: 12V/1A

Dimensions ( W x D x H ): 6.85 × 4.9 × 1.32 in (174 × 124.5 × 33.5 mm)

Antenna: 2 Detachable External 4G LTE Antennas

WIRELESS FEATURES

Wireless Standards: IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz

Frequency: 2.4 GHz and 5 GHz

Signal Rate: 300 Mbps at 2.4 GHz, 433 Mbps at 5 GHz

Reception Sensitivity:

5 GHz

11a 54M: -78 dBm

11ac VHT20 MCS0: -92 dBm 11ac VHT20 MCS8: -72 dBm

11ac VHT40 MCS0: -90 dBm 11ac VHT40 MCS9: -67 dBm

11ac VHT80 MCS0: -87 dBm 11ac VHT80 MCS9: -64 dBm

2.4 GHz

11g 54M: -74 dBm

11n HT20 MCS0: -91 dBm 11n HT20 MCS7: -72 dBm

11n HT40 MCS0: -88 dBm 11n HT40 MCS7: -69 dBm

Wireless Functions: Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics

WAN Failover: Yes

Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

Transmission Power: < 20 dBm (2.4 GHz), < 23 dBm (5 GHz)

Network Type:

4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800 MHz)

TDD-LTE B38/B40/B41 (2600/2300/2500 MHz)

3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900 MHz)

SOFTWARE FEATURES

Quality of Service: Prioritizes network traffic by device or application

Operating Modes: 3G/4G Router, Wireless Router

WAN Type: Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)

Management Features: Access Control, Local Management, Remote Management, reboot schedule

DHCP: Server, DHCP Client List, Address Reservation

Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS: DynDns, NO-IP, TP-Link DDNS

Firewall Security: DoS, SPI Firewall, IP and MAC Address Binding

Protocols: Supports IPv4 and IPv6

Guest Network: 2.4GHz guest network x 1, 5GHz guest network x 1

VPN Server: PPTP VPN, OpenVPN

OTHERS

Certification: CE, RoHS

Package Content:

AC750 Wireless Dual Band 4G LTE Router Archer MR200

RJ45 Ethernet Cable

Power Adapter

Quick Installation Guide

System Requirements:

Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux

Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser

Nano SIM Card

Environment:

Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~60℃ (-40℉ ~140℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
