TP-Link Deco BE25 BE3600 Whole Home Mesh WiFi 7 System

WiFi 7 offers accelerated throughput, lower latency, stronger anti-jamming, and higher efficiency. Join the league of pros and experience the sheer performance of the next generation of WiFi with the TP-Link Deco BE25 BE3600 Whole Home Mesh WiFi 7 System.

The latest 4K-QAM boosts the Wi-Fi speeds up to 3.6 Gbps — ideal for bandwidth-intensive tasks like cloud gaming and 8K video. Families will enjoy immersive live-streaming with flawless video and clear audio without buffering.

Perfect for bandwidth-intensive tasks like cloud gaming, VR entertainment, and 8K video streaming. Enjoy immersive live-streaming with flawless video and clear audio, no buffering. Ideal for families and busy households.

HomeShield is a built-in service, it provides a series of services for you to protect all your devices comprehensively with various features at home or on-the-go. With HomeShield, safer internet experiences bring more happiness to your smart living.

Allow devices in your home network to access remote VPN servers without needing to install VPN software on every device. You can create different VPN connection types, including OpenVPN, PPTP, L2TP/IPSec VPN. Besides, Deco can run both the VPN and ordinary internet connections at the same time, delivering security and flexibility.

Set up a separate WiFi for IoT devices and overlay HomeShield and advanced WPA3 encryption to better protect the security of your home network and IoT devices.

Deco Mesh forms a unified network with a single network name. With built-in AI-Roaming technology, it creates the ideal WiFi solution with its advanced algorithms and self-learning. Walk through your home and enjoy seamless streaming at the fastest possible speeds.

Setup and manage your network anytime and anywhere on the friendly TP-Link Deco app. In just three easy steps your entire home can be blanketed in strong and reliable WiFi.

Specifications

WIRELESS

Standards and Protocols:

Wi-Fi 7

IEEE 802.11be/ax/ac/n/a 5 GHz

IEEE 802.11be/ax/n/b/g 2.4 GHz

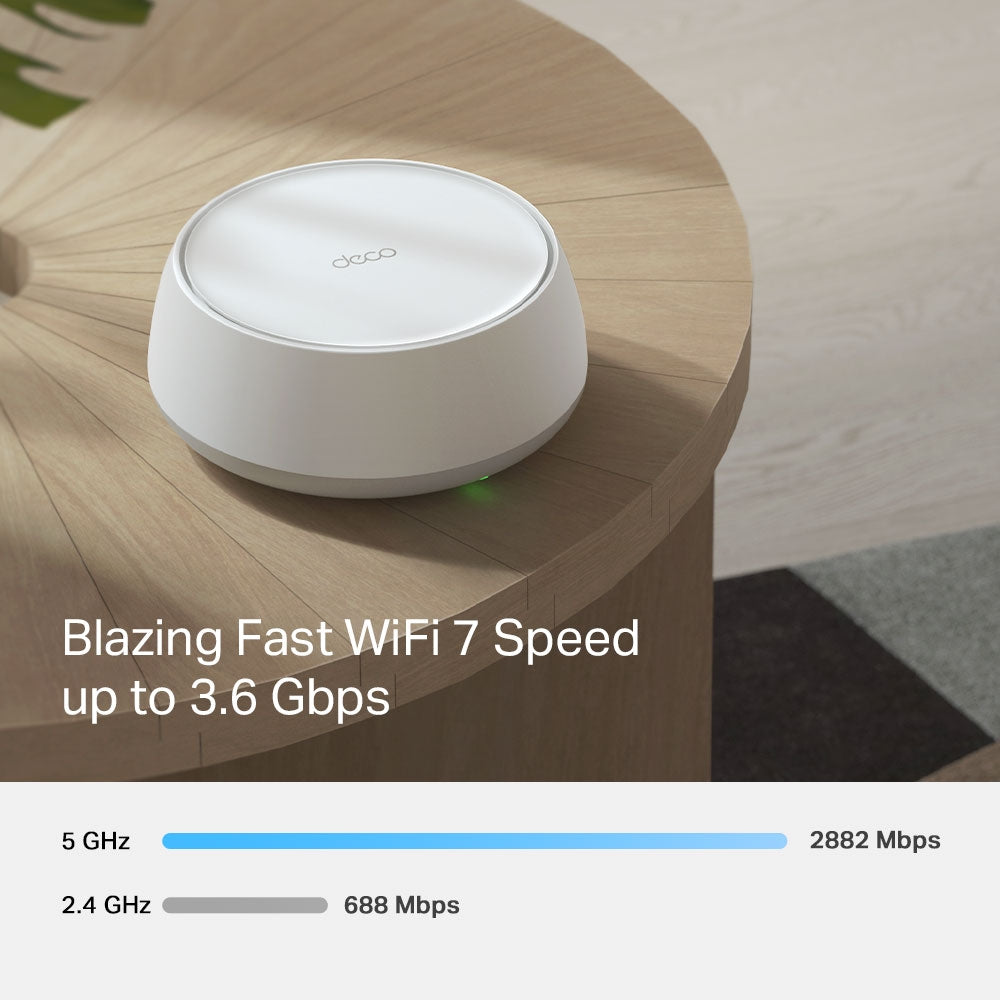

WiFi Speeds:

BE3600

5 GHz: 2882 Mbps (802.11be)

2.4 GHz: 688 Mbps (802.11be)

WiFi Range:

Broader Whole Home Coverage

TP-Link Mesh Technology

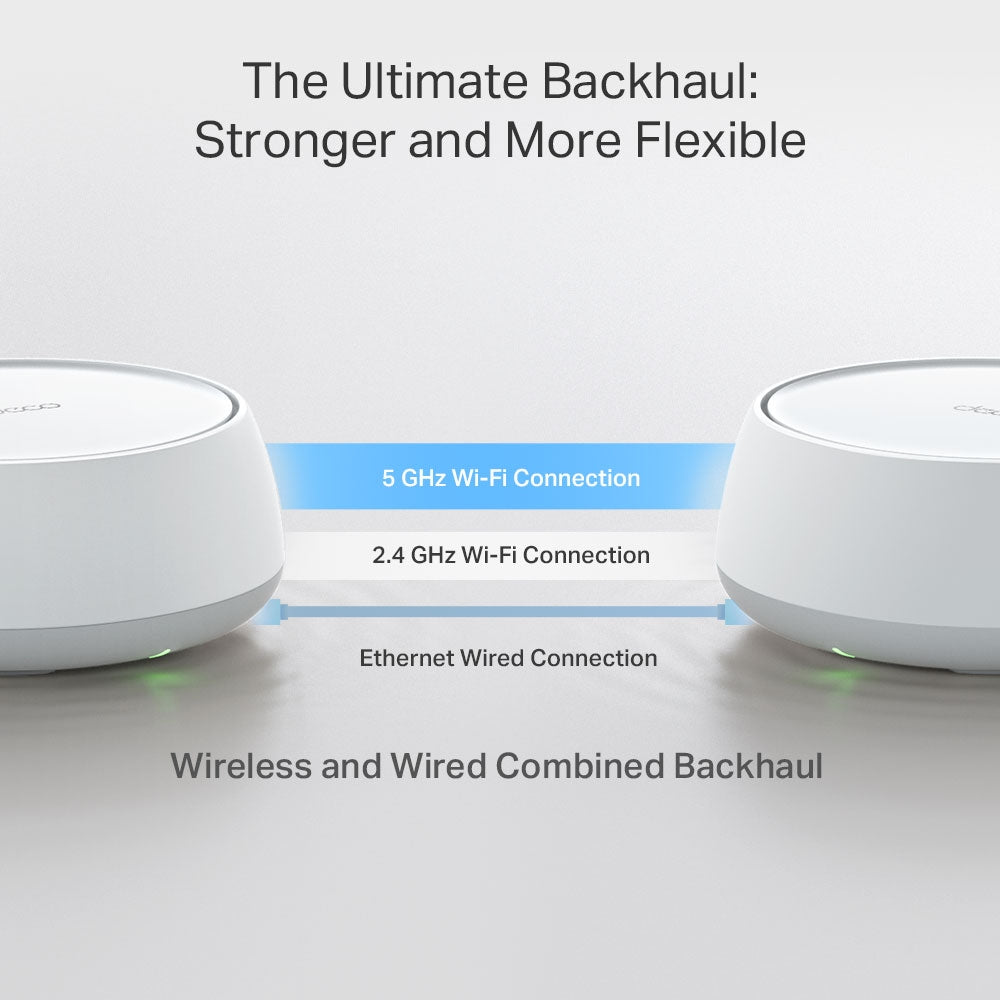

Optional Ethernet backhaul work together to link Deco units to provide seamless coverage

AI-Driven Mesh

Intelligently learns the network environment to provide ideal Wi-Fi unique to your home

4× High-Performance Antennas (Internal)

Multiple antennas form a signal-boosting array to cover more directions and large areas

WiFi Capacity:

Dual-Band

Distribute devices to different bands for optimal performance

OFDMA

Simultaneously communicates with multiple WiFi 7 clients

4 Streams

More than enough bandwidth for connected devices

Working Modes: Router Mode / Access Point Mode

Advanced Features:

• Multi-Link Operation (MLO)

• 160 MHz Channel

• 4K-QAM

• Multi-RUs

• Works with Alexa and Google Assistant

SECURITY

Network Security:

SPI Firewall

Access Control

HomeShield Security

Real-Time IoT Protection

Malicious Site Blocker

Intrusion Prevention System

DDoS Attack Prevention

Home Network Scanner

Guest Network:

1× 5 GHz Guest Network

1× 2.4 GHz Guest Network

Effective Time

Bandwidth Control

VPN Server:

• OpenVPN Server

• PPTP VPN Server

• L2TP/IPSec VPN Server

VPN Client:

• OpenVPN Client

• PPTP VPN Client

• L2TP/IPSec VPN Client

WiFi Encryption:

WPA-Personal

WPA2-Personal

WPA3-Personal

HARDWARE

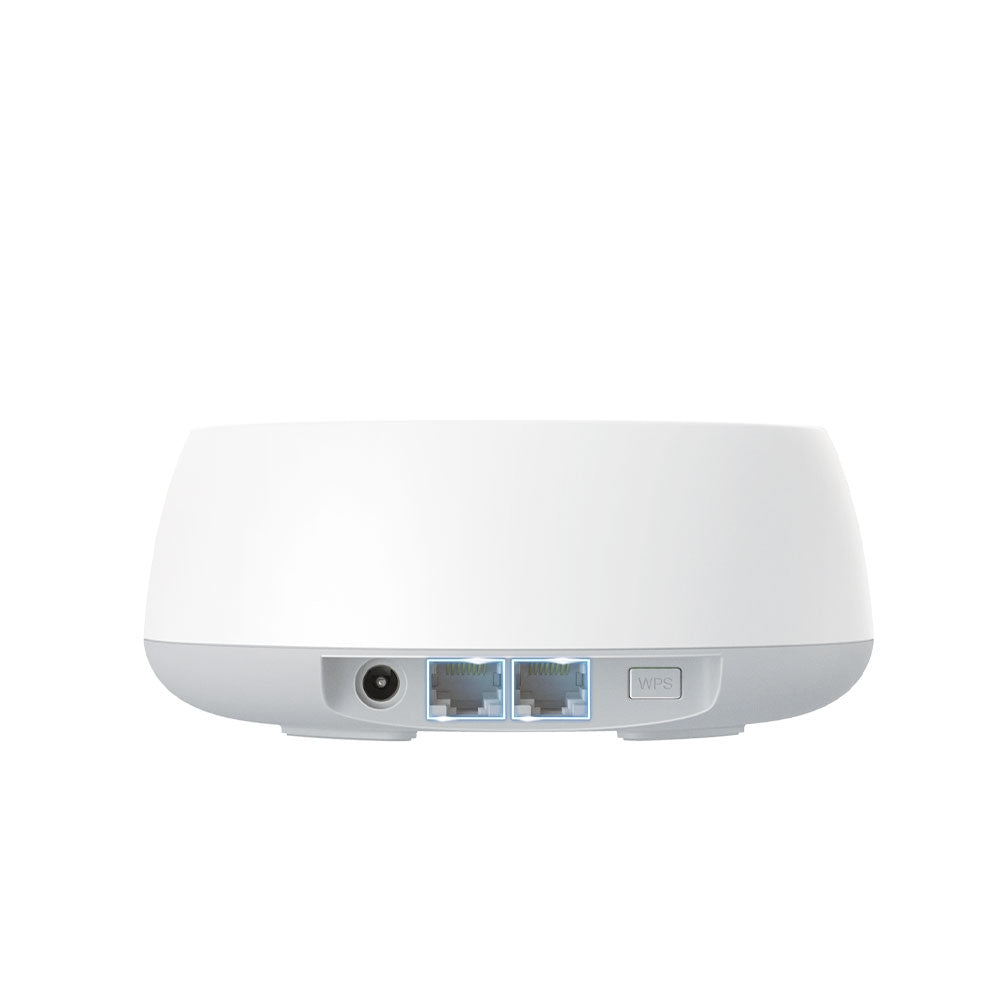

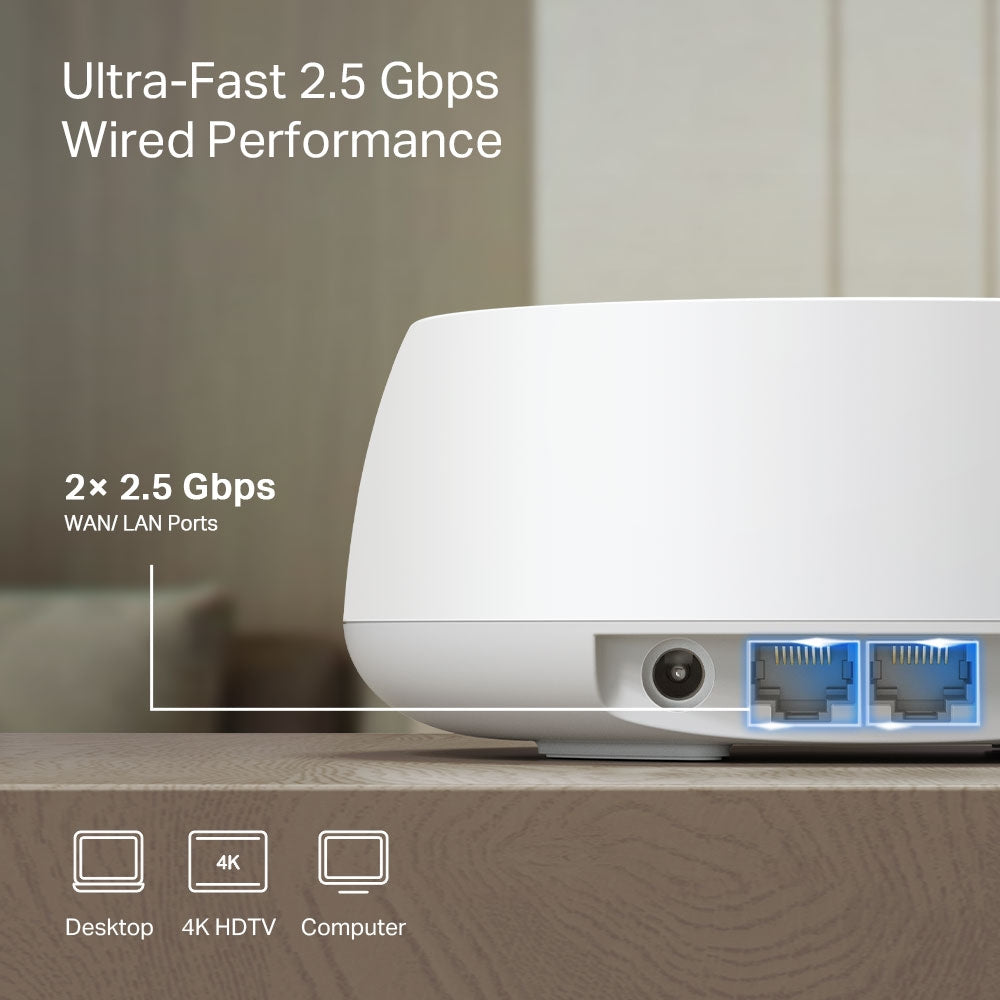

Ethernet Ports:

2× 2.5 Gbps

*Per Deco Unit

Supports WAN/LAN auto-sensing

Buttons:

1× Reset Button

1× WPS

SOFTWARE

Advanced Features:

• Reboot Schedule

• Tapo/Kasa Onboarding

• IoT network & Device Isolation

• Static Routing Function

• Node/Band Connection Preference

Protocols: IPv4 / IPv6

Service Kits: HomeShield

Parental Controls:

HomeShield

Youtube Restriction

SafeSearch

Custom Profiles

Professional Content Filter Library

Family Time

Bedtime

Off Time

Time Rewards

Family Online Time Ranking

Pause the Internet

Weekly and Monthly Reports

WAN Types:

Dynamic IP

Static IP

PPPoE

PPTP

L2TP

Quality of Service:

HomeShield QoS

QoS by Device

Cloud Service:

OTA Firmware Upgrade

TP-Link ID

DDNS

NAT Forwarding:

Port Forwarding

UPnP

IPTV:

IGMP Proxy

IGMP Snooping

Bridge

Tag VLAN

DHCP:

Address Reservation

DHCP Client List

Server

DDNS: TP-Link

Management Features: Deco App

OTHER

Network Services Enabled by Default:

Manage and configure device through web (HTTP/HTTPS)

• Port: 80/443   Protocol: TCP

DNS

DNS

• Port: 53   Protocol: TCP & UDP

DHCP Server

IP address assignment (DHCP)

• Port: 67   Protocol: UDP

App management

Manage and configure device through app

• Port: 22   Protocol: TCP

• Port: 20001   Protocol: TCP

• Port: 30001   Protocol: TCP

• Port: 20002   Protocol: UDP

PHYSICAL

Dimensions (W×D×H): 5.91 × 5.91 × 2.44 in (150 × 150 × 62 mm)

Package Content:

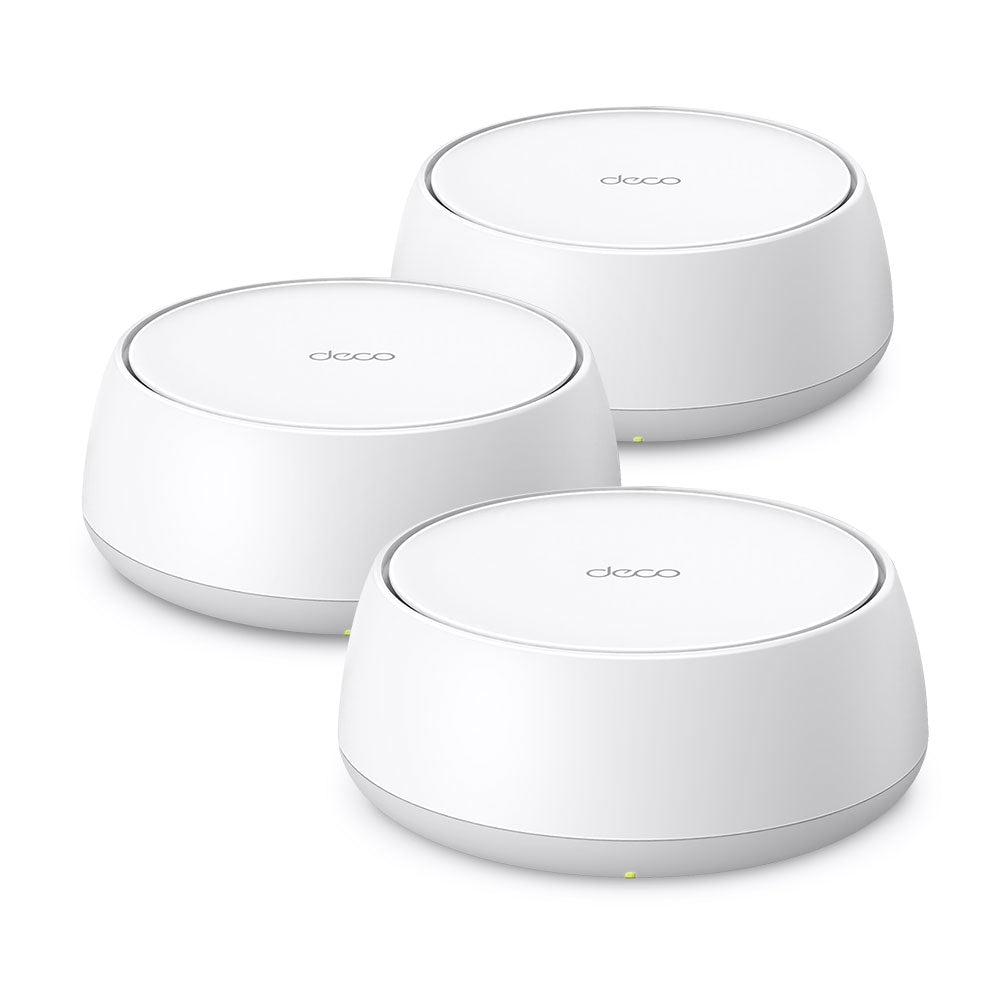

3 Deco BE25 units

1 RJ45 Ethernet cable

3 Power adapters

Quick Installation Guide

OTHERS

Certifications: CE, FCC, RoHS

Environment:

Operating Temperature: 0°C~40°C (32 °F~104 °F)

Storage Temperature: -40°C~60°C (-40 °F~140 °F)

Operating Humidity: 10%~90% RH

Storage Humidity: 5%~90% RH
