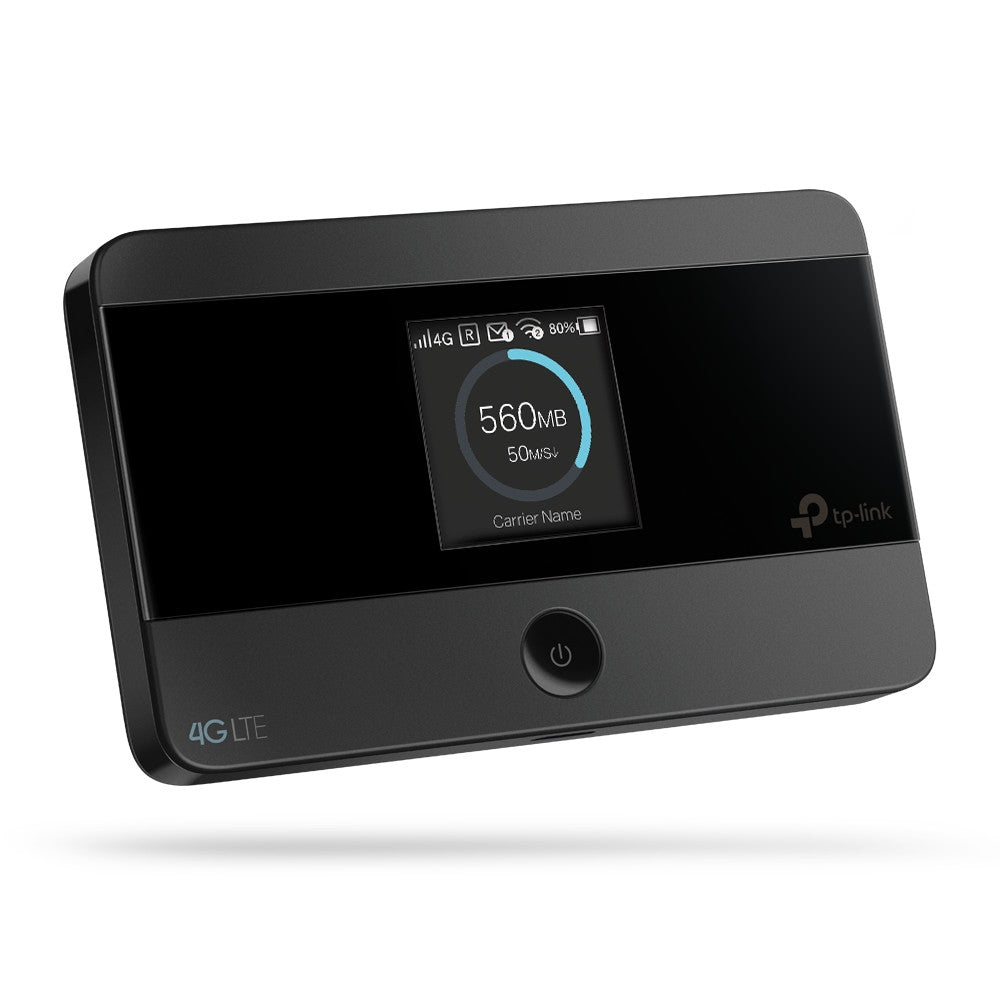

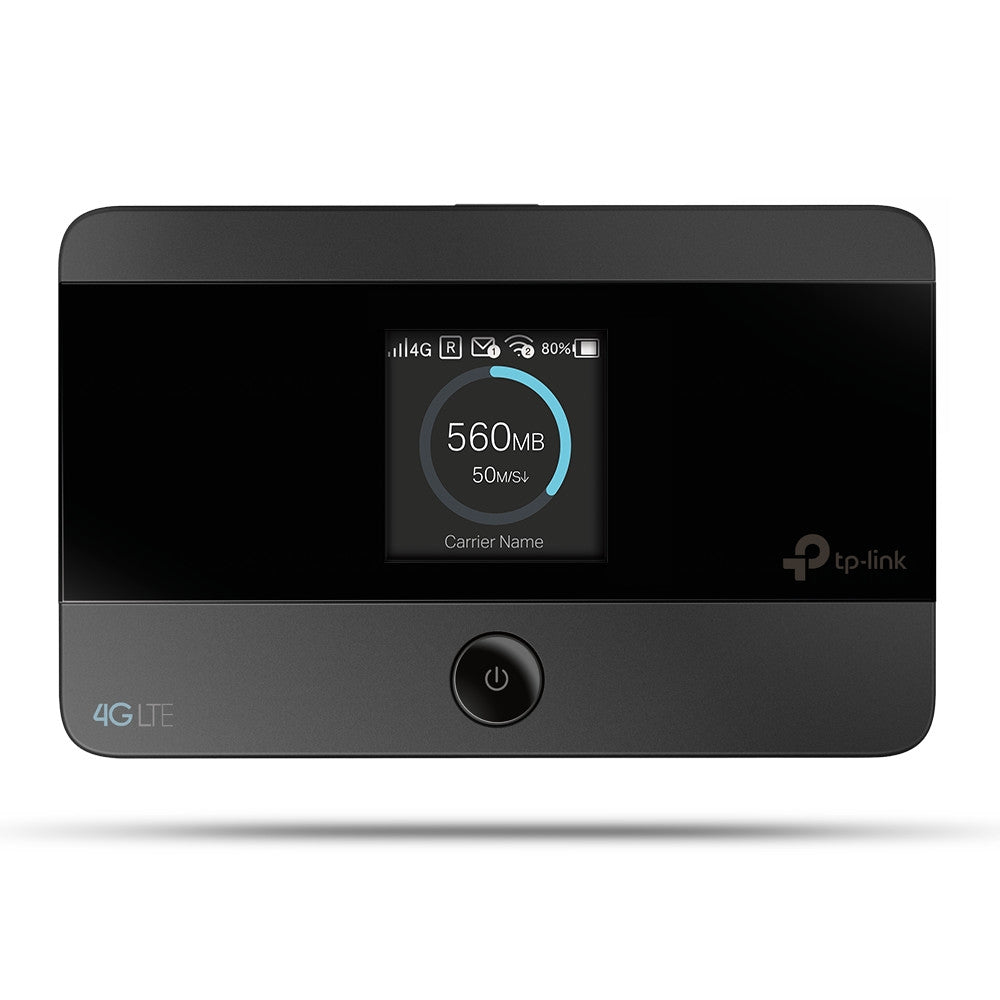

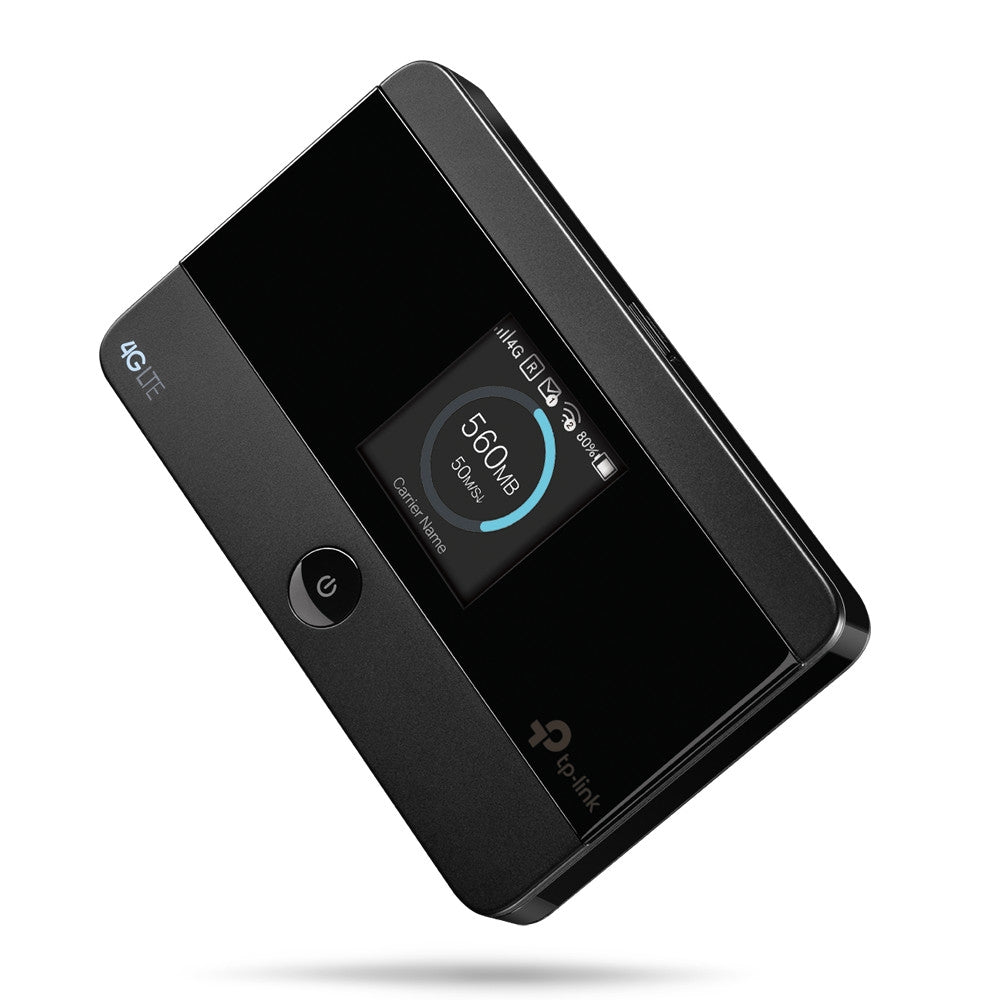

TP-Link M7350 4G LTE Mobile Wi-Fi

Supporting the latest generation 4G LTE network, the TP-Link M7350 4G LTE Mobile Wi-Fi can reach up to 150 Mbps download speeds, to enjoy HD movies without interruption, download files in seconds, and hold a video chat without dropouts.

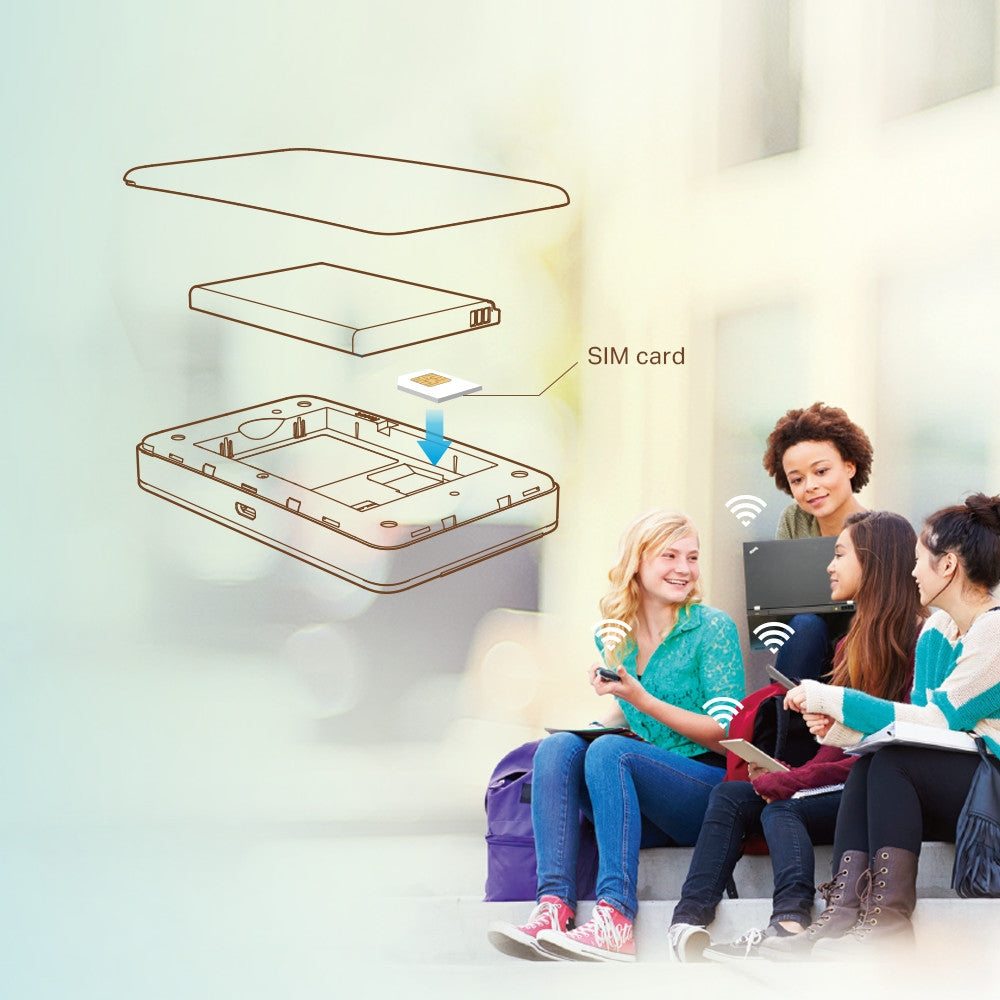

Plug and play, just insert a 4G SIM card to create your reliable personal WiFi hotspot on the move. Instantly share 4G/3G connectivity with up to 10 WiFi enabled devices – Tablets, mobile phones, laptops, game consoles and more.

With its powerful 2100 mAh battery, the M7350 is able to operate for 8 hours at full capacity and 480 hours of standby. For added flexibility, the device can be recharged via a micro USB cable connected to a laptop, portable charger or using its included adapter for endless hours of 4G sharing.

The intuitive screen display of M7350 makes it easy to stay within your data budget and avoids going over the monthly data cap. The screen also displays other much more information of battery life, signal strength, WiFi status, connected users and more.

With the tpMiFi App, you can easily access and manage the M7350 from your connected iOS/Android devices. The tpMiFi app allows you to establish data limits, control which devices can access your WiFi, send messages, and share media files to/from a removable Micro SD card.

You can easily share photos, music, videos and more wirelessly across your network from a micro SD card though the micro SD Storage Slot - providing storage of up to 2TB.

Specifications

HARDWARE FEATURES

Interface: USB-C port for power supply / Nano SIM card slot / Micro SD card slot

Button: Power On/Off Button / Menu Button

Power Supply: Internal 2100 mAh Rechargeable Battery (TBL-60A2100)

Network Type:

4G:

FDD-LTE: B1/B3/B5/B7/B8/B20/B28

(2100/1800/850/2600/900/800/700 MHz)

TDD-LTE: B38/B40/B41

(2600/2300/2500 MHz)

3G:

DC-HSPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B5/B8

(2100/850/900 MHz)

Data Rates: DL: 150Mbps, UL: 50Mbps

Dimensions ( W x D x H ): 4.2 × 2.6 × 0.6 in. (106 × 66 × 16mm)

Antenna: Internal Antenna

Micro SD Card Reader: Up to 2 TB

Screen Display: Traffic statistics, Wi-Fi status, user numbers, network type (4G/3G), signal strength, Internet connection status, messages, battery meter.

WIRELESS FEATURES

Wireless Standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Frequency: 2.4GHz

Wireless Security: Support WPA-PSK/WPA2-PSK, Black List, Enable/Disable SSID Broadcast

DHCP: DHCP server, DHCP Client List

Transmission Power: 2.4G <20dbm

OTHERS

Network Services Enabled by Default:

Web Server

Manage and configure device through web or app

• Port: 80/443   Protocol: HTTP/HTTPS

DNS

DNS

• Port: 53; Protocol: UDP

DHCP/DHCPv6

IP address assignment

• Port: 67/547; Protocol: UDP

RNDIS Support: Yes. System Requirement: Windows XP/7/8/10

Certification: CE, RoHS

Package Content:

4G LTE Mobile Wi-Fi M7350

0.4 m USB-C Cable

Quick Installation Guide

2100 mAh Battery

System Requirements: Windows 10/8/7/vista/XP, Mac OS, Android, iOS, Windows Phone
