TP-Link RE200 AC750 Dual-Band Mesh Wi-Fi Range Extender

Place the TP-Link RE200 AC750 Dual-Band Mesh Wi-Fi Range Extender between your wireless router and wireless devices, expanding WiFi coverage while eliminating WiFi dead zones. Enjoy a seamless wireless network throughout your home or office. The dual bands WiFi up to 750Mbps not only help extend to 2,000 sq.ft. (185 m2), but also make good use of your high ISP speed — ideal for HD video streaming, online gaming and other bandwidth-intensive tasks.

The RE200’s Wireless AC technology create stronger WiFi connections across your home. Work with any standard router or access point, making it convenient to provide wide, non-dropping Dual Band WiFi to multiple devices.

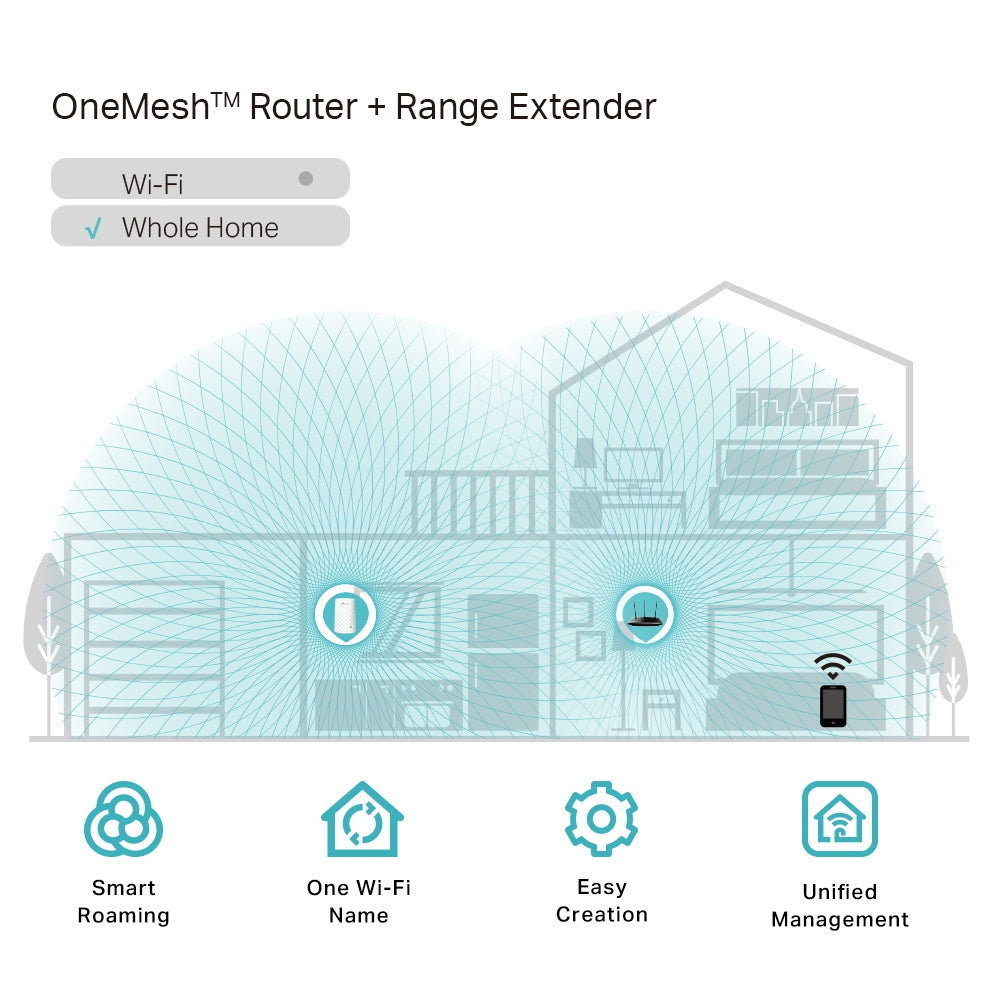

With TP-Link Mesh Technology, it’s easy to form a Mesh network with a single WiFi name for seamless whole home coverage. Just connect the RE200 to a OneMesh™ router. Always enjoy the strongest WiFi when you’re walking around with no need to search around for a stable connection.

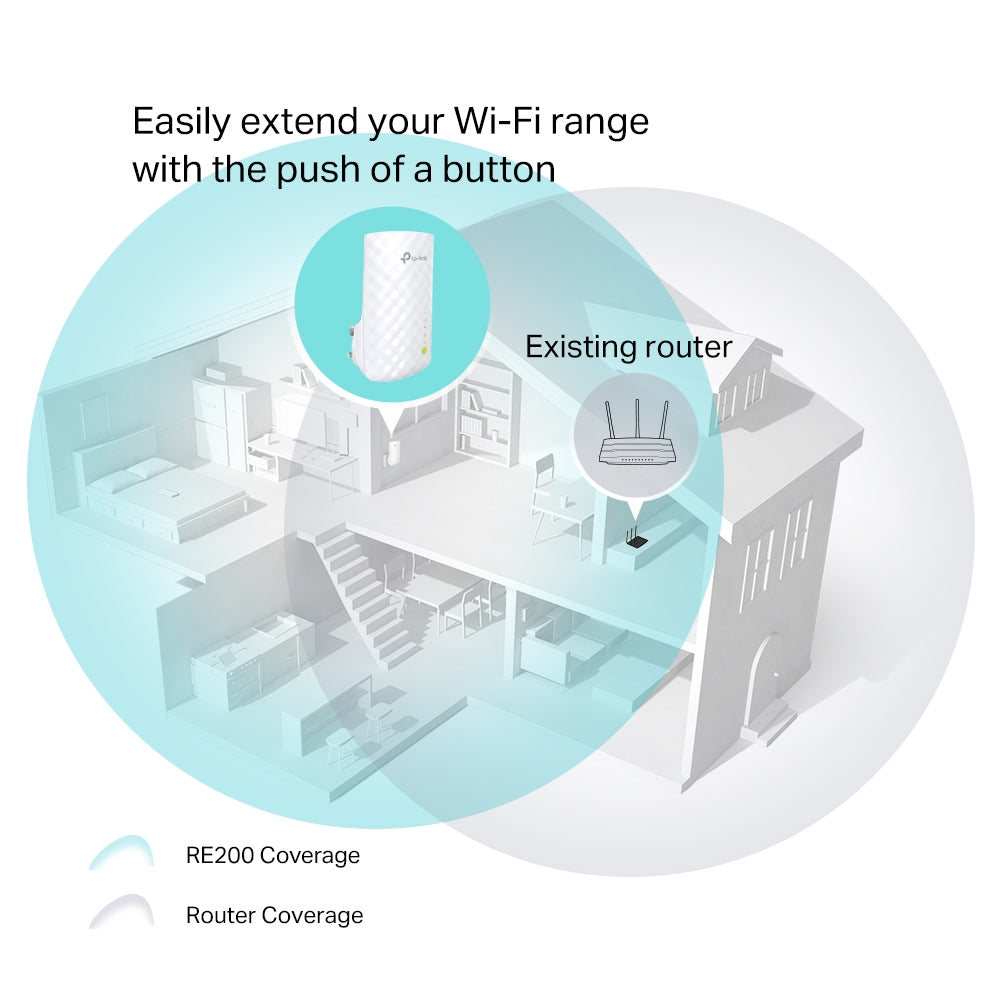

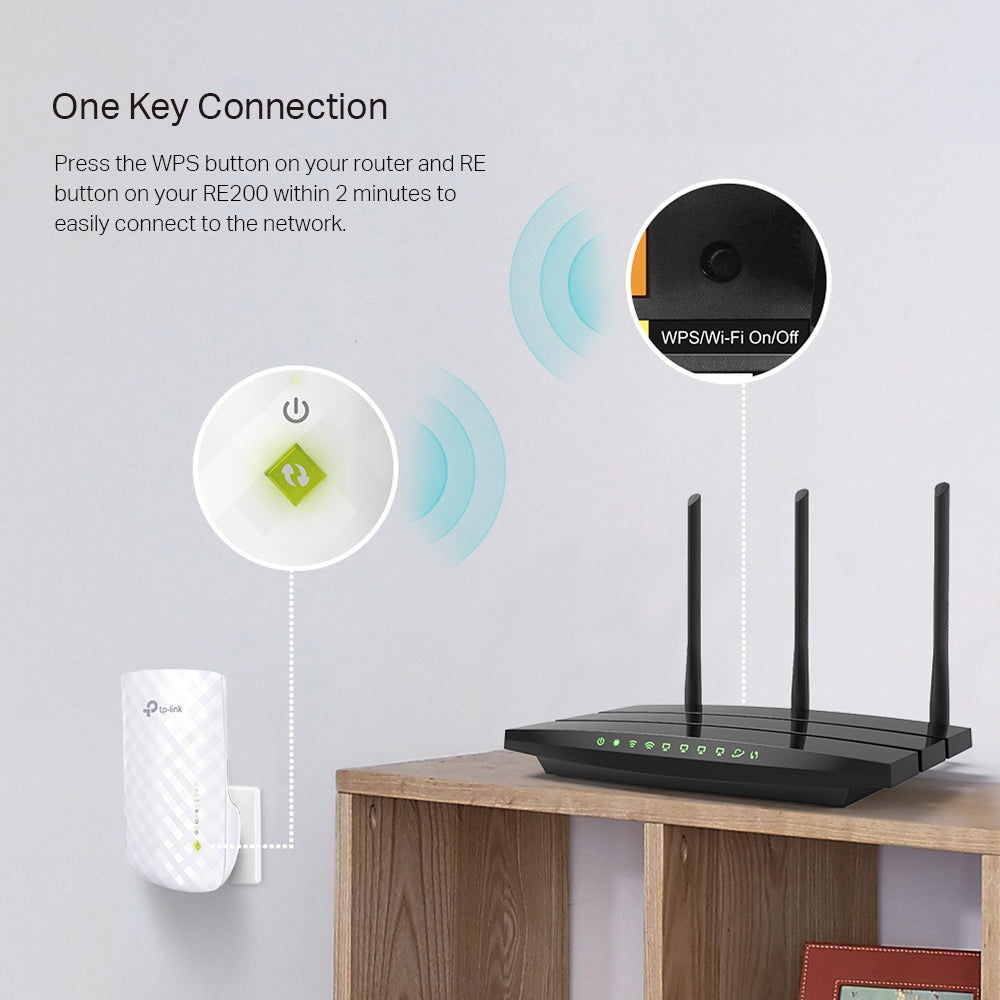

Press the WPS button on your router and RE button on your RE200 within 2 minutes to easily connect to the network. Once connected with an existing router, you can simply relocate the RE200 at any location for the best signal strength.

Smart signal lights indicate the signal strength received from the existing router. Read the lights to find the best location for your RE200.

With an Ethernet port, the RE200 can function as a wireless adapter to connect wired devices like desktop, gaming consoles, Blu-ray players, and Internet TVs. At the same time, the device can share the wireless network as well.

Specifications

WIRELESS

Working Modes: Range Extender/Access Point

HARDWARE FEATURES

Standards and Protocols: IEEE802.11ac,IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Plug Type: EU, UK, US, AU

Interface: 1 x 10/100Mbps Ethernet Port (RJ45)

Button: RE (Range Extender) Button, Reset Button

Input Power: 100-240V~50/60Hz

Max. Power Consumption: About 6.5W

Dimensions ( W x D x H ): 4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2mm)

Antenna: 3 x internal

WIRELESS FEATURES

Wireless Standards: IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz

Frequency: 2.4GHz & 5GHz

Signal Rate:

5GHz:Up to 433Mbps

2.4GHz:Up to 300Mpbs

Working Modes: Range Extender/Access Point

Reception Sensitivity:

2.4G

270M: -70dBm@10% PER

130M: -70dBm@10% PER

108M: -73dBm@10% PER

54M: -75dBm@10% PER

11M: -86dBm@8% PER

6M: -92dBm@10% PER

1M: -94dBm@8% PER

5G

390M: -60dBm@10% PER

29.3M: -83dBm@10% PER

180M: -64dBm@10% PER

13.5M: -87dBm@10% PER

78M: -68dBm@10% PER

6.5M: -90dBm@10% PER

54M: -75dBm@10% PER

6M：-90dBm@10% PER

Wireless Modes: Range Extender/Access Point

Wireless Functions: WMM (Wi-Fi Multimedia) / Wireless Statistic / Domain Login Function

Wireless Security: 64/128/152-bit WEP / WPA-PSK / WPA2-PSK

Transmission Power: < 20 dBm (EIRP)

Mesh Technology: OneMesh

OTHERS

Certification: CE, FCC, RoHS

Package Content:

AC750 Wi-Fi Range Extender RE200

Quick Installation Guide

System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux.

Environment:

Operating Temperature: 0°C~40°C (32°F~104°F)

Storage Temperature: -40°C~70°C (-40°F~158°F)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
