TP-Link RE315 AC1200 Mesh Wi-Fi Range Extender

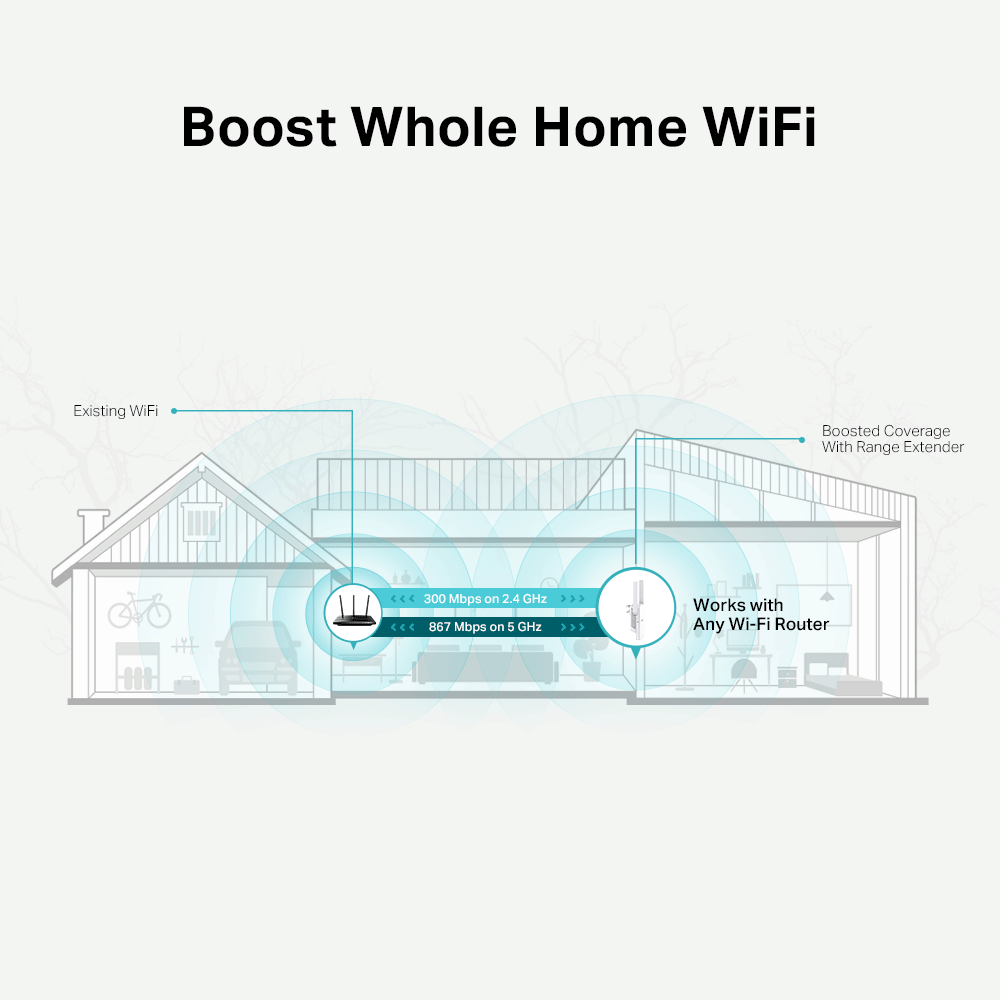

A single router has limited WiFi coverage and always causes WiFi dead zones. The TP-Link RE315 AC1200 Mesh Wi-Fi Range Extender wirelessly connects to your existing router and expands its WiFi signal into areas it can’t reach on its own. Enjoy your stable network experience wherever you are at home.

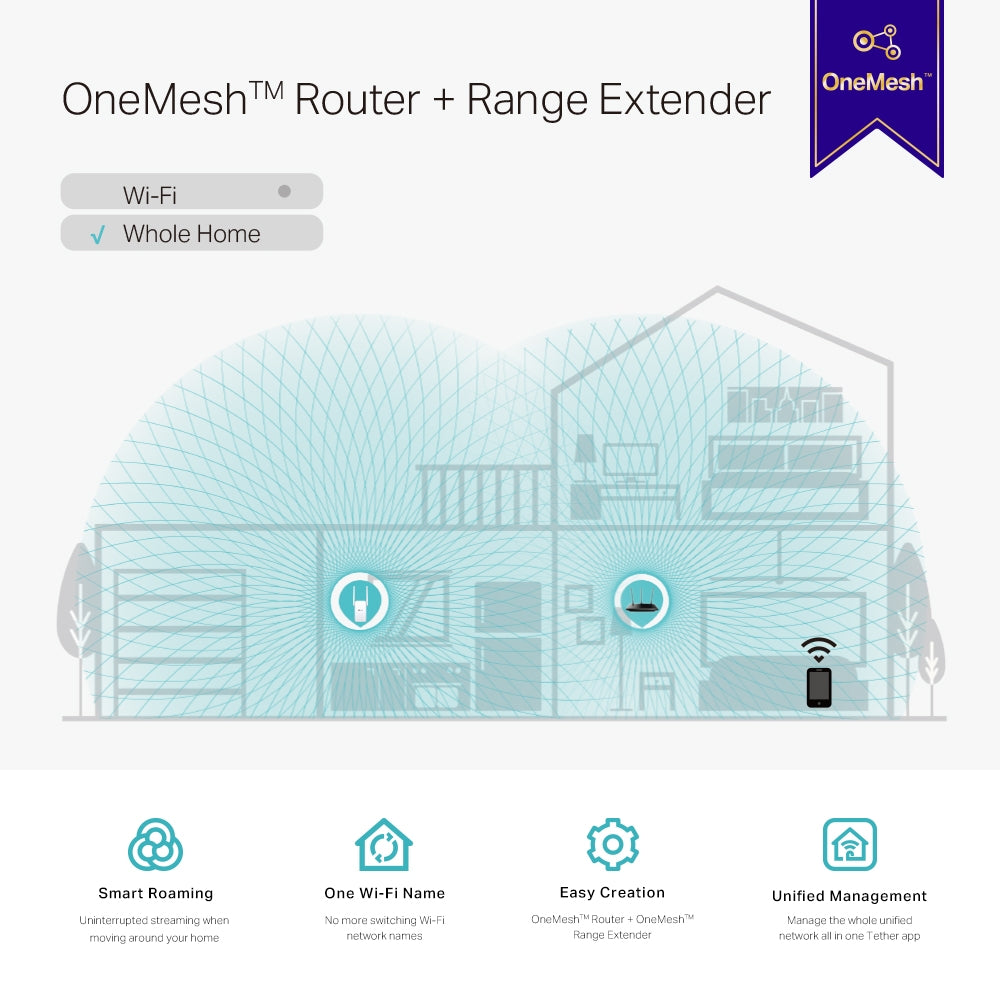

If you have any dead zones at home, just add another EasyMesh-compatible router/range extender to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection.

RE315 delivers dual band (2.4 GHz and 5 GHz) to transmit WiFi signals, doubling the performance of each band. It enables you to keep more devices connected at the same time with its 300 Mbps 2.4 GHz and 867 Mbps 5 GHz dual bands. Use the 2.4 GHz band to send email and browse the web and the 5 GHz band for gaming and HD streaming.

Adaptive Path Selection keeps your network running at optimal speeds by automatically choosing the fastest connection path to the router. Always keep your devices fast and stable—ideal for network environments crowded with many devices and applications.

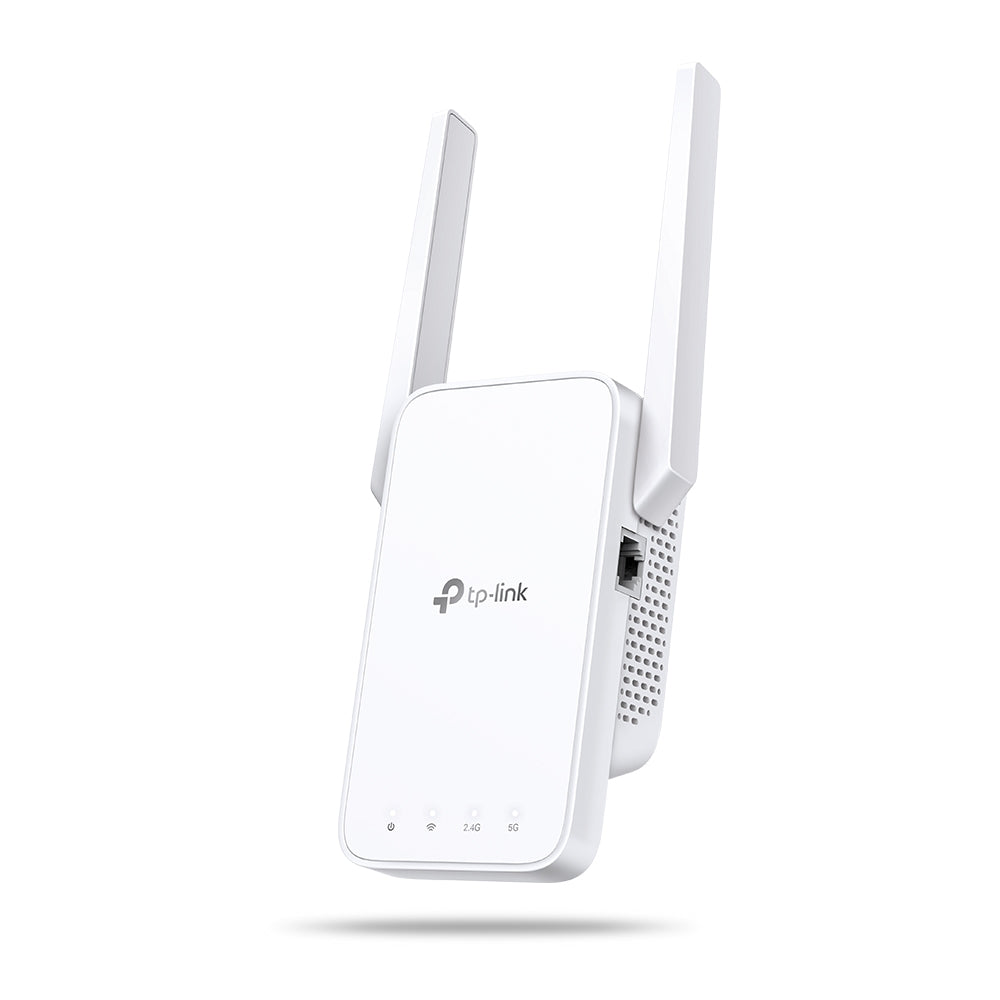

RE315 is more than a wireless range extender. Simply plug an Ethernet cable into its Ethernet port and easily turn your wired internet connection into a 2×2 MIMO dual band wireless access point.

The smart signal indicator lets you see signal strength from the existing router at a glance. Easily to find the best place to position your range extender to extend your WiFi.

Set up and manage your WiFi through the TP-Link Tether app from your smartphone (Android, iOS), including TP-Link routers and range extenders.

Specifications

WIRELESS

Working Modes: Range Extender/Access Point

HARDWARE FEATURES

Interface: 1 x 10/100Mbps Ethernet Port (RJ45)

Button: WPS Button, Reset Button

Input Power: 100-240V~50/60Hz

Max. Power Consumption: 9.5W（max power consumption）

Dimensions ( W x D x H ): 3.5×1.4×4.9 in. (89×35.0×124.1 mm)

Antenna: 2 External Antennas

WIRELESS FEATURES

Wireless Standards: IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz

Frequency: 2.4GHz & 5GHz(11ac)

Signal Rate:

5 GHz:Up to 867 Mbps

2.4 GHz:Up to 300 Mpbs

Working Modes: Range Extender/Access Point

Reception Sensitivity:

5 GHz:

11a 6Mbps: -94dBm, 11a 54Mbps: -77dBm

11ac HT20 MCS0: -94dBm, 11ac HT20 MCS8: -71dBm

11ac HT40 MCS0: -92dBm, 11ac HT40 MCS9: -66dBm

11ac HT80 MCS0: -87dBm, 11ac HT80 MCS9: -62dBm

2.4 GHz:

11g 54Mbps: -78dBm, 11n HT20 MCS7: -76dBm

11n HT40 MCS7: -74dBm

Wireless Modes: Range Extender/Access Point

Wireless Functions: Enable/Disable Wireless Radio, Wireless Statistics

Wireless Security: 64/128-bit WEP, WPA/WPA2-PSK/WPA2-PSK2 encryptions

Transmission Power: 2.4 GHz ≤20dBm, 5 GHz ≤30dBm

OTHER

Network Services Enabled by Default:

Web Server

Manage and configure device through web (HTTP/HTTPS)

• Port: 80/443   Protocol: TCP

DHCP Server

IP address assignment (DHCP)

• Port: 67   Protocol: UDP

App management

Manage and configure device through app

• Port: 20001   Protocol: TCP

• Port: 20002   Protocol: UDP

OTHERS

Certification: CE, RoHS

Package Content:

Wi-Fi Range Extender RE315

Quick Installation Guide

System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser

Environment:

Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~70℃ (-40℉ ~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
