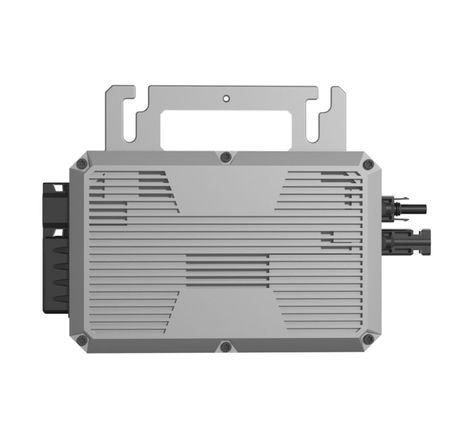

Hoymiles HiFlow 800 Microinverter

The Hoymiles HiFlow 800 Microinverter provides a cost-effective solution for residential PV systems. It is lighter, smaller, but has a maximum output of 800 VA.

With the built-in Wi-Fi & Bluetooth module, it can communicate directly and reliably with the S-Miles Cloud, eliminating the need for an extra DTU.

It features hassle-free plug-and-play installation, taking just minutes to set up. Moreover, the new S-Miles Home App enables effortless customization of your smart home solar system.

Features

Easy Installation and Configuration: Plug & play connection, eliminating complex wiring; Built-in Wi-Fi & Bluetooth module, supporting device management without App registration.

High Yields: Peak efficiency 97%, fully utilizing energy; MPPT efficiency 99.8%, ensuring efficient power generation.

High Reliability: IP 67 rating, -40 °C to 65 °C operating temperature range, adapting to various harsh environments; 12-year long warranty period.

High Safety: Compliant with GDPR and RED-EN 18031 for enhanced data security; Instant voltage cut-off to 34 V within 1 second.

Specifications

Commonly used module power (W): 320 to 520+

Maximum input voltage (V): 100

Maximum input current (A): 16

Number of MPPTs: 1

Rated output power (VA): 800

Nominal output voltage/range (V)*: 230/184 to 276

Peak efficiency: 97.00%

Disclaimer

This product must be installed and connected in accordance with the manufacturer's instructions and current UK electrical regulations (including BS 7671). The AC connection to your home's electricity supply should be carried out by a qualified, registered electrician using a dedicated circuit. Before the system is connected to the grid, you (or your electrician) must notify your Distribution Network Operator (DNO) under the G98 process. Total plug-in/balcony solar generation at any one property must not exceed 800W. Rules on connecting this type of system directly via a standard socket are changing and, at the time of listing, are not yet fully in force — please check the latest government and DNO guidance before installation.

Actual power output will vary depending on sunlight levels, panel positioning, shading, weather conditions and time of year; the 800W rating is a maximum/peak figure, not a guaranteed continuous output.

This is an electrical product. Incorrect installation or use may result in electric shock, fire, or damage to your property's electrical system. Keep out of reach of children. Do not attempt installation if you are unsure of the requirements — consult a qualified electrician.

Product specifications, images and compliance information are provided by the manufacturer and are correct to the best of our knowledge at the time of publication, but may be subject to change. Maplin accepts no liability for loss, damage or injury arising from improper installation, use, or failure to comply with applicable electrical or grid-connection regulations.
