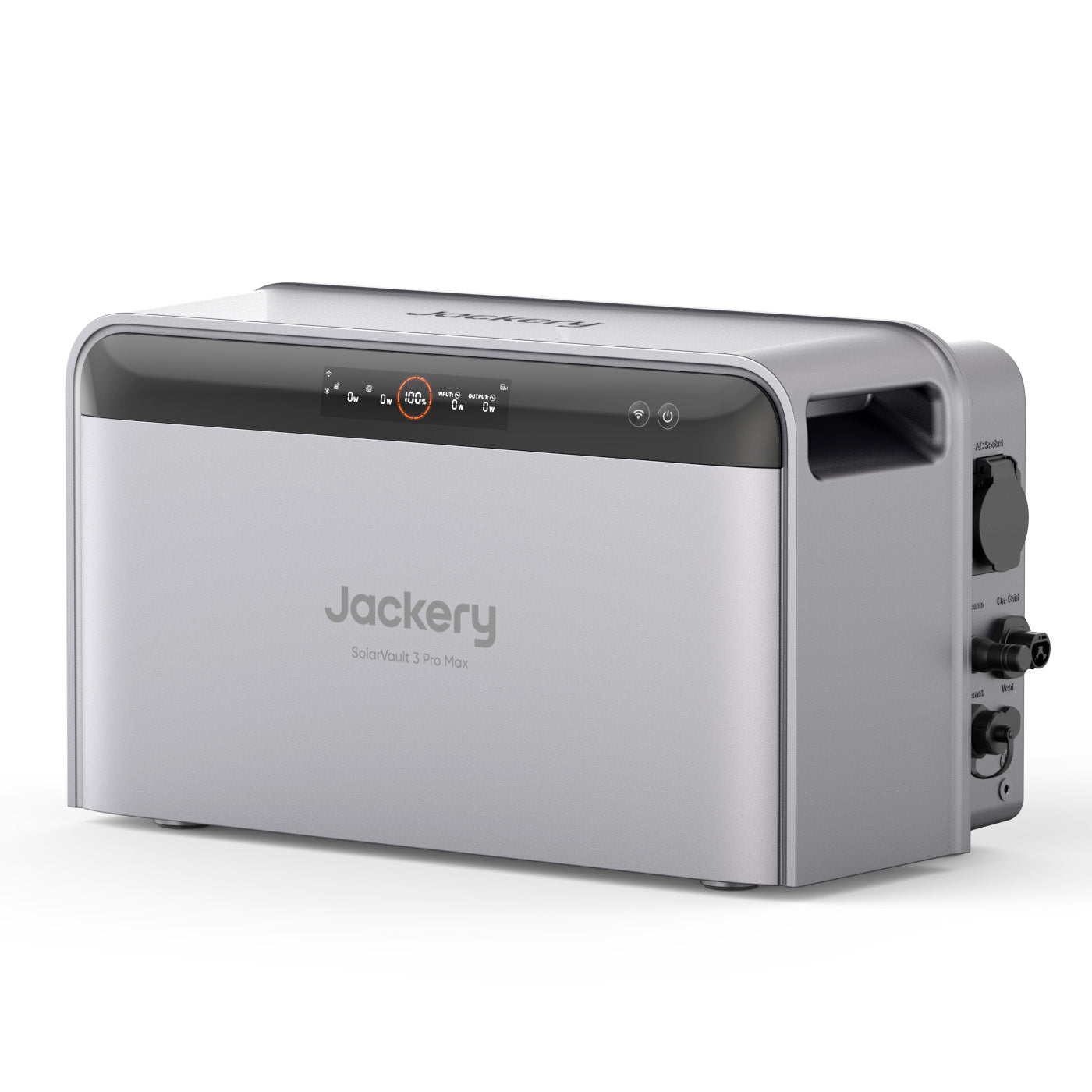

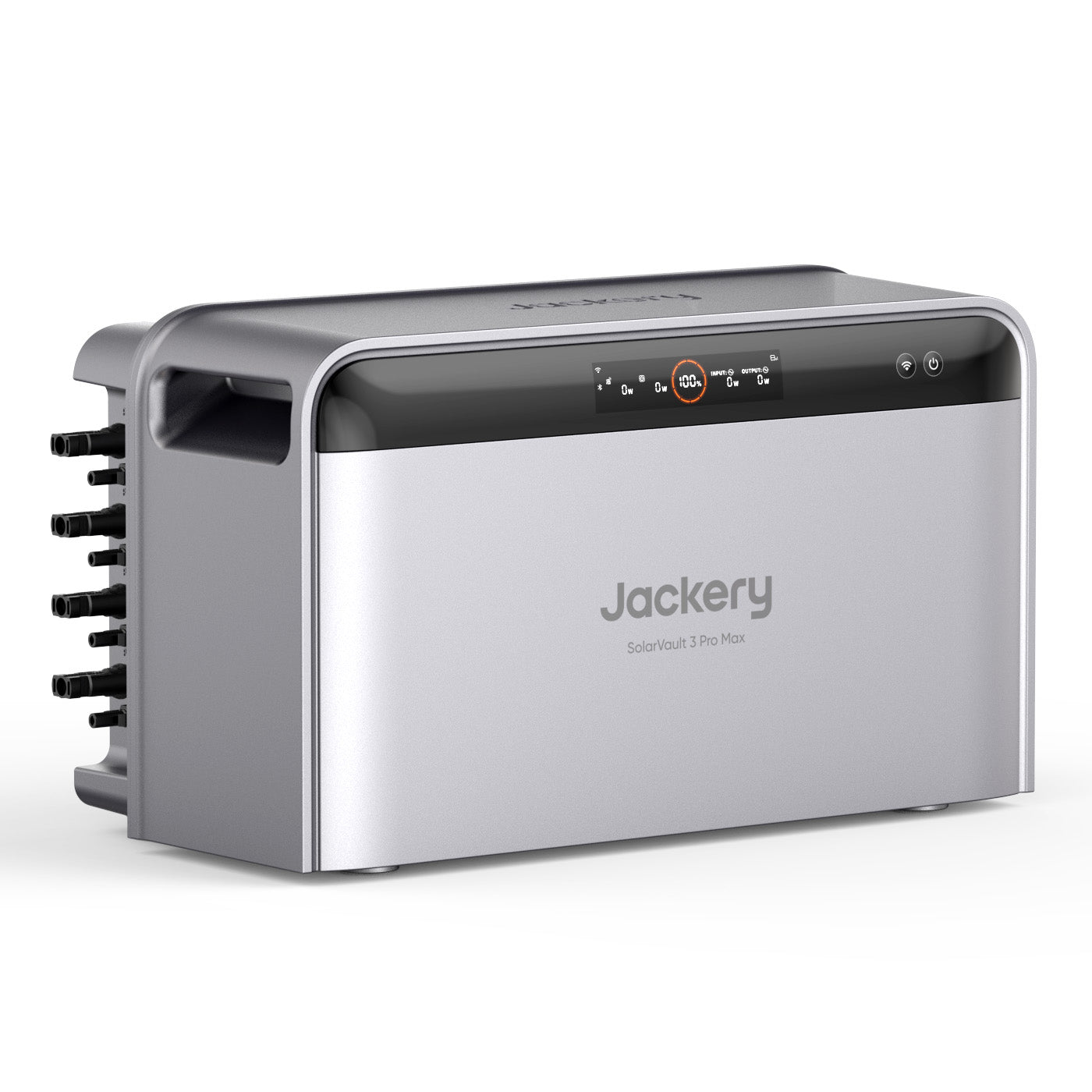

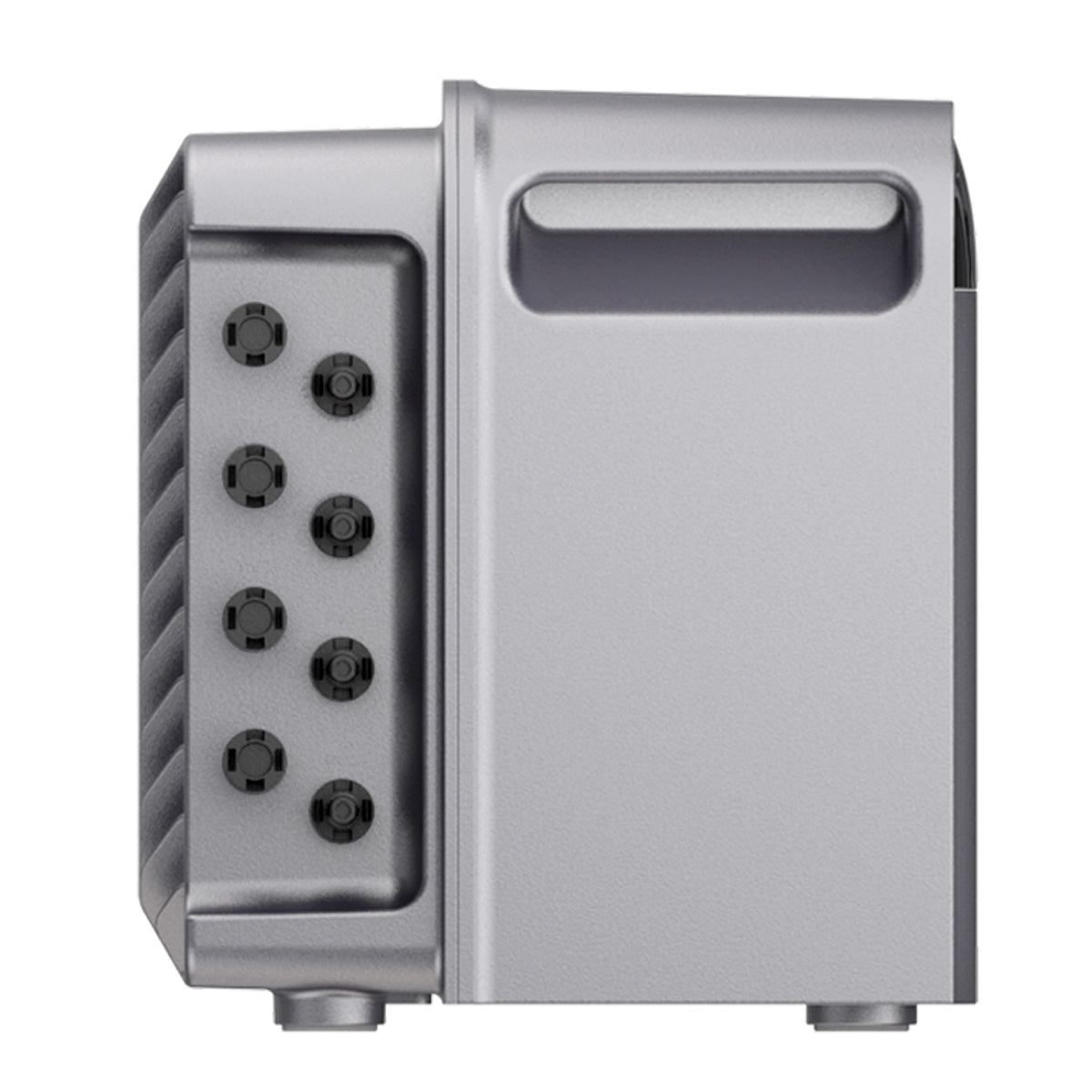

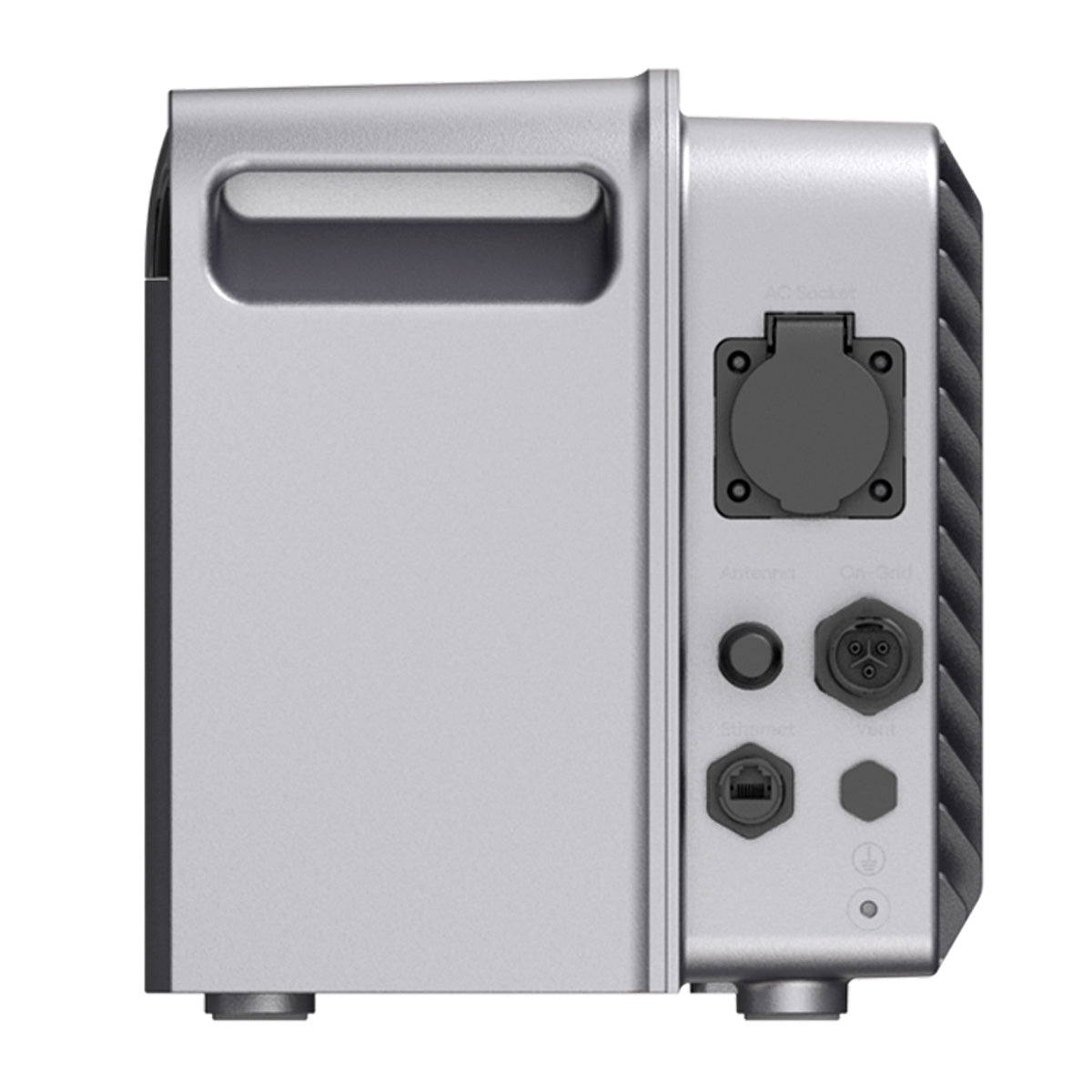

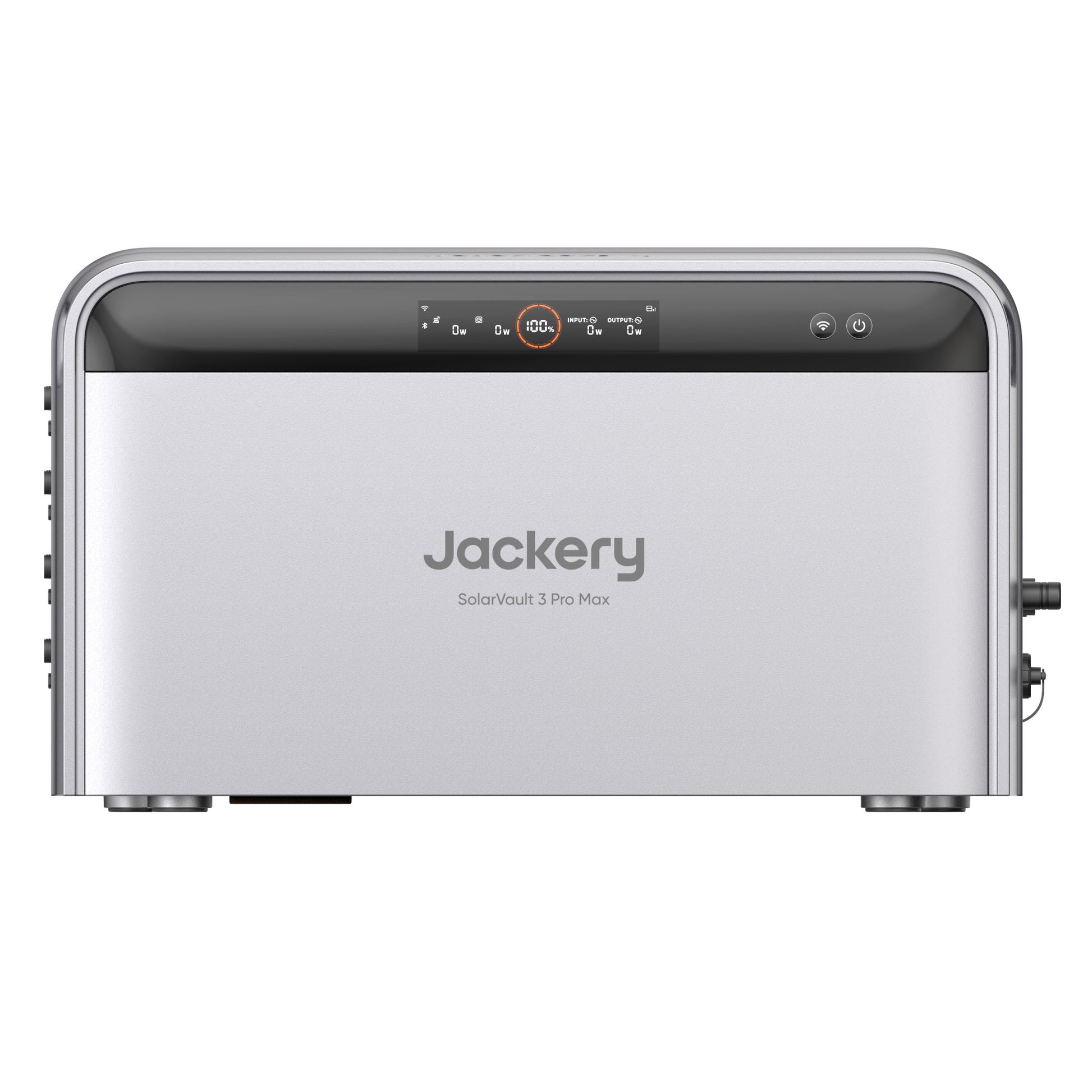

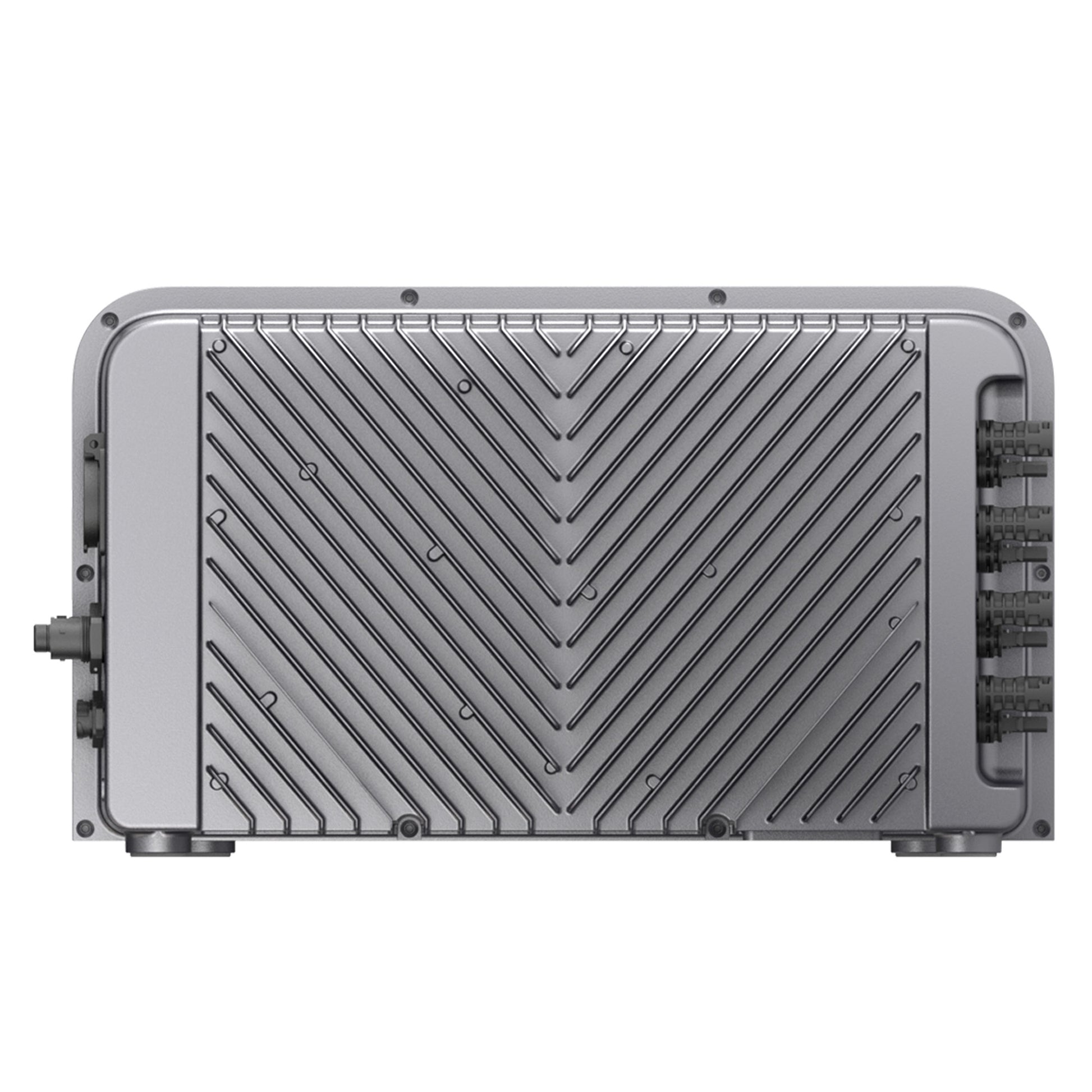

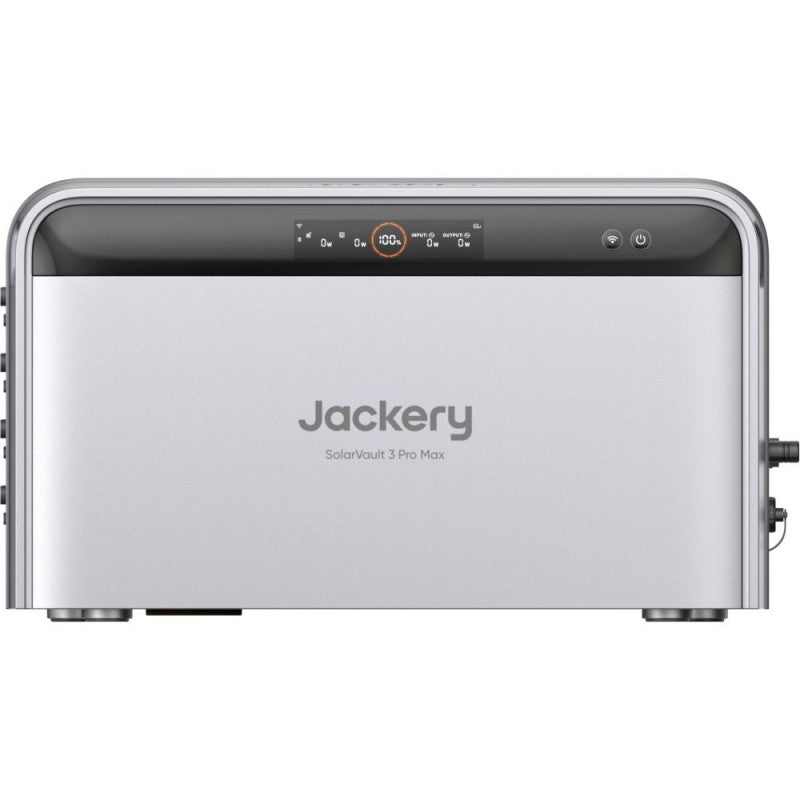

Jackery SolarVault 3 Pro Max Solar Battery with Free Base & Smart Meter
£1,099.00
£915.83 excl. VAT

Jackery SolarVault 3 Pro Max Solar Battery with Free Base & Smart Meter
About this product
Please note: This product must be hardwired and fitted by a qualified registered electrician.
The Jackery SolarVault 3 Pro Max Solar Battery is a part of a new generation of modular all-in-one solar storage systems. With integrated inverter and LiFePO4 battery technology, the series combines high PV performance, scalable storage, and intelligent energy management in one compact solution. The modular system starts at 2.52 kWh and can be expanded to 15.12 kWh to meet increasing household energy needs.
Designed for versatile integration, the SolarVault 3 Series enables seamless retrofit into existing PV (PhotoVoltaic or solar power system) installations without replacing modules or inverters. SolarVault 3 Pro Max provides up to 2,500 W AC coupling for higher demand. An integrated bypass function allows high-power appliances to operate directly from the grid, and in the event of a power outage, the system switches to backup mode within milliseconds. Excess solar power can be automatically captured and stored, increasing self-consumption without modifying the existing system.
AI-Powered Energy Management and Advanced Safety
At the core of the system is AI-based energy management that analyzes solar generation, consumption, battery status, and dynamic electricity tariffs in real time. Through integration with platforms such as Nordpool, Tibber, and Rabot, the system charges during low-price periods and discharges during peak tariffs to optimize energy costs.
Safety and durability are ensured through LFP battery cells, comprehensive protection mechanisms, temperature monitoring, aerosol fire suppression, and IP65-rated housing for operation from –20 °C to 55 °C. The Jackery app provides real-time monitoring and energy optimization features.
Specifications
General
Weight: 26.5 ± 0.5 kg
Dimensions: 485 × 248 × 282 mm
Ingress protection: IP65
Inverter topology: Isolation
Communications: Wi-Fi, Bluetooth, Ethernet
Warranty: 10 years
Pollution degree: III
Protection class: I
Overvoltage category: II (DC), III (AC)
Battery
Capacity: 2,520 Wh
Cell chemistry: LiFePO4
Cycle life: 6,000 cycles at 90% depth of discharge, with at least 70% state of health remaining
Max charge current: 46 A
Max discharge current: 48.8 A
DC input (PV1/2/3/4)
Max input power: 1,000 W × 4
Max input voltage: 60 V DC
Max input current (on-grid and off-grid): 28 A × 4
Max short-circuit current: 32 A × 4
Operating voltage range: 16–60 V DC
AC input/output (on-grid)
Max AC input power: 2,990 W (2,990 VA)
Max AC input current: 13 A
Max AC output power: 800 W | 2,500 W (800 VA | 2,500 VA)
Max AC output current: 3.5 A | 10.9 A
Grid voltage: 230 V AC, 50 Hz, L+N+PE
Power factor range: −0.8 to +0.8
Bypass mode max input: 2,990 W / 13 A
AC input/output (AC socket)
Max AC input power: 2,500 W (2,500 VA)
Max AC input current: 10.9 A
Max AC output power: 2,500 W (2,500 VA)
Max AC output current: 10.9 A
Operating voltage: 230 V AC, 50 Hz, L+N+PE
Power factor range: −0.8 to +0.8
Bypass mode max output: 2,990 W / 13 A
Environmental
Operating temperature: −20°C to 55°C
Operating humidity: 5% to 95% RH
