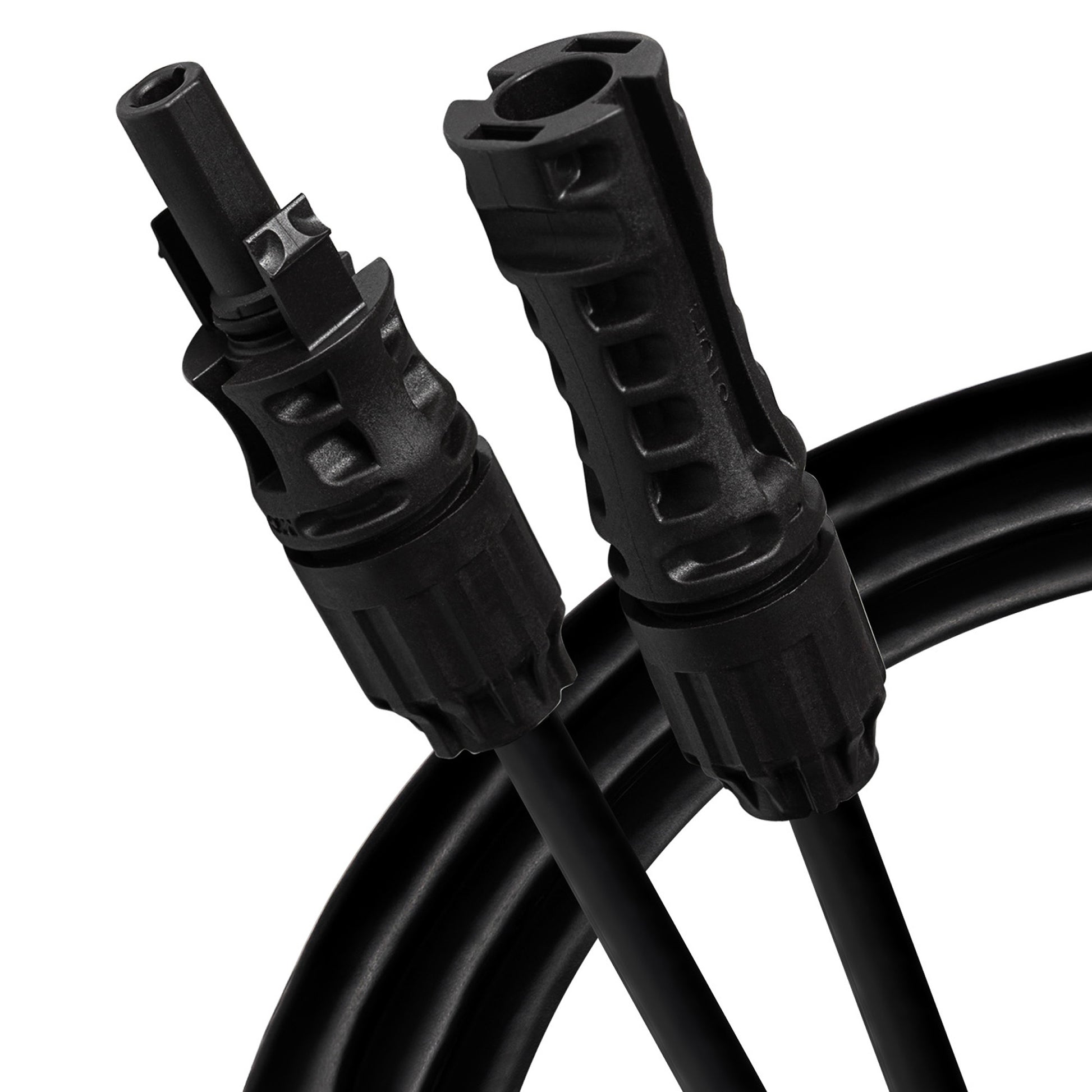

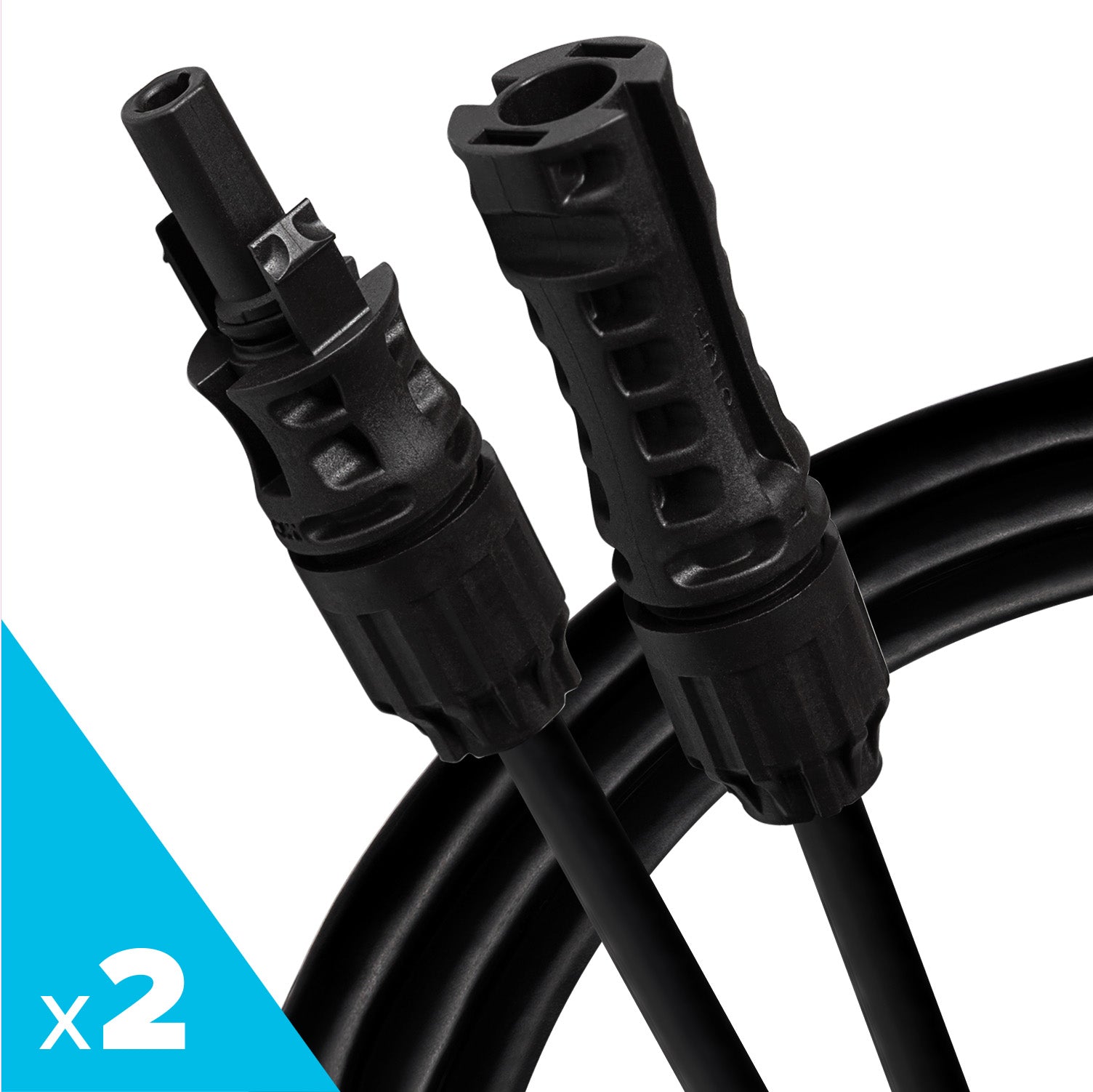

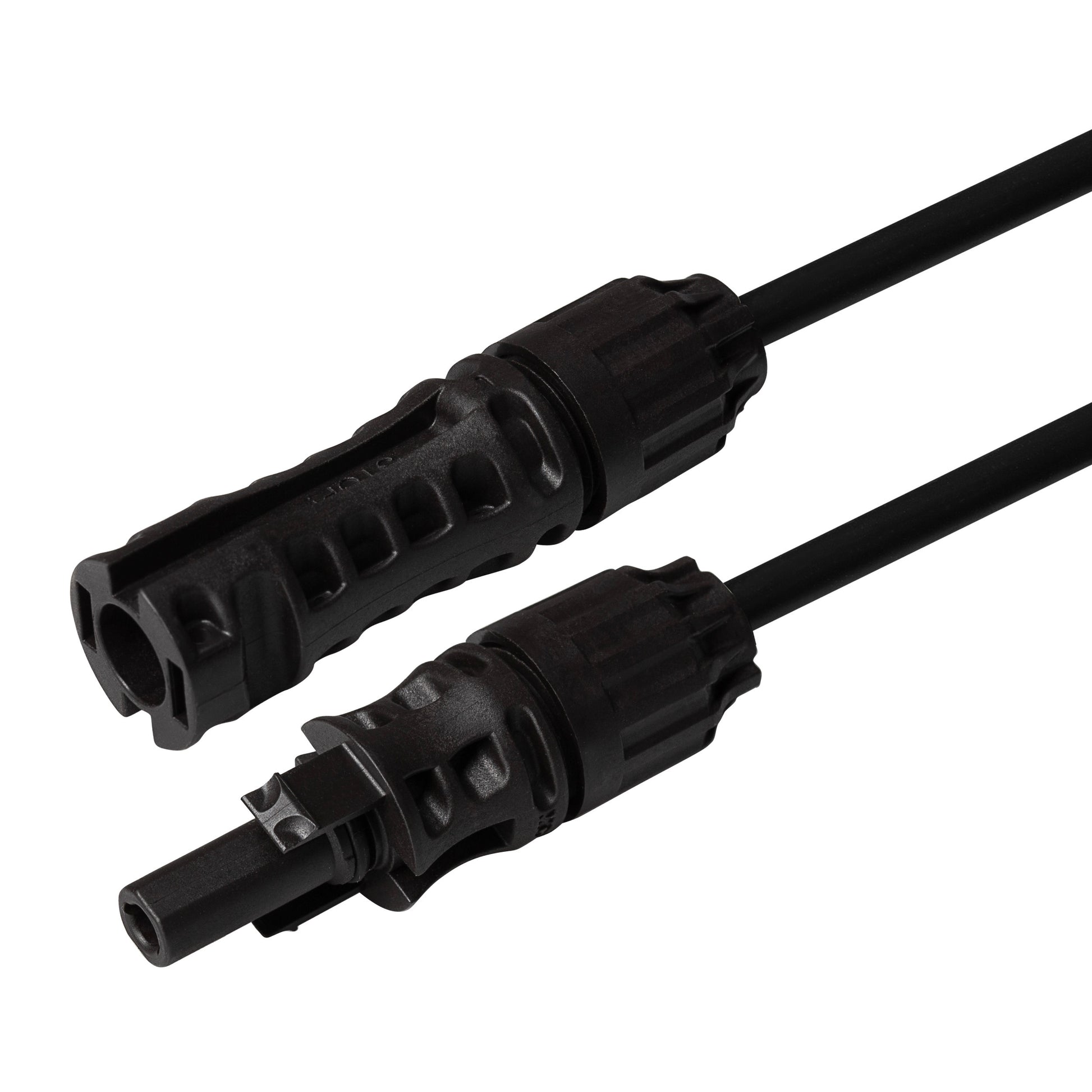

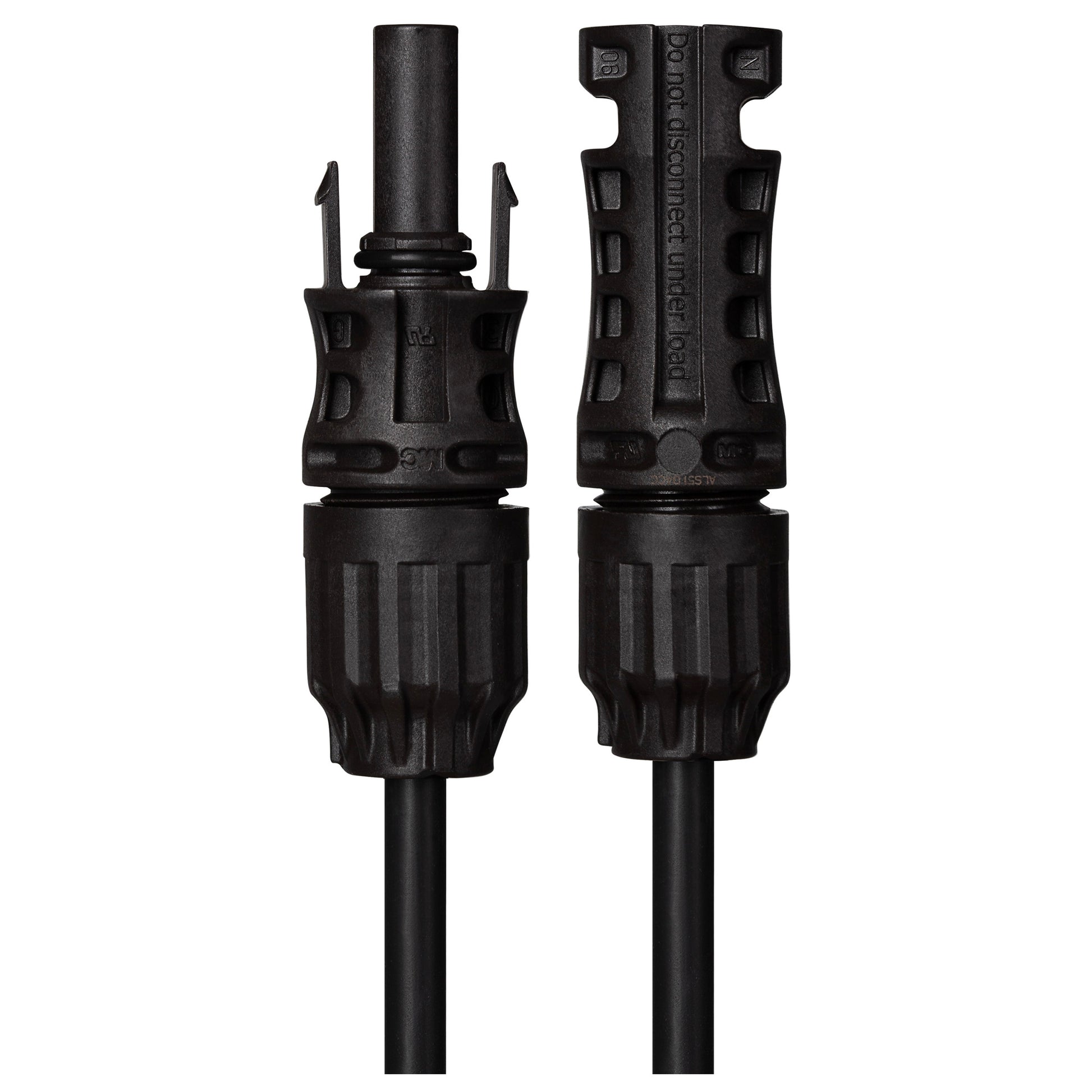

Staubli Pre-Crimped 4mm DC Cable with MC4 EVO 2-1 Connector - 10m
Staubli Pre-Crimped 4mm DC Cable with MC4 EVO 2-1 Connector - 10m
About this product
This Staubli Pre-Crimped 4mm DC Cable with MC4 EVO 2-1 Connector offers a PV connector with the easy-to-use snap-in technology. This photovoltaic DC connector is quick to install as it enables crimp-free assembly without the need for special tools.
The cable features a convenient crimp-free connection, meaning no crimping is necessary. The contact is made by an automatically closing spring clamp based on snap-in technology, providing a simple and efficient connection method. There are no individual parts to worry about, as the connectors are supplied complete and pre-screwed. Simply insert the stripped PV wire into the connector and screw on the housing – done! The connector is also mateable with the Original MC4 product portfolio, making it a versatile choice for photovoltaic installations and solar applications.
Specifications
Rated voltage: DC 1500 V
Rated current: 30 A
Type of connection: Spring clamp (tool-free connection)
Cable cross-sections: 4 mm2 and 6 mm2
Outer cable diameter: 5.4 – 7.6 mm
Ambient temperature range: -40 °C - +85 °C (IEC)
Upper limit temperature 115 °C (IEC)
Fire protection class: UL94-V0
Insulation material: PA
