UKSOL Plug-In Solar Pro Compact 515W Hybrid Mount Kit

Start generating your own solar energy with the UKSOL Plug-In Solar Pro Compact 515W Hybrid Mount Kit.

Designed to make home solar simpler and more accessible, this complete plug-in solar kit combines a high-efficiency 515W solar panel with an 800W smart microinverter, hybrid mounting frame and the connections you need to get started.

Simply position the panel in a sunny outdoor location, connect the system and plug it into a suitable outdoor socket. Once connected, the solar energy generated can be used within your home, helping to reduce the amount of electricity you need to draw from the grid.

The high-efficiency TOPCon N-Type solar panel uses a bifacial glass-glass module and delivers 23.2% module efficiency, helping you make the most of the available sunlight. The included smart microinverter features built-in Wi-Fi and Bluetooth, allowing you to connect to the smartphone app and monitor your system's performance.

Built for year-round outdoor use, the microinverter is IP67 waterproof rated, while the solar panel features a durable anodised aluminium frame and heat-strengthened glass construction.

With everything supplied as one convenient package and a 10-year British warranty, UKSOL Plug-In Solar Pro offers a straightforward way to start generating renewable energy at home.

What's Included

• 1 x 515W TOPCon N-Type Solar Panel (1960x1134x30mm)
• 1 x 800W Smart Microinverter
• Hybrid Mounting frame
• DC Cable
• 4m AC Cable
• Installation guidance

Please Note: For optimum performance, position the panel facing south where possible, ideally at approximately a 35° angle, and avoid shading.

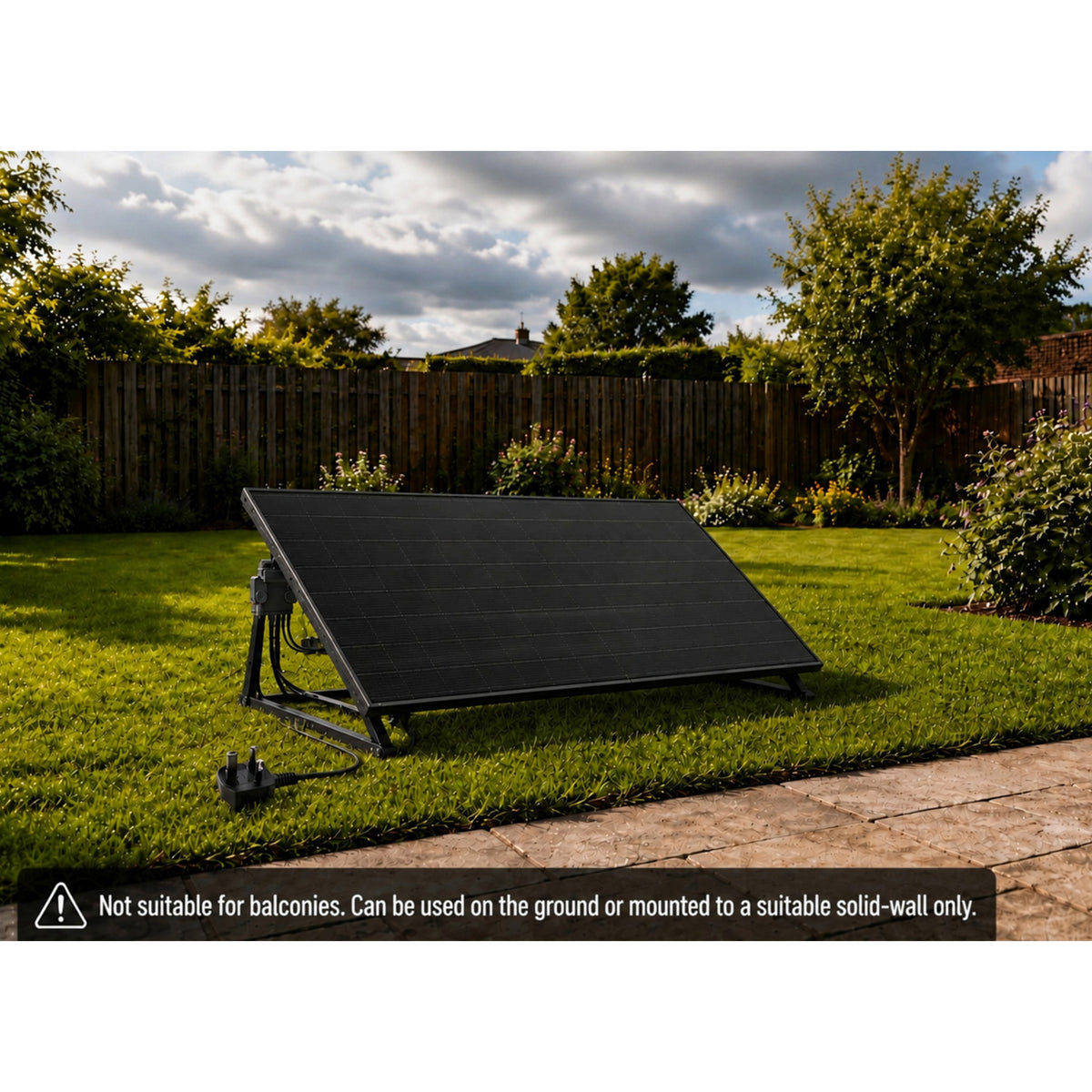

This product is not suitable for use on balconies. Can be used on the ground (ballasts required-not included) or mounted to a suitable-wall only.

Disclaimers

• Do not use extension leads or coiled cable reels – connect the system directly to a suitable outdoor UK socket-outlet. Extension leads, adapters and coiled cable reels may not be suitable for continuous use and can increase the risk of overheating or damage.
• Electrical installation suitability – plug-in solar kits must only be connected to a suitable UK socket-outlet on an appropriate final circuit. The electrical installation must be in good condition and have suitable circuit protection and residual-current protection.
• Electrical assessment required where uncertain – if the socket, final circuit, consumer unit, protective devices, wiring, earthing or general condition of the electrical installation is damaged, unclear, unsuitable or unknown, have it assessed by a qualified electrician before connecting the system.
• Changes to household electrics – any alterations to fixed household wiring, circuit protection, socket-outlets or the consumer unit must be carried out by a qualified electrician.
• Age of the electrical installation – there is no specific maximum age for the property or household wiring. Suitability depends on the condition and adequacy of the electrical installation.

Key Features

• Complete Plug-In Solar Kit – Everything you need to get started in one convenient package. Not suitable for balconies; can be used on the ground (ballasts required-not included) or mounted to a suitable-wall only.
• 515W High-Efficiency Solar Panel – Generate renewable electricity at home using a powerful 515W TOPCon N-Type panel.
• 23.2% Module Efficiency – High-efficiency cell technology helps maximise energy generation from the available sunlight.
• 800W Smart Microinverter Included – Converts the electricity generated by your solar panel into usable AC electricity for your home.
• Plug & Play Design – Connect the system to a suitable outdoor socket for a simpler approach to home solar.
• Wi-Fi & Bluetooth App Monitoring – Connect your microinverter to the smartphone app to monitor your solar system's performance.

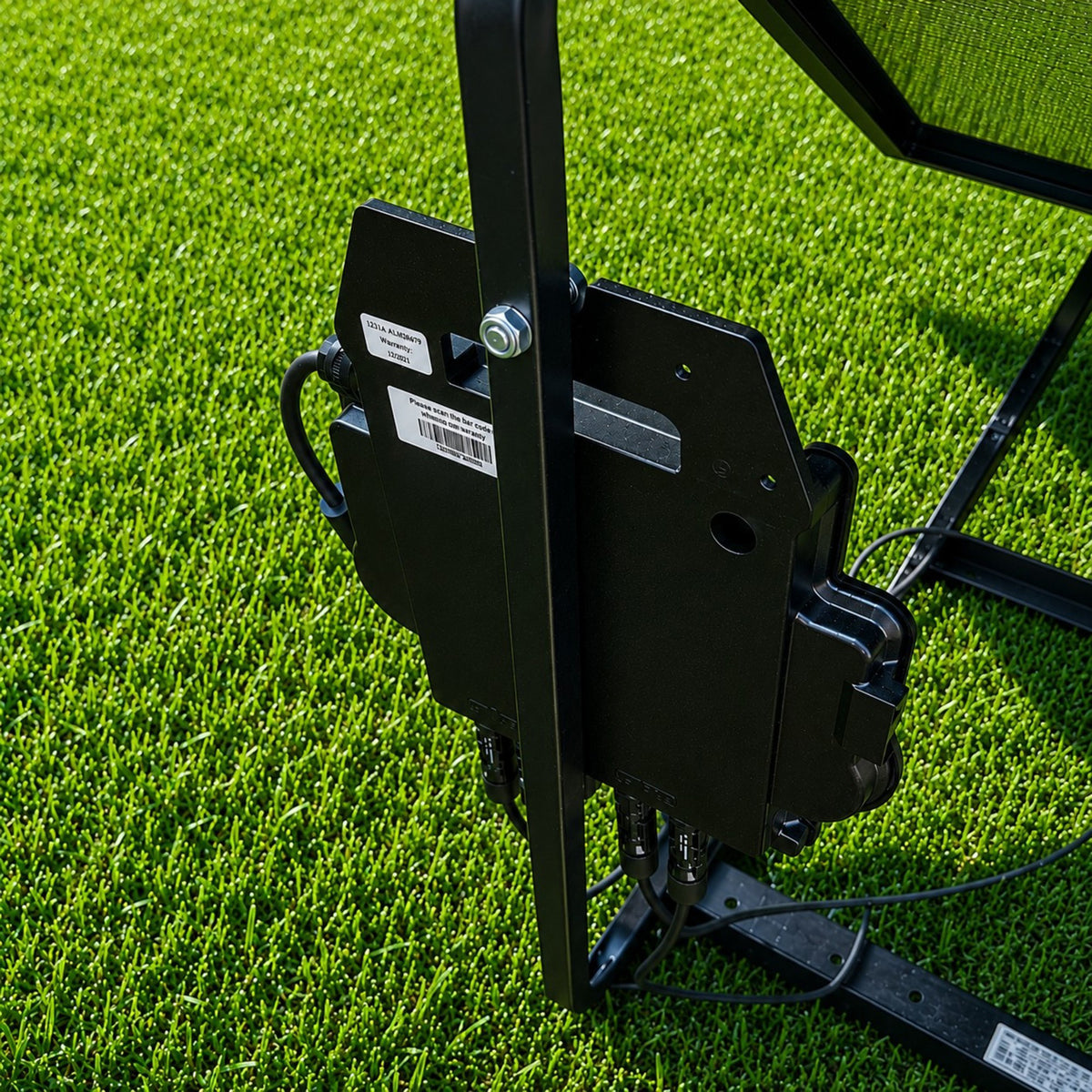

• IP67 Waterproof Microinverter – Designed to withstand outdoor conditions throughout the year.
• Bifacial Glass-Glass Panel – Durable panel construction with bifaciality of up to 80%.

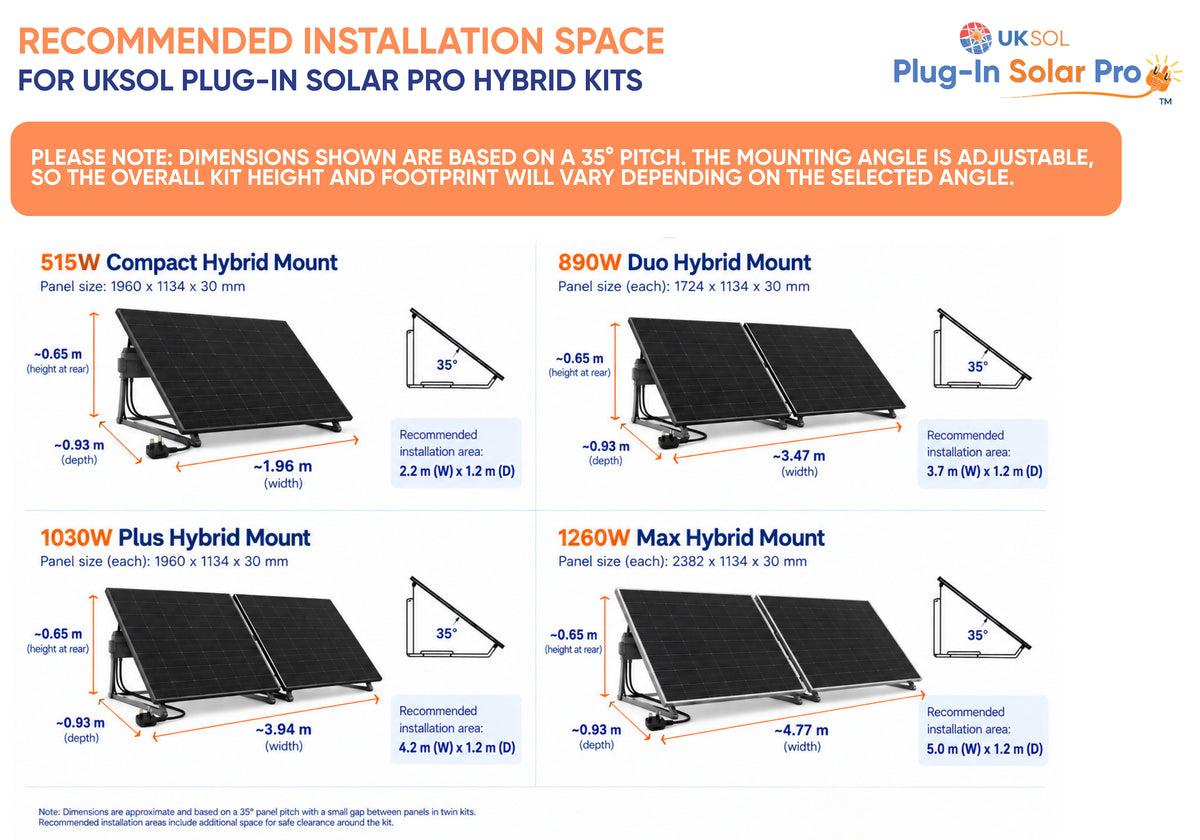

• Adjustable Mounting Angle – The mounting frame can be adjusted from 15° to 45° to help position the panel for effective solar generation.

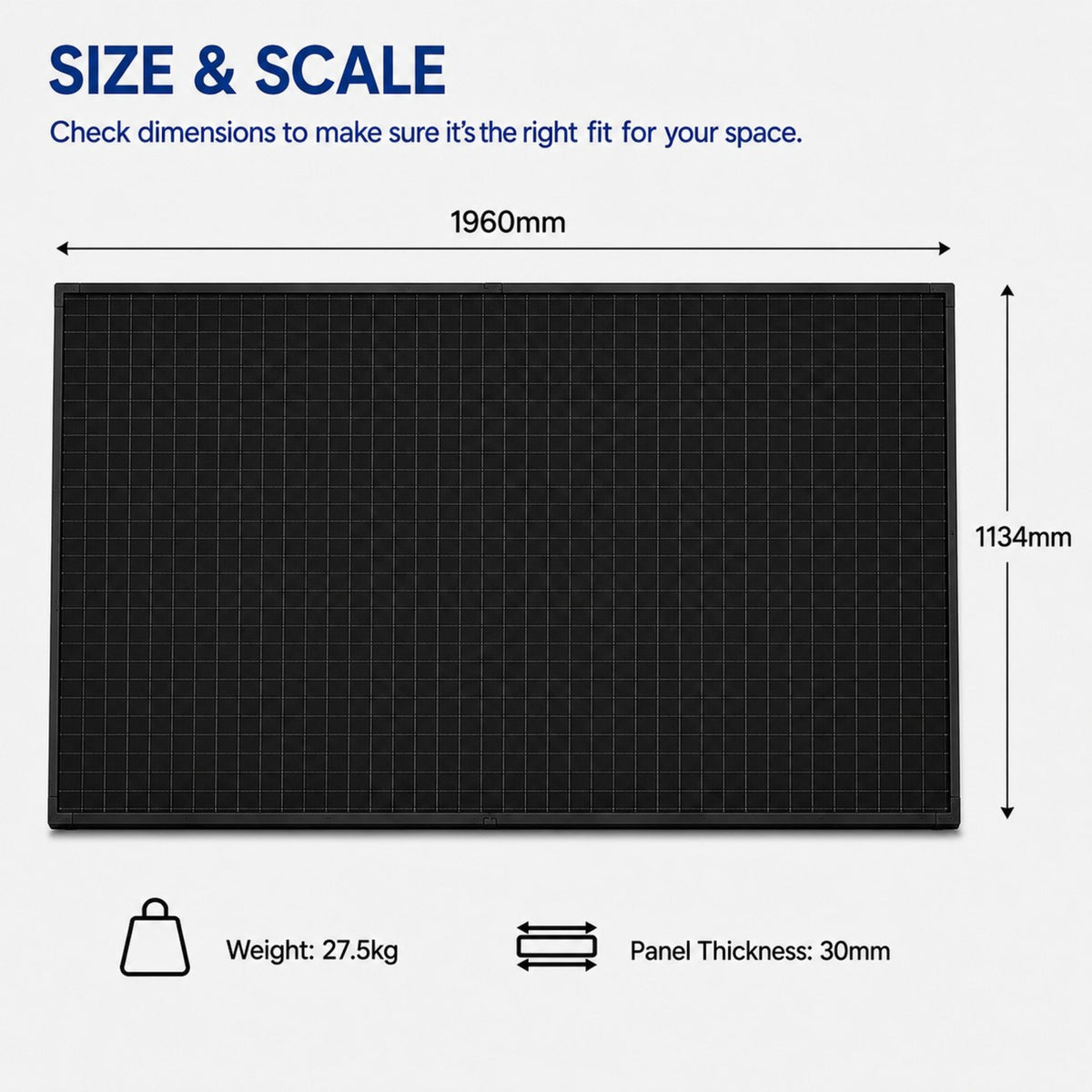

• All-Black Solar Panel – Modern black panel measuring 1960 x 1134 x 30mm.
• 10-Year British Warranty – Backed by UKSOL for added peace of mind.

Specifications
Solar Panel
Peak Power (PMax): 515W
Module Efficiency: 23.2%
Cell Type: TOPCon N-Type Monocrystalline
Cell Configuration: 108 cells
Panel Type: Bifacial glass-glass
Bifaciality: Up to 80%
Dimensions: 1960 x 1134 x 30mm
Weight: 27.5kg
Frame: 30mm anodised aluminium alloy
Front Glass: 2.0mm high-transmission AR-coated heat-strengthened glass
Back Glass: 2.0mm heat-strengthened glass (white grid glass)
Junction Box Rating: IP68
Maximum System Voltage: 1500V DC
Maximum Fuse Rating: 35A
Operating Temperature: -40°C to +85°C
Fire Rating: Class C

Panel Electrical Specifications
Voltage at Maximum Power (Vmp): 33.7V
Current at Maximum Power (Imp): 15.28A
Open Circuit Voltage (Voc): 40.3V
Short Circuit Current (Isc): 16.32A
Power Tolerance: 0 to +5W

Smart Microinverter Specifications
Microinverter Rating: 800W
Maximum Continuous Output: 799VA
MPPT Channels: 2 independent MPPTs
Recommended Solar Module Range: 300W–730W
Peak Efficiency: 96.7%
Communication: Built-in Wi-Fi & Bluetooth
Protection Rating: IP67
AC Output Voltage: 230V AC
AC Output Frequency: 50Hz
Maximum Output Current: 3.5A
Operating Temperature: -40°C to +65°C
Monitoring: Smartphone monitoring app
Warranty: 10-Year British Warranty
