UKSOL Plug-In Solar Pro Duo 890W Hybrid Mount Kit

Start generating your own solar energy with the UKSOL Plug-In Solar Pro Duo 890W Hybrid Mount Kit.

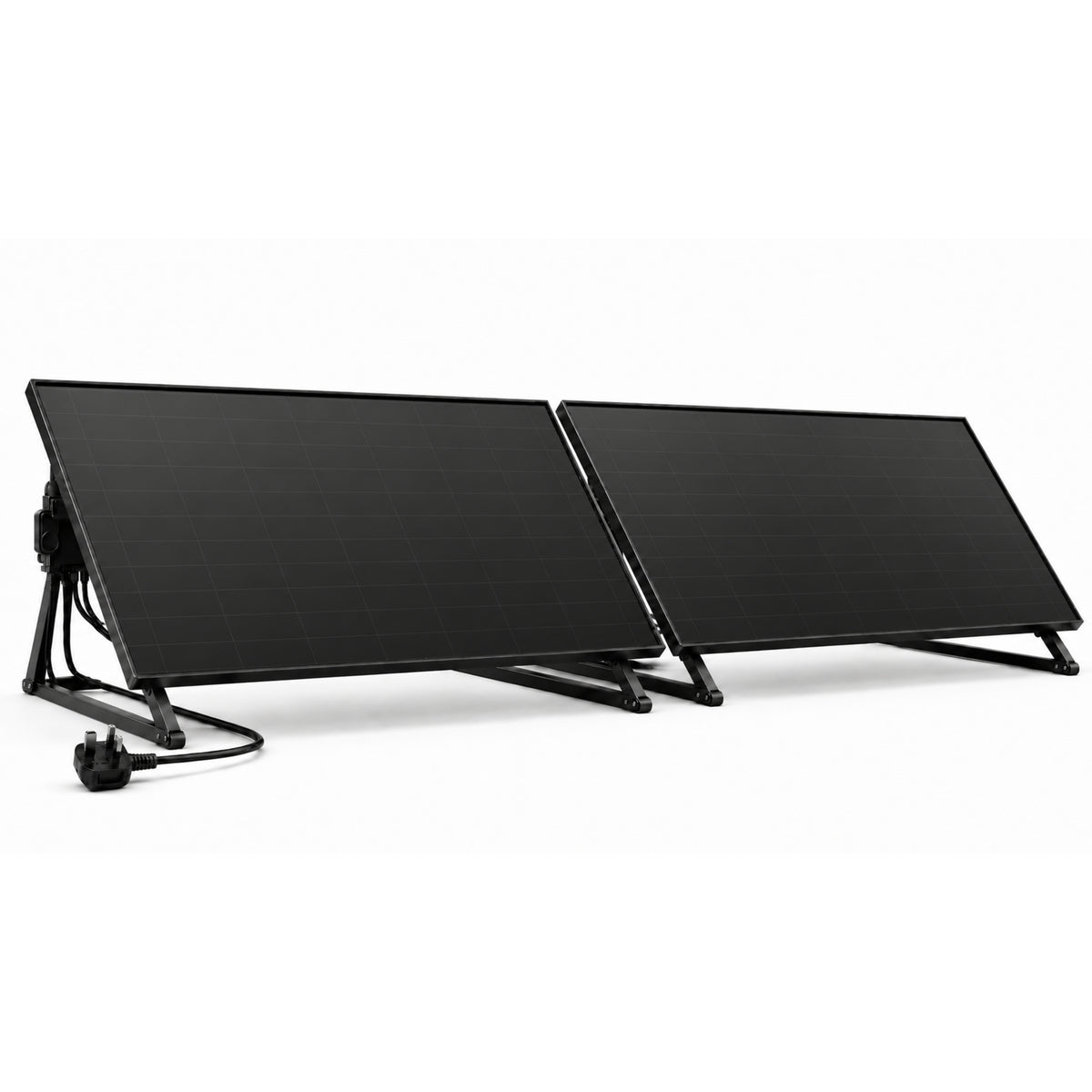

Designed to make home solar simpler and more accessible, this complete plug-in solar kit combines two high-efficiency 445W solar panels, providing 890W total panel capacity, with an 800W smart microinverter, adjustable hybrid mounting frames and the connections you need to get started.

Simply position the panels in a sunny outdoor location, connect the system and plug it into a suitable outdoor socket. Once connected, the solar energy generated can be used within your home, helping to reduce the amount of electricity you need to draw from the grid.

The high-efficiency TOPCon N-Type solar panels use bifacial glass-glass modules and deliver 22.3% module efficiency, helping you make the most of the available sunlight. The included smart microinverter features built-in Wi-Fi and Bluetooth, allowing you to connect to the smartphone app and monitor your system's performance.

Built for year-round outdoor use, the microinverter is IP67 waterproof rated, while each solar panel features a durable anodised aluminium frame and heat-strengthened glass construction.

With everything supplied as one convenient package and a 10-year British warranty, UKSOL Plug-In Solar Pro offers a straightforward way to start generating renewable energy at home.

What's Included

• 2 x 445W TOPCon N-Type Solar Panels (1762 x 1134 x 30mm per panel)
• 1 x 800W Smart Microinverter
• Adjustable hybrid mounting frame
• DC Cable
• 4m AC Cable
• Installation guidance

Please Note: For optimum performance, position the panels facing south where possible, ideally at approximately a 35° angle, and avoid shading.

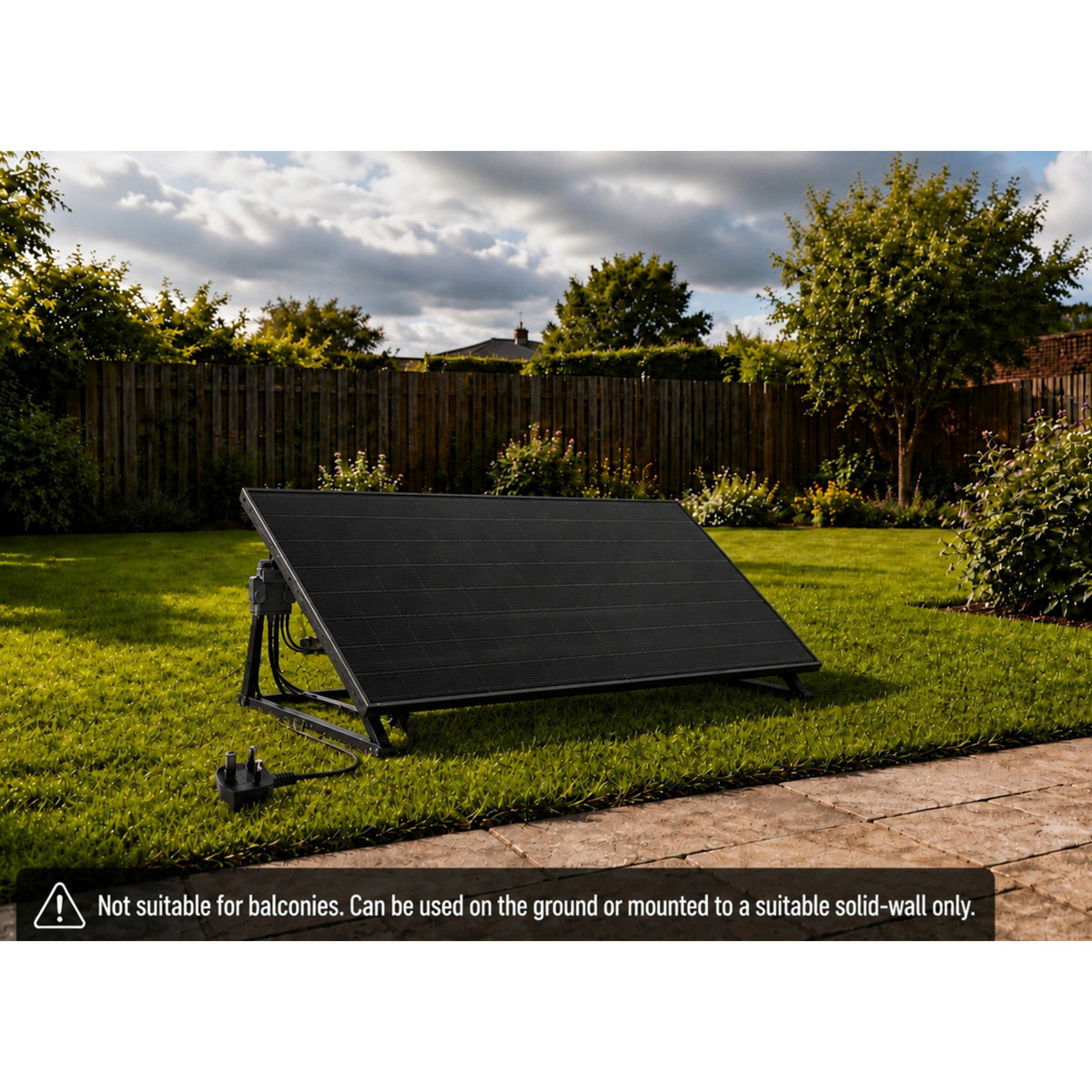

This product is not suitable for use on balconies. Can be used on the ground (ballasts required-not included) or mounted to a suitable-wall only.

Disclaimers

• Do not use extension leads or coiled cable reels – connect the system directly to a suitable outdoor UK socket-outlet. Extension leads, adapters and coiled cable reels may not be suitable for continuous use and can increase the risk of overheating or damage.
• Electrical installation suitability – plug-in solar kits must only be connected to a suitable UK socket-outlet on an appropriate final circuit. The electrical installation must be in good condition and have suitable circuit protection and residual-current protection.
• Electrical assessment required where uncertain – if the socket, final circuit, consumer unit, protective devices, wiring, earthing or general condition of the electrical installation is damaged, unclear, unsuitable or unknown, have it assessed by a qualified electrician before connecting the system.
• Changes to household electrics – any alterations to fixed household wiring, circuit protection, socket-outlets or the consumer unit must be carried out by a qualified electrician.
• Age of the electrical installation – there is no specific maximum age for the property or household wiring. Suitability depends on the condition and adequacy of the electrical installation.

Key Features

• Complete Plug-In Solar Kit – Everything you need to get started in one convenient package. Not suitable for balconies; can be used on the ground (ballasts required-not included) or mounted to a fence only.
• 890W Total Solar Panel Capacity – Two powerful 445W TOPCon N-Type solar panels provide a combined 890W capacity for generating renewable electricity at home.
• 22.3% Module Efficiency – High-efficiency cell technology helps maximise energy generation from the available sunlight.
• 800W Smart Microinverter Included – Converts the electricity generated by your solar panels into usable AC electricity for your home.
• Plug & Play Design – Connect the system to a suitable outdoor socket for a simpler approach to home solar.
• Wi-Fi & Bluetooth App Monitoring – Connect your microinverter to the smartphone app to monitor your solar system's performance.

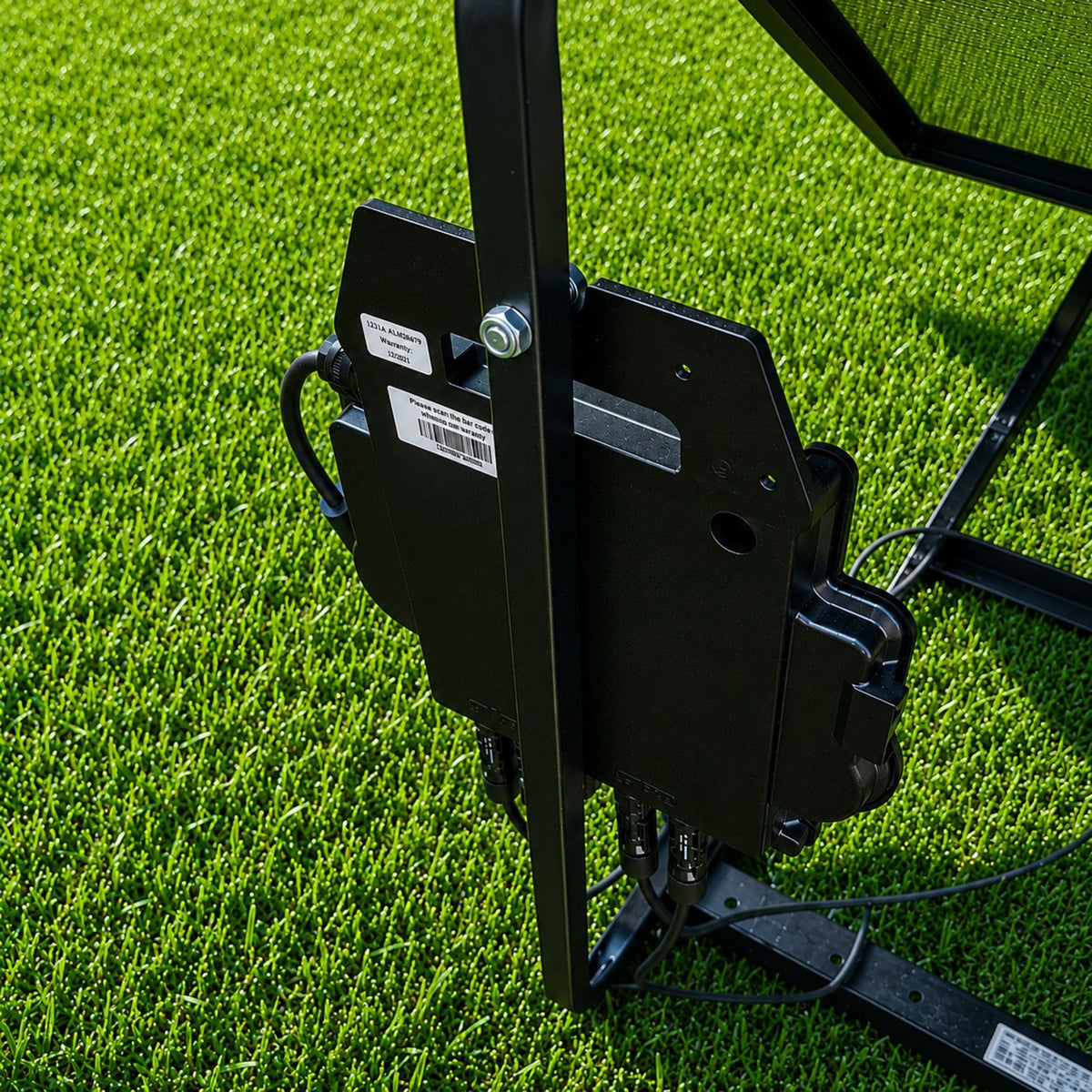

• IP67 Waterproof Microinverter – Designed to withstand outdoor conditions throughout the year.
• Bifacial Glass-Glass Panels – Durable panel construction with bifaciality of up to 80%.

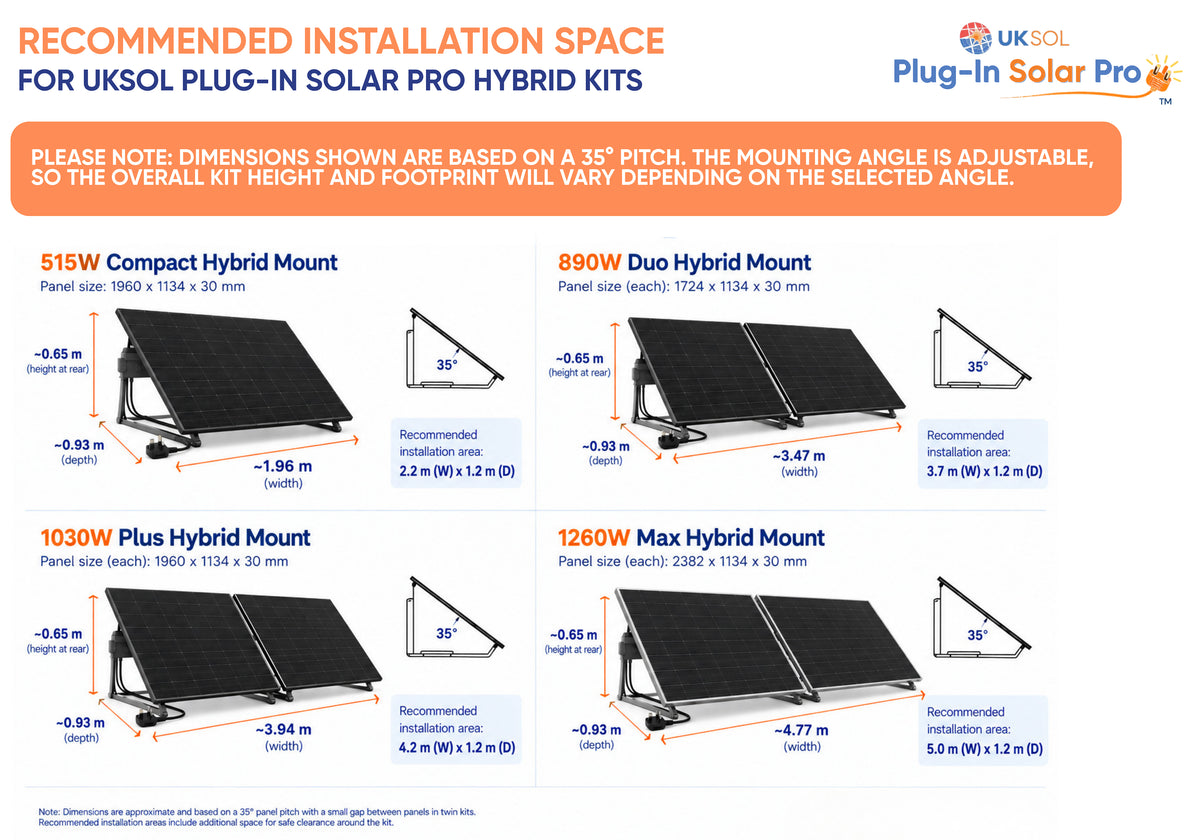

• Adjustable Mounting Angle – The ground-mount frames can be adjusted from 15° to 45° to help position the panels for effective solar generation.
• All-Black Solar Panels – Two modern black panels, each measuring 1762 x 1134 x 30mm.
• 10-Year British Warranty – Backed by UKSOL for added peace of mind.

Specifications
Solar Panels
Number of Panels: 2
Peak Power (PMax): 445W per panel / 890W total kit capacity
Module Efficiency: 22.3%
Cell Type: TOPCon N-Type Monocrystalline
Cell Configuration: 108 cells per panel / 216 total per kit
Panel Type: Bifacial glass-glass
Bifaciality: Up to 80%

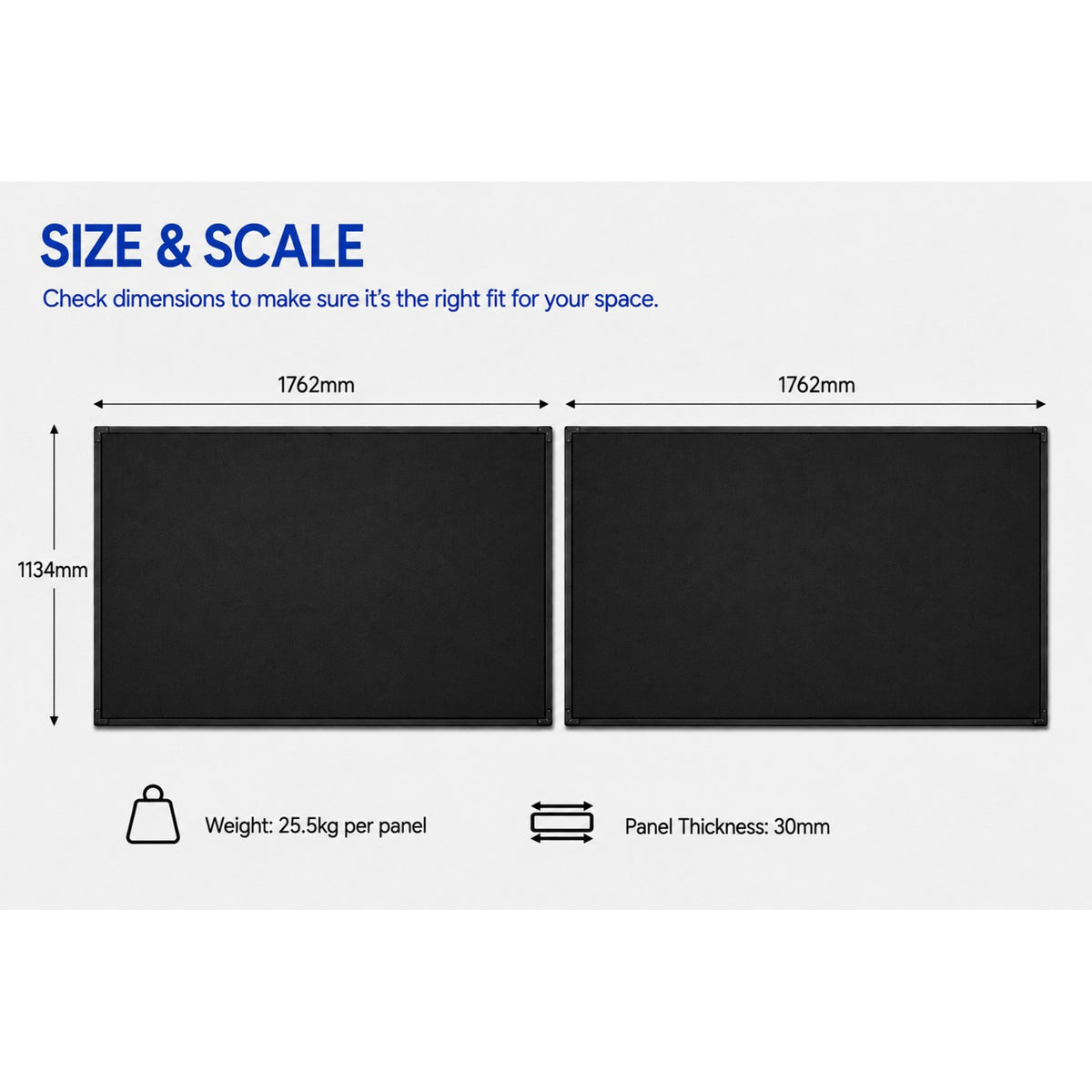

Dimensions: 1762 x 1134 x 30mm per panel
Weight: 25.5kg per panel
Frame: 30mm anodised aluminium alloy
Front Glass: 2.0mm high-transmission AR-coated heat-strengthened glass
Back Glass: 2.0mm heat-strengthened glass (white grid glass)
Junction Box Rating: IP68
Maximum System Voltage: 1500V DC
Maximum Fuse Rating: 35A
Operating Temperature: -40°C to +85°C
Fire Rating: Class C

Panel Electrical Specifications
Voltage at Maximum Power (Vmp): 33.0V
Current at Maximum Power (Imp): 13.49A
Open Circuit Voltage (Voc): 39.5V
Short Circuit Current (Isc): 14.01A
Power Tolerance: 0 to +5W

Smart Microinverter Specifications
Microinverter Rating: 800W
Maximum Continuous Output: 799VA
MPPT Channels: 2 independent MPPTs
Recommended Solar Module Range: 300W–730W
Peak Efficiency: 96.7%
Communication: Built-in Wi-Fi & Bluetooth
Protection Rating: IP67
AC Output Voltage: 230V AC
AC Output Frequency: 50Hz
Maximum Output Current: 3.5A
Operating Temperature: -40°C to +65°C
Monitoring: Smartphone monitoring app
Warranty: 10-Year British Warranty
